Automated Cantilever Rack with Telescopic Arms – Precision Storage for Industrial Tube Inventory

As Industry 4.0 reshapes logistics, even niche storage solutions like cantilever racking are evolving. The Automated Cantilever Rack with Telescopic Arms merges mechanical reliability with smart control systems to deliver unprecedented efficiency in industrial tube storage. Designed for high-volume facilities that demand speed, accuracy, and minimal human intervention, this system redefines how metal tubes, bars, and profiles are managed.

How Automation Enhances Traditional Cantilever Design

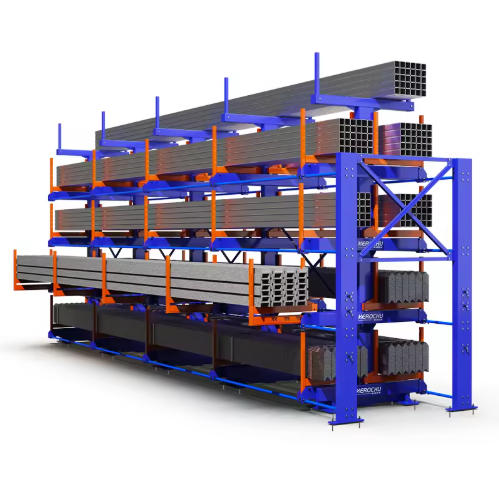

At its core, the system retains the classic cantilever structure—vertical columns with load-bearing arms—but integrates electric drive mechanisms powered by servo motors or hydraulic actuators. Controlled via a centralized panel or warehouse management system (WMS), the arms extend and retract on command, positioning tubes precisely for robotic arms or conveyor pickup.

The transmission system uses sprocket-chain assemblies linked to gear-rack converters, ensuring synchronized, vibration-free movement. Safety sensors halt operation if an obstruction is detected, while position encoders guarantee repeatable accuracy within millimeters.

Performance Specifications That Matter

• Load Capacity: Up to 5T per layer (customizable)
• Arm Extension: Full extension up to 12 meters
• Layers: 3–5 adjustable tiers
• Material: High-strength carbon steel with anti-corrosion coating
• Control Options: Manual override, PLC integration, remote operation

Applications Across Key Industries

This automated rack excels in environments where consistency and throughput are critical:

• Automotive: Storing drive shafts, exhaust tubes, and chassis components
• HVAC Manufacturing: Organizing copper and aluminum tubing
• Construction: Managing rebar, scaffolding tubes, and conduit
• Aerospace: Handling precision alloy bars with zero surface contact damage

Because each tube bundle remains fully accessible without manual repositioning, cycle times drop significantly—especially in batch processing or JIT (Just-in-Time) supply chains.

Safety and Ergonomics

Automation reduces worker exposure to heavy lifting and repetitive strain. The rolling protection devices and smooth-gliding rails eliminate jerky movements that could dislodge loads. Additionally, optional soft-close mechanisms prevent arm slamming during retraction.

Scalability and Integration

Facilities can start with a single automated bay and expand as needed. The system interfaces with existing ERP or WMS platforms, enabling real-time inventory tracking and predictive maintenance alerts.

Why Partner with Specialized Manufacturers?

Companies like Jinan Constant Storage Machinery don’t just sell racks—they deliver turnkey storage ecosystems. From laser-cut components to on-site commissioning, their vertically integrated model ensures quality control at every stage. Fast delivery and post-installation support make adoption seamless.

Conclusion

The Automated Cantilever Rack with Telescopic Arms is more than hardware—it’s a strategic asset for modern tube-intensive operations. By automating access and retrieval, it eliminates bottlenecks, enhances safety, and future-proofs warehouse infrastructure. In an era where every second counts, this system ensures your long materials are always ready, always secure, and always in the right place.
