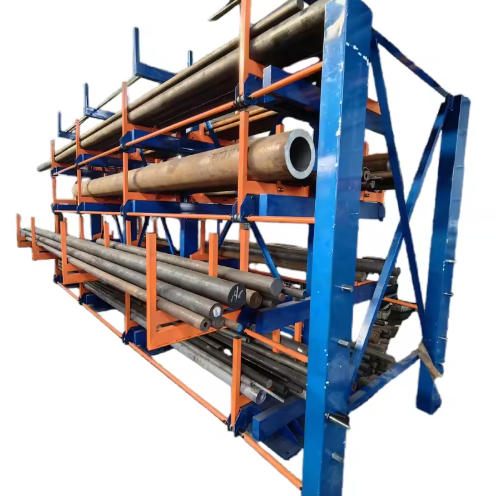

Aluminum/Steel Profile Roll-Out Cantilever Rack – Precision Storage for Fabrication Workshops
Available in 6m, 9m, and 12m configurations (models HC-G6053D through HC-G12055D), the system accommodates everything from short anodized bars to full-length structural members. Each layer supports up to 5 metric tons, yet remains adjustable in height to suit varying cross-sections—from slender 20mm channels to bulky I-beams. The arms themselves are lined with non-marring polymer inserts, preventing surface damage during repeated handling.
Aluminum/Steel Profile Roll-Out Cantilever Rack – Precision Storage for Fabrication Workshops
Aluminum/Steel Profile Roll-Out Cantilever Rack – Precision Storage for Fabrication Workshops
Fabricators know the pain of tangled aluminum extrusions or warped steel profiles leaning against walls like forgotten relics. Enter the Herochu Aluminum/Steel Profile Roll-Out Cantilever Rack—a purpose-engineered system that treats every meter of raw material as a precision component, not just bulk inventory.
Designed specifically for workshops specializing in window frames, curtain walls, automotive trim, or architectural metalwork, this rack features smooth-gliding, roll-out arms that extend fully outward for effortless loading and unloading. No more awkward lifting, no more scratched finishes. Operators simply pull the arm forward, place the profile, and slide it back into position—preserving both material integrity and worker ergonomics.
Available in 6m, 9m, and 12m configurations (models HC-G6053D through HC-G12055D), the system accommodates everything from short anodized bars to full-length structural members. Each layer supports up to 5 metric tons, yet remains adjustable in height to suit varying cross-sections—from slender 20mm channels to bulky I-beams. The arms themselves are lined with non-marring polymer inserts, preventing surface damage during repeated handling.
What sets Herochu apart is its dual-mode operation. Choose manual hand-crank telescoping for cost-sensitive setups, or upgrade to the electric variant for high-throughput environments where speed matters. The electric model integrates quiet, low-voltage motors with emergency stop functions and overload sensors—ensuring OSHA-compliant safety even during peak shifts.
Certified under CE, UE, and ISO 9001, every weld, bolt, and bearing undergoes rigorous QA testing. The frame’s geometry minimizes deflection under load, while the powder-coated finish resists coolant splashes, humidity, and workshop grime. Bilateral models offer balanced support for center-loaded materials, while unilateral units optimize corner or perimeter spaces—ideal for retrofitting into existing production lines.
Moreover, the system is modular by design. Need to add a fifth layer next quarter? Simply order additional upright extensions and arm sets—no need to replace the entire structure. This scalability protects your capital investment while accommodating business growth.
For fabricators tired of inefficient storage slowing down CNC workflows or causing costly material waste, Herochu delivers a turnkey solution that enhances throughput, reduces handling injuries, and elevates shop floor professionalism. Starting at $5,499, it’s not an expense—it’s a productivity multiplier.
FAQ
Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!
Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.
Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.
Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.
Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.
Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.
Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.
Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.
Q8: How do you ensure product quality?
Our quality assurance includes:
A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.
Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.
Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.
Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
Customer visit
Herochu has always been adhering to the market-centric approach to meet customer requirements to the maximum extent, and the business philosophy of “creating brands with heart and gaining reputation with sincerity”. It provides customers with high-quality products and services with rigorous military quality, professionalism, and excellence, and has won unanimous praise in the Chinese aerospace, Chinese weapons, Chinese railways, automobile manufacturing, engineering machinery, non-ferrous metal titanium alloy and other industries.
