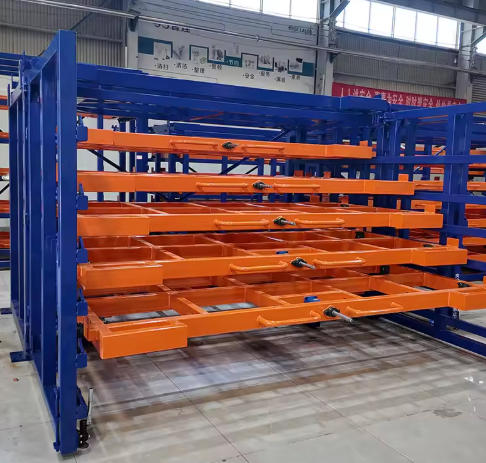

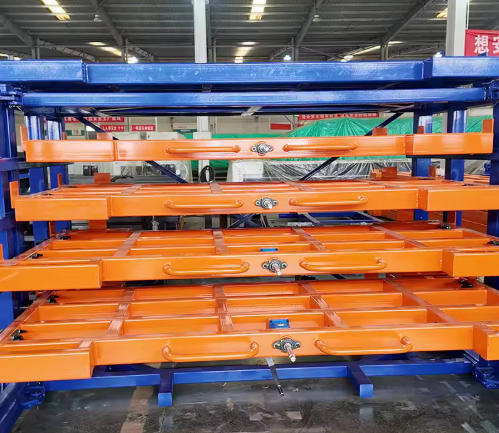

Adjustable Heavy Duty Warehouse Storage Rack with 5000kg Load Capacity per Layer

Warehouse managers face a persistent challenge: balancing storage density with accessibility. Fixed shelving wastes vertical space when storing mixed inventory sizes, while selective pallet racks require forklifts for every pick. The Heavy Duty Warehouse Storage Rack segment has evolved toward adjustable designs that accommodate changing inventory profiles. This article examines a high-capacity adjustable rack system engineered for steel service centers, automotive parts warehouses, and general manufacturing storage applications. The featured product combines structural strength with reconfigurable shelf positions, eliminating the need to purchase new racks when product dimensions change.

Heavy Duty Construction Overview
The foundation of any Heavy Duty Metal Sheet Rack Warehouse system lies in its frame design. This rack uses high-strength carbon steel with a minimum yield strength of 350 MPa. Upright frames are roll-formed from 2.5mm thick steel into a closed C-section profile that resists bending in both front-to-back and side-to-side directions. Cross braces between uprights use X-pattern bracing made from 2.0mm steel angles, creating a rigid structure that prevents racking (parallelogram distortion) under uneven loads. The base plate incorporates four adjustable leveling feet that compensate for floor irregularities up to 25mm. Each foot has a 100mm diameter pad to distribute point loads and prevent concrete spalling.

Exceptional Load Capacity
Standard industrial shelving typically supports 500-1000 kg per shelf. This Adjustable Heavy Duty Rack achieves 5000 kg (5 tons or 11,000 lbs) per layer – five to ten times greater capacity. Achieving this rating required engineering improvements beyond simply using thicker steel. The shelf beams incorporate a box section design with internal stiffeners. Beam-to-upright connections use a three-point locking mechanism: a top hook, bottom hook, and side safety pin. This connection distributes the vertical load across 150mm of upright surface area, preventing the localized crushing failure common with cheaper racks. Load testing confirms less than 1mm of beam deflection at full 5-ton capacity, which means stored items remain level and stable.

Adjustable Shelf Design
The defining feature of this product line is its fully adjustable shelving system. Shelf beams attach to the uprights at 50mm vertical increments, providing fine-tuning ability for different product heights. A warehouse storing engine blocks one month and exhaust systems the next can reconfigure shelf positions without tools – simply lift the safety pin, slide the beam upward, and reinsert the pin. Each beam includes a visual position indicator that confirms proper engagement with the upright’s keyhole slots. For high-turnover areas, operators can set shelf spacing just 10mm taller than the tallest stored item, maximizing the number of shelves within a given building height.

Anti-Rust Powder Coating
Industrial warehouses expose racks to moisture from condensation, washdown procedures, and leaking roofs. The Anti-Rust Powder Coating applied to all steel components provides a durable barrier. The coating process follows automotive-grade standards: pretreatment includes iron phosphate wash, reverse osmosis rinse, and a non-chrome sealer. The powder material uses a TGIC-free polyester formulation that resists yellowing under UV light – important for racks located near loading dock doors. Curing occurs at 200°C for 20 minutes, creating a cross-linked surface that withstands impact from forklifts and pallet jacks. Coating thickness averages 80 microns on exposed surfaces and 50 microns on hidden interior surfaces. This treatment allows the rack to operate for 10+ years in unheated warehouses without rust perforation.

Modular Expandable Design
Warehouse storage needs rarely remain constant. Adding new product lines or seasonal inventory spikes often requires additional capacity. The Modular Expandable Design of this rack system addresses this reality. Individual rack bays connect side-by-side using shared upright columns. A typical configuration starts with three bays – each bay measuring 2700mm wide, 1200mm deep, and 4000mm tall. When additional capacity becomes necessary, operators add a fourth bay by bolting new uprights to the existing frame and installing additional beams. No demolition or relocation of existing stored goods required. For facilities with changing ceiling heights, the upright sections come in 1000mm, 1500mm, and 2000mm modules that stack together. Starting with a 3000mm tall rack, adding a 1000mm extension module increases capacity by 33% without replacing the base.

Integrated Safety Features
High-capacity racks introduce safety risks if not properly designed. This product incorporates multiple safety systems. Each shelf beam includes a retention lip that prevents pallets from sliding off the front during forklift placement. Rear crossbars spaced at 600mm intervals stop items from falling out the back. Upright frame footplates have pre-drilled anchor holes – floor anchors are included with every rack and required for installations above 2500mm height or with seismic activity risk. Additionally, the rack system accepts optional safety accessories: column protectors (heavy-gauge steel sleeves that wrap around the lower 500mm of uprights), wire decking (replaces solid shelves for sprinkler water penetration), and end-of-aisle netting (prevents items from rolling off the ends).

Installation and Quality Assurance
The manufacturer provides on-site installation and debugging services through a team of over 40 technical engineers. The installation process begins with a site survey to verify floor flatness, overhead clearance, and seismic zone classification. Anchor bolt locations are marked using a laser layout tool. After drilling and setting anchors, each upright gets leveled independently before torquing the bolts to 150 Nm. Beam installation follows a specific sequence that pre-stresses the frame for stability. Final steps include load testing of randomly selected shelves using calibrated hydraulic jacks and deflection gauges. The quality control department, certified to ISO9001, audits each installation and provides a signed completion certificate.

Customization and Ordering
Standard sizes cover most applications, but the manufacturer offers complimentary design services for unique requirements. Customers provide the type, dimensions, and quantity of materials to store, along with any special conditions (seismic zones, cleanroom requirements, explosive atmospheres). The engineering team responds with CAD drawings, load calculations, and a bill of materials. Minimum order quantity is one unit – the factory accepts single-rack orders for small workshops. Larger projects receive volume discounts, typically 5% for 5-9 units, 10% for 10-19 units, and 15% for 20+ units. Payment terms include 30% deposit with balance due before shipment, or letter of credit for international first-time buyers.

Conclusion
The adjustable heavy duty warehouse rack with 5-ton per layer capacity provides a future-proof storage solution for industrial operations. Its combination of structural strength, modular expandability, and corrosion-resistant coating delivers long service life even in harsh environments. Direct manufacturing, global installation support, and flexible order quantities make this rack accessible to operations of any size. For warehouses seeking to maximize vertical storage while maintaining reconfigurability, this system represents a practical, certified solution.
