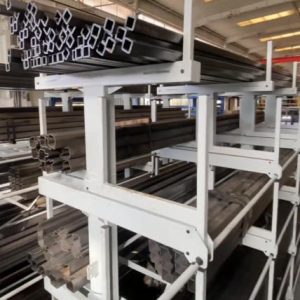

Automated Storage System for Storing Pipe Processing Machines

Space-Saving Electric Telescopic Rack | Smart Control Heavy Duty Storage

Adjustable Cantilever Racking System for Long Pipes – Precision Storage in Industrial Warehouses

Storing long pipes—whether steel, PVC, HDPE, or copper—presents unique logistical hurdles. Coiling isn’t always feasible, and stacking on the floor invites damage, tripping hazards, and inefficient space use. The answer lies in a purpose-engineered Adjustable Cantilever Racking System for Long Pipes, designed to bring order, safety, and density to industrial pipe storage.

Adjustable Cantilever Racking System for Long Pipes – Precision Storage in Industrial Warehouses

Our Heavy Duty Adjustable Cantilever Racking features horizontally mounted arms that cradle pipes securely, preventing rolling, warping, or surface marring. The arms are infinitely adjustable in 100mm increments (50mm optional), allowing precise spacing to match pipe diameters and bundle widths. This adjustability is crucial when managing diverse inventories—from ½-inch electrical conduits to 24-inch water mains.

Constructed from high-strength Q235B steel, each rack withstands dynamic loads encountered during forklift handling. Columns are reinforced with diagonal bracing to resist lateral forces, while base plates are pre-drilled for floor anchoring—essential for seismic zones or high-traffic areas. Surface treatment includes industrial-grade powder coating (standard) or hot-dip galvanization for outdoor pipe yards exposed to rain or salt air.

Typical configurations for pipe storage include:

Double-sided racks: W1200 × D2000 × H3000mm with 4 arm levels
Arm length: 1200–1500mm to support 6m+ pipe sections
Load capacity: 500kg/arm for medium-weight steel pipes; 700kg for dense HDPE bundles

The open-front design enables side-loading via forklift forks or overhead cranes, eliminating the need to lift pipes vertically—a major ergonomic advantage. Additionally, optional rubber arm caps protect pipe finishes during storage, critical for architectural or plumbing applications where surface integrity matters.

Why choose cantilever over alternatives like A-frames or ground stacking?

Density: Store 3–5 pipe layers vertically in the same footprint as one ground stack
Accessibility: Retrieve any bundle without moving others
Inventory control: Clearly visible SKUs reduce picking errors
Safety: No manual lifting or unstable piles

Real-world applications span:

Oil & gas: Casing, tubing, and line pipe storage
Plumbing wholesalers: Copper, PEX, and CPVC in varied lengths
Irrigation suppliers: Polyethylene coils and aluminum laterals
Construction sites: Temporary staging of conduit and structural tubing

Our engineering support goes beyond hardware. We analyze your pipe diameter range, average bundle weight, and turnover rate to recommend optimal arm spacing and column height. Need to store 10-foot and 20-foot pipes in the same bay? Our system accommodates mixed lengths through strategic arm placement.

For facilities prioritizing lean inventory practices, this racking system integrates seamlessly with barcode scanning and warehouse management software (WMS), enabling real-time tracking of pipe lots by location, grade, or heat number.

In conclusion, the Adjustable Cantilever Racking System for Long Pipes transforms chaotic pipe yards into organized, high-throughput storage hubs. It’s not just about holding pipes—it’s about optimizing your entire material flow.
