In modern
industrial warehouses, the
efficient storage of
long,
heavy materials such as
pipes,
bars, and
sheet metal has always been a key challenge for logistics and storage managers. Irregular shapes, large lengths, and heavy weights make traditional
storage solutions ineffective, leading to wasted space, low operational
efficiency, and even potential
safety hazards. To address these pain points, our 6-Level
Pipe Cantilever Structure with
2.5 Meters Long Arms and
Steel Pipe Rack Design Capable of Supporting Approximately 700 kg Per Level has been engineered to redefine long-material storage standards. This
premium pipe racking system combines
robust construction, thoughtful
design, and practical functionality to meet the demanding needs of
industrial storage environments, making it an ideal choice for warehouses,
manufacturing facilities, and construction
material yards that require reliable,
high-density storage for
long pipes and similar items.

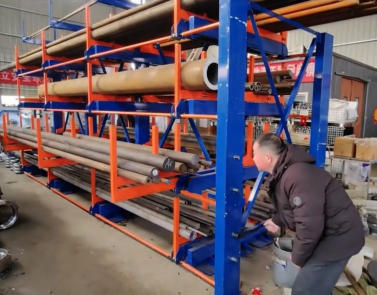

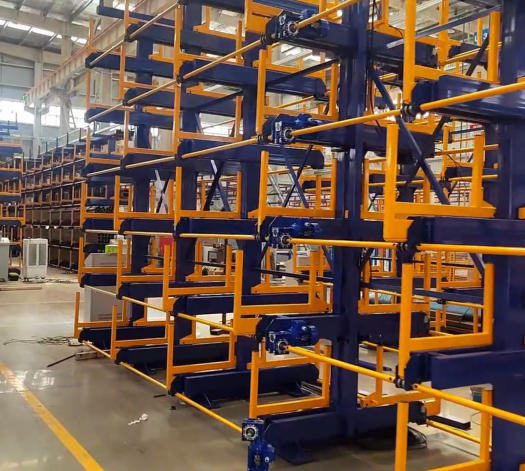

First, let’s delve into the core structure and design highlights of this 6-level
pipe cantilever structure, which is specifically optimized for storing long pipes with its 2.5-meter-long cantilever arms. Unlike traditional
storage racks that rely on
vertical beams and
horizontal shelves, our
cantilever rack features a unique cantilever structure that extends forward, eliminating the need for front columns that would block access to stored materials. This design not only ensures unobstructed access for
forklifts and cranes but also maximizes the use of available space, especially in warehouses where
vertical and horizontal space is at a premium. The 6-level configuration is carefully designed to utilize vertical space efficiently, allowing you to
store more materials without expanding the
warehouse footprint— a critical
advantage for businesses looking to
optimize storage
capacity without incurring additional rental or construction costs.
The
steel pipe rack design of this system is engineered to support approximately 700 kg per level, making it a
heavy-duty solution suitable for even the heaviest long pipes, bars, and
sheet metal. We use
high-quality carbon steel as the primary material, which is known for its exceptional strength, durability, and resistance to wear and tear. The
carbon steel undergoes a strict quality control process to ensure it meets industry standards, including
CE and ISO
certifications, guaranteeing reliable performance in harsh
industrial environments. The cantilever arms are made of thickened carbon steel with a shelf thickness ranging from 3.3 mm to 4 mm, providing the
structural integrity needed to bear
heavy loads without bending or deformation. Additionally, the upright columns are constructed with high-strength H-columns, which offer superior stability and load-bearing capacity compared to standard columns, ensuring the entire
rack system remains
stable even when fully loaded with
heavy materials.
One of the key
advantages of this
pipe cantilever structure is its adjustability, which allows it to accommodate a wide range of pipe diameters, lengths, and weights. The cantilever arms can be adjusted in 100mm to 150mm increments, making it easy to customize the storage space according to the specific dimensions of your materials. Whether you need to store small-diameter pipes, large-diameter industrial pipes, or
long steel bars, this
adjustable heavy-duty
storage system can be tailored to meet your needs. The 2.5-meter-long cantilever arms are specifically designed to handle long pipes, ensuring that even the longest materials are fully supported and stable, reducing the risk of damage or accidents. Moreover, the rack can be configured as
single-sided or
double-sided, providing flexibility to adapt to different
warehouse layouts and storage requirements. Single-sided
racks are ideal for placing against warehouse walls,
maximizing wall space utilization, while double-sided racks are perfect for open warehouse areas, allowing access from both sides and further increasing
storage efficiency.
Surface treatment is another critical aspect of our 6-level pipe cantilever structure, ensuring long-term durability and resistance to
corrosion. We use a high-quality powder coating or epoxy electrostatic powder coating process, which creates a smooth, even finish that is resistant to scratches, chips, and corrosion. This surface treatment not only enhances the appearance of the rack but also protects it from the harsh conditions often found in
industrial warehouses, such as humidity, dust, and chemical exposure. The coating is available in a range of colors, including blue, black, white, and
customized colors to match your warehouse decor or branding requirements. Additionally, the rack can be equipped with wood boards or steel gratings, making it particularly suitable for small and low-density warehouses where
management is convenient and visibility is clear. The wood boards or steel gratings provide a stable surface for storing smaller items or materials that require additional support, expanding the versatility of the rack system.
Safety is a top priority in any industrial storage environment, and our 6-level pipe cantilever structure is designed with multiple safety features to ensure the safety of personnel and materials. The cantilever arms are equipped with a pin-lock system to prevent accidental dislodgement, ensuring that the arms remain securely in place even when loaded with heavy materials. Additionally, the rack is equipped with safety end-stops on the cantilever arms, which prevent pipes or other materials from
sliding off the ends of the arms, reducing the risk of damage or injury. The base of the rack features large footplates that distribute the weight evenly across the floor, ensuring stability and preventing the rack from tipping over. The entire rack system is also designed to be
compatible with forklifts and cranes, allowing for
safe and efficient
loading and unloading of materials. The open design of the cantilever rack ensures that operators have clear visibility of the stored materials, reducing the risk of accidents during loading and unloading.
This pipe cantilever structure is widely used in various industries, including mechanical
processing,
building materials supermarkets, construction sites, and industrial warehouses. In the mechanical processing industry, it is used to store long
steel bars, pipes, and other
raw materials, ensuring easy access and efficient management. In building materials supermarkets, it is ideal for storing construction materials such as pipes,
rods, and sheet metal, allowing customers to easily view and access the products. In construction sites, it provides a temporary
storage solution for materials needed on-site, ensuring that materials are
organized and easily accessible, improving work efficiency. Additionally, the rack is suitable for warehouses that store unstandardized or long rod materials, as it can greatly improve storage efficiency and work efficiency compared to traditional storage methods.
When it comes to installation and maintenance, our 6-level pipe cantilever structure is designed to be user-friendly and cost-effective. The rack uses a screw assembly method, which is simple and straightforward, allowing for quick and easy installation without the need for specialized tools or
equipment. Our team of
professional technicians can also provide on-site installation services to ensure that the rack is installed correctly and safely. Maintenance is minimal, thanks to the high-quality materials and surface treatment. Regular inspection of the pin-lock system, safety end-stops, and overall structure is recommended to ensure optimal performance, but no major maintenance is required, reducing downtime and maintenance costs. The rack is also designed to be
durable and long-lasting, providing a reliable storage solution for years to come.
In terms of specifications, our 6-level pipe cantilever structure offers a range of options to meet different needs. The upright height is available in 2000mm and 3000mm, allowing you to choose the height that best fits your warehouse ceiling height and storage requirements. The cantilever arm length is 2.5 meters, which is optimized for long pipes, and the arm length can be customized if needed. The shelf thickness ranges from 3.3 mm to 4 mm, providing varying levels of load-bearing capacity to meet different weight requirements. The model number for this system is HC-6016S, and it is
manufactured by
Herochu, a trusted brand in the
storage rack industry with a reputation for quality and reliability. The rack is also available in customized sizes and colors, ensuring that it meets your specific warehouse needs and branding requirements.
Compared to other storage
solutions, our 6-level pipe cantilever structure offers numerous advantages. Traditional storage methods for long pipes, such as stacking on the floor, are inefficient and take up valuable space, while also increasing the risk of damage to the pipes. Our
cantilever rack system maximizes space utilization, allowing you to store more materials in the same area. Additionally, the adjustable design ensures that the rack can be adapted to different material sizes, providing versatility that traditional storage methods lack. The heavy-duty construction and safety features make it a
reliable solution for storing heavy materials, reducing the risk of accidents and damage. Moreover, the open design of the cantilever rack allows for easy access and visibility, improving work efficiency and reducing the time spent on loading and unloading materials.
In conclusion, our 6-Level Pipe Cantilever Structure with 2.5 Meters Long Arms and
Steel Pipe Rack Design Capable of Supporting Approximately 700 kg Per Level is a premium,
heavy-duty storage solution that is specifically designed to meet the needs of industrial warehouses and businesses that store long pipes, bars, and sheet metal. With its robust carbon steel construction, adjustable design, multiple safety features, and high space utilization, this
pipe racking system provides a reliable, efficient, and cost-effective storage solution that can help businesses optimize their storage operations and improve work efficiency. Whether you are looking to expand your storage capacity, improve the organization of your materials, or enhance
workplace safety, our 6-level pipe cantilever structure is the ideal choice. Backed by CE and ISO certifications and manufactured by Herochu, a trusted brand in the industry, you can be confident that this rack system will provide long-lasting performance and value for your business.
