Herochu® Pipe Racks & Industrial Adjustable Cantilever Metal Racking
Custom-engineered long-load storage solutions starting at US$3,698 – CE / UE / ISO 9001 certified

When floor space is expensive and every meter of tubing, lumber or extruded profile has to be accessed quickly, ordinary pallet racks simply can’t keep up. Herochu’s next-generation adjustable cantilever racking closes the gap between static shelving and costly automated systems. Built from high-tensile steel, finished with an anti-corrosion powder coat and offered in any RAL colour, our racks give fabricators, importers and distribution centres an immediate ROI by turning vertical air into profitable, safe storage.

1. What makes Herochu cantilever racking different?

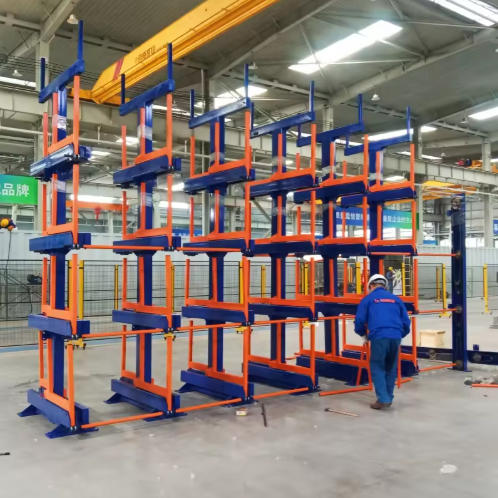

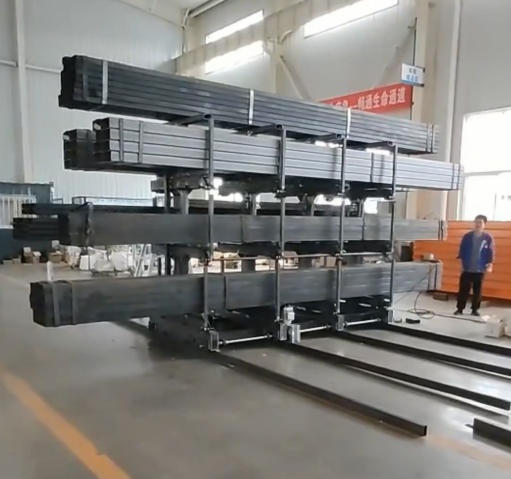

   Manual telescopic arms – A patent-pending winch mechanism lets operators extend or retract each cantilever arm in under 30 seconds. That means a bridge crane can slide 12 m bundles directly onto the rack without side clearance, then retract the arm to reclaim aisle space.
   Modular composite structure – Bolted upright frames, drop-in arms and optional bilateral stabilisers assemble like giant Meccano, so your system can grow from 3 m to 12 m long and from 3 t to 5 t per side without welding.
   Certified safety – Every frame is fatigue-tested to 1.5 × rated load and carries CE, UE and ISO 9001 markings for global compliance.
2. Core benefits for long-load storage
   • Store anything from 150 mm PVC conduit to 610 mm steel plate bundles.
   • Choose single- or double-sided configurations to hug walls or create back-to-back aisles.
   • Powder-coated finish withstands 1,000 h salt-spray, perfect for coastal or chemical plants.
   • Optional ESD grounding kits protect sensitive electronics or composite aerospace parts.
   • Foldable stabiliser legs allow relocation by forklift in minutes—ideal for leased buildings.
3. Specification matrix – four best-selling models

Model | Load per layer | Arm length | Layers* | Overall (L×W×H)
HC-G6053D | 3 t | 6 m | 4+1 | 6 435 × 3 340 × 1 750 mm
HC-G9055S | 5 t | 9 m | 4+1 | 9 435 × 3 340 × 1 550 mm
HC-G9055D | 5 t | 9 m | 4+1 | 9 435 × 3 340 × 1 750 mm
HC-G12055D | 5 t | 12 m | 4+1 | 12 435 × 3 340 × 1 750 mm

*“4+1” indicates four live cantilever levels plus one fixed top shelf for lightweight accessories. All dimensions, load ratings and arm counts can be customised in manual or electric drive.

4. Customisation options – if you can draw it, we can build it
   • Arm spacing: 600 mm to 1 500 mm in 50 mm increments.
   • Height: 2 000 mm to 6 000 mm single-tier; multi-tier towers up to 10 000 mm available.
   • Colour: Standard traffic-blue uprights with orange arms, or specify your corporate palette.
   • Surface: Optional hot-dip galvanising for outdoor pipe yards, or FDA-approved powder coat for food-grade tubing.
   • Accessories:
   – Removable pipe saddles keep bundles centred.
   – Fork-guide base plates for portable cantilever racks.
   – LED aisle lighting and motion sensors for 24/7 operations.

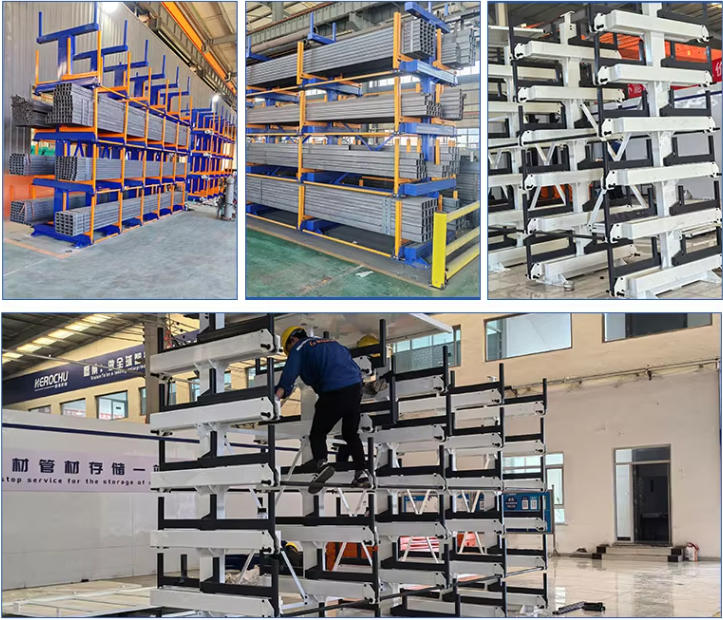

5. Typical applications
   • Steel service centres stocking API 5L line pipe in 12 m lengths.
   • Furniture factories storing rough-cut lumber and finished tabletops.
   • Aluminium extrusion warehouses handling 6 m anodised profiles.
   • HVAC contractors with mixed inventories of spiral duct and flat sheet.
   • Ports and offshore yards exposed to salt-air environments.
6. Installation & after-sales support
   A two-person crew can erect 10 linear metres in under four hours using only wrenches and a torque wrench. Detailed 3D BIM files and an interactive AR app shorten design time for contractors. Every Herochu rack is backed by a 10-year structural warranty, global parts shipping within 72 hours and remote video troubleshooting.
7. Ordering process
8. Send us a sketch or CAD file of your workshop.
9. Receive a free 3D layout and load calculation within 24 hours.
10. Approve the quote (starting at US$3,698 for a 6 m single-sided starter bay).
11. Production in 15 working days, crated for ocean or air freight.
12. Optional on-site commissioning by Herochu technicians.

Stop stacking pipe on the floor and start monetising every cubic metre. Click “Contact Supplier” now for an instant quotation or download our full-length technical brochure to see why Herochu cantilever racking is the industry benchmark for speed, safety and scalability.
