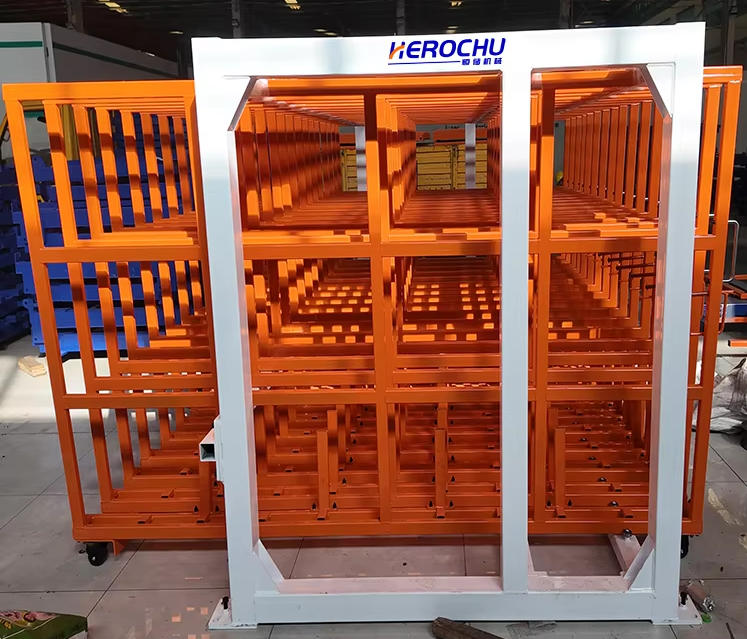

Efficient material storage is the backbone of any high-performing sheet metal operation. Yet, many workshops still rely on outdated methods—stacking sheets horizontally on pallets or leaning them against walls—leading to damage, disorganization, and wasted floor space. The Multi Tier Vertical Roll Out Rack System for Organized Metal Sheet Storage solves these challenges with an intelligent, space-saving design that redefines how metal sheets are managed from intake to final use.
This system features a modular, multi-tier architecture with up to 15 independent, fully extendable drawers per unit. Each drawer supports up to 1 metric ton, accommodating standard plate sizes including 2000×1000mm, 2500×1500mm, and 3000×1500mm. The vertical orientation utilizes overhead space that would otherwise go unused, freeing up to 70% more floor area compared to conventional storage methods. This is especially valuable in urban factories or leased warehouses where square footage equals cost.
But space efficiency is only part of the story. The true power of this rack lies in its ability to enforce organization. Each drawer can be designated for specific materials—e.g., 2mm galvanized steel, 3mm aluminum, or laser-cut offcuts from Project X. Clear labeling and visual separation eliminate guesswork, reduce search time, and prevent costly mix-ups. In environments where traceability matters (such as aerospace or medical device manufacturing), this level of control is indispensable.
The roll-out mechanism uses heavy-duty linear bearings and smooth-gliding rails, requiring minimal force to extend even fully loaded drawers. Workers can access any sheet from the front without climbing, bending, or moving other materials—enhancing ergonomics and reducing strain-related injuries. Optional accessories like anti-slip rubber mats or edge guards further protect sheet edges and finishes during storage.
Customization is central to the offering. While standard models like the HC-V2010-15 serve most needs, the manufacturer welcomes bespoke requests:
- Adjust number of layers (from 5 to 20+)
- Increase load capacity per tier (up to 2 tons with reinforced frames)
- Choose powder-coated colors for visual coding
- Integrate with automated loading systems
As a vertically integrated company based in Jinan, China, Jinan Constant Storage Machinery controls every stage—from R&D and production to quality assurance and global service. Their 10,000 sqm facility houses advanced CNC machinery and a dedicated QA department that performs pre-shipment load tests on every unit. CE-certified and ISO9001-compliant, their products meet stringent international safety standards.
Real-world applications span across industries:
- Laser cutting shops use the racks to store remnants by job, enabling quick reuse and reducing raw material purchases.
- HVAC fabricators organize duct blanks by gauge and alloy, speeding up assembly lines.
- Metal art studios keep specialty sheets (copper, brass, perforated steel) sorted and scratch-free.
Installation is seamless. The company provides both remote guidance and on-site technician support, with teams experienced in international deployments. Whether you’re in Mexico City, Doha, or Seoul, setup is handled professionally and efficiently.
In an era where lean manufacturing and sustainability are priorities, wasting material due to poor storage is unacceptable. The Multi Tier Vertical Roll Out Rack System turns scrap and remnants into recoverable assets, boosts productivity, and future-proofs your storage infrastructure. Contact the manufacturer today for a customized layout proposal and discover how vertical intelligence can elevate your operations.
