Herochu Laser Cutting Machine With Automatic Sheet Storage System
From USD 6,600 | CE / ISO 9001 Certified | 3015-6025 mm Formats
Transform your sheet-metal shop into a lights-out factory with Herochu’s all-in-one Laser Cutting Machine With Automatic Sheet Storage System. Designed, built and pre-calibrated in Jinan, China, this plug-and-play unit fuses a high-speed fiber laser with a fully automated 3-D warehouse to deliver 24/7 unmanned production. Entry-level pricing starts at only US$6,600, making Industry 4.0 affordable for job-shops of every size.
- What You Receive
- 1× Heavy-duty laser cutting machine—1 kW–6 kW IPG source, Raytools or Precitec head, rack & pinion drives

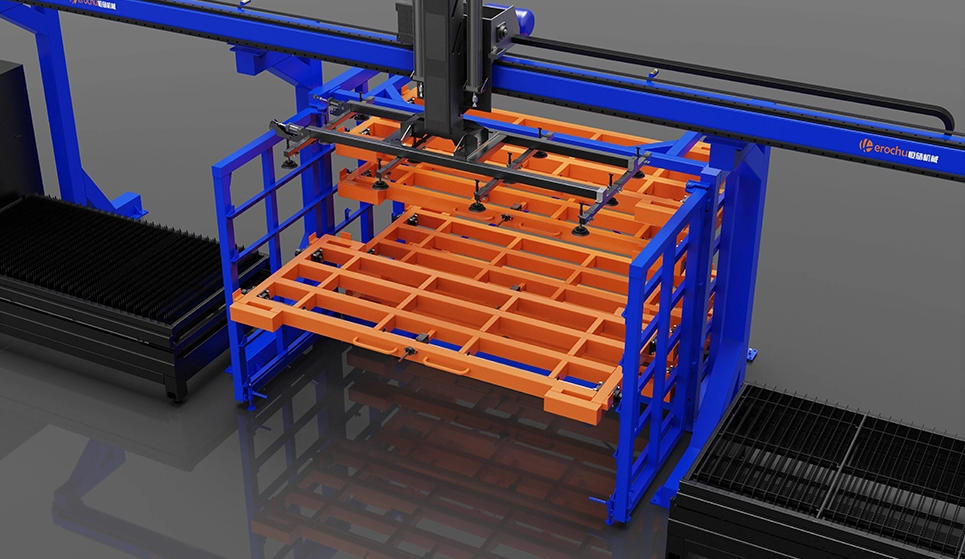

- 1× Automatic sheet storage tower—5-layer, 3 t per level, 100–500 kg sheet weight range
- 1× Gantry loading manipulator—high-torque servo lift & translation, Omron CNC control
- 1× Unloading gantry—double-layer finished-part cart, automatic stacking
- 1× PLC control cabinet—touch-screen HMI, Ethernet ready for ERP/MES
- CE declaration, ISO 9001 certificate, full documentation package
- Key Performance Highlights
| Feature | Benefit |
|---|---|
| 5-layer 3-D warehouse | Stores up to 15 t of raw sheets in 25 m² footprint—free 60 % floor space |
| Omron servo drives | ±0.5 mm repeatability, 12 m/min in/out speed—no sheet jams |
| Vacuum suction array | 16 oil-resistant cups, individual valve control—handles oily, coated or polished plates |
| Safety interlocks | Light curtains, pressure sensors, E-stop—meets EU machinery directive |
| Powder-coated steel | Scratch-proof finish, custom RAL color optional |
- Technical Specification
| Parameter | Value |
|---|---|
| Working formats | 3015 / 4015 / 4020 / 6015 / 6020 / 6025 mm |
| Load per layer | 3 t (5-layer std.) |
| Sheet weight range | 100 – 500 kg |
| Max stack height | 220 mm per layer |
| Air consumption | 1.5 m³/min @ 0.6–0.7 MPa |
| Control system | Original Omron PLC + 10″ touch HMI |
| Certification | CE, ISO 9001 |
| Packing | Plastic film + export plywood case |
- Workflow in 5 Steps
- Centralized storage – Forklift drops raw stacks into tower.
- Automatic indexing – Barcode/weight scan logs material into ERP.
- Auto-suction & splitting – Vacuum cups pick top sheet, peel and blow-off tabs.
- High-speed loading – Truss transfers sheet to laser table in <45 s.
- Unloading & sorting – Cut parts conveyed to dual-layer cart; skeletons dropped to scrap bin.
- ROI You Can Measure
- 85 % machine uptime vs 45 % typical manual feeding
- 2–3 operator shifts saved per day (≈ US$45 000 annual labor cost reduction)
- 15 % material scrap reduction through precise single-sheet handling
- Smart Factory Ready
Ethernet/IP, OPC-UA and Modbus interfaces come standard—connect to Bystronic, Trumpf, Amada or custom MES without middleware. Remote diagnostics via TeamViewer or VPN reduce downtime by 35 %.
- Global Support & Warranty
- 2-year full warranty on laser source, 1 year on tower & manipulator
- Engineers available for on-site install in South Africa, USA, Mexico, Russia, South Korea, Egypt
- Spare-parts stock in Rotterdam & Dallas for 48-hour delivery
- Ordering & Customization
MOQ: 1 set
Logo, color and layer count fully customizable.
Send sheet size, max weight, daily volume and we return a tailored quote & 3-D layout within 12 hours.
Stop losing margin to idle lasers and overtime shifts. Click “Contact Supplier”, leave your WhatsApp or e-mail, and receive a detailed ROI report plus factory video tour today.
