In the competitive landscape of industrial manufacturing—where precision, speed, and safety directly impact productivity—Herochu emerges as a pioneer with its cutting-edge Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator. This integrated automation solution combines the efficiency of a laser cutting feeder with the precision of a servo-powered swing arm and the reliability of a steel plate suction crane, creating a seamless workflow for loading, unloading, and material handling in laser cutting operations. Designed to meet the diverse needs of modern workshops, it eliminates manual inefficiencies, reduces errors, and sets new standards for industrial automation—all while adhering to global quality and safety benchmarks.
Customized to Fit Your Workshop’s Unique Needs
Every industrial workshop operates with distinct spatial layouts, production volumes, and laser cutting requirements—and Herochu recognizes that a one-size-fits-all approach falls short. Our Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator is fully customizable, tailored to align with your specific workshop environment. Whether you manage a compact kitchenware production facility with limited floor space or a large-scale metal sheet manufacturing plant handling high-volume orders, our team collaborates closely with you to adjust key elements: from the manipulator’s swing arm range and feeder capacity to the suction crane’s grip strength and integration points with existing laser cutting equipment. This customization ensures the system fits seamlessly into your workflow, avoiding costly reconfigurations and maximizing operational efficiency from the moment of installation.
Globally Certified: Trust in Safety and Quality
Herochu prioritizes compliance with international standards to deliver solutions that inspire confidence. The Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator proudly holds CE, UE, and ISO 9001 certifications—a reflection of our unwavering commitment to quality, safety, and reliability.
- CE and UE Certifications: These validate that the system meets strict European Union regulations for safety, health, and environmental protection, making it suitable for use across EU member states and global markets that recognize these benchmarks.
- ISO 9001 Certification: This standard confirms our rigorous quality management processes, ensuring every component—from the servo motor to the suction cups—undergoes meticulous testing and inspection before delivery.
With these certifications, you can trust that your investment not only enhances productivity but also minimizes operational risks and ensures long-term durability.
Core Advantage: High-Precision Servo-Powered Performance
At the heart of Herochu’s Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator is a high-precision servo-powered swing-arm robotic arm, engineered to redefine automated material handling. Unlike traditional pneumatic or hydraulic systems, the servo motor control delivers three critical benefits:
- Exceptional Repeatability: Achieves ±0.1mm precision, ensuring consistent placement of steel plates into laser cutting machines—critical for industries like automotive and medical devices, where even minor misalignments can ruin products.
- Ultra-Smooth, Quiet Motion: The servo-driven mechanism eliminates jerky movements and excessive noise, creating a safer, more comfortable workplace. This is particularly valuable for electronics and packaging facilities, where a quiet environment protects sensitive components and worker well-being.
- Rapid yet Stable Operation: The servo system balances speed and stability, enabling fast loading/unloading cycles without compromising accuracy—perfect for high-volume production lines in electrical cabinet and metal sheet manufacturing.
System Composition: Robust Components for Reliable Performance

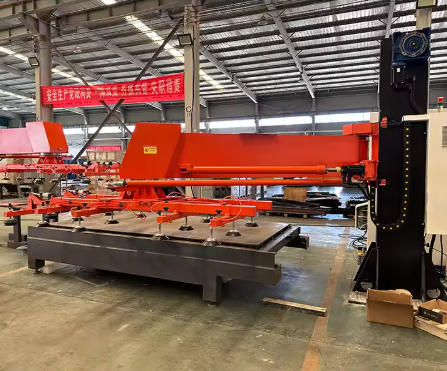

The Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator is built with premium, industrial-grade components to withstand the demands of heavy-duty operation. Its complete structure includes:
- Swing Arm Robotic Arm Body: A robust frame designed for durability, capable of withstanding continuous use in harsh manufacturing environments.
- High-Torque Servo Synchronous Lifting Mechanism: Ensures smooth, even lifting of heavy steel plates, preventing bending or damage during transfer.
- Servo Swing Arm Positioning Transmission: Delivers precise control over the swing arm’s movement, enabling a 120° smooth arm swing for flexible material handling across different workstations.
- Heavy-Duty Oil-Resistant Suction Cups: Multiple sets of suction cups (each equipped with an independent opening/closing valve) provide strong, reliable grip on steel plates—even in oily or dusty conditions. The number and diameter of suction cups vary by model (e.g., 15 cups of 150mm diameter for the HC-R3015-500, 118 cups of 250mm diameter for the HC-R3015-1000) to match different plate weights and sizes.
- SNS Pneumatic System: Works in tandem with the suction cups to regulate air pressure, ensuring consistent grip strength. The system operates with an air consumption of 1.5m³/min and requires an air source of 0.6-0.7Mpa—optimized for efficiency and performance.
- Safety Protection Systems: Includes a power outage safety protection system, emergency stop protection, and automatic braking. These features instantly halt operations in case of power failure or emergencies, protecting workers, steel plates, and equipment.
- Original Imported Omron CNC Control System: A industry-leading control unit that enables intuitive operation, real-time monitoring, and easy integration with other automated production line components—laying the foundation for “Intelligent Production 2.0”.
Key Features: Convenience, Safety, and Economy
Herochu’s Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator stands out for its user-centric design, offering three core advantages:
1. Convenient and Flexible: Modular Design for Adaptability
The manipulator features a modular assembly structure, allowing for easy assembly and disassembly. This design simplifies installation and enables quick reconfiguration if your workshop layout changes—ideal for dynamic environments like metal sheet manufacturing, where production needs evolve. The modular approach also reduces space waste, as you can adjust the system’s footprint to fit available area, making it suitable for both small and large facilities.
2. Top-Tier Security: Protecting Workers and Assets
Safety is non-negotiable in industrial settings, and our system is equipped with multiple safeguards:
- Emergency Stop Protection: A readily accessible emergency stop button halts all operations instantly, preventing accidents during unexpected events.
- Automatic Braking: Engages if the system detects abnormal movement or power loss, securing the swing arm and steel plates to avoid damage or injury.
- Power Outage Safety Protection: Ensures the manipulator remains stable and holds its position during power failures, preventing dropped plates and equipment damage.
3. Economical Operation: Reducing Costs, Boosting Efficiency
The system’s ergonomic design simplifies operation, reducing the learning curve for workers and minimizing human error. The automated loading/unloading process eliminates the need for manual lifting of heavy steel plates, cutting labor costs by reducing reliance on specialized workers. Additionally, the electric power mode (paired with efficient servo control) lowers energy consumption compared to hydraulic systems, while the ±0.1mm precision reduces material waste from miscuts—delivering long-term cost savings for your business.
Technical Specifications: Tailored to Diverse Industrial Needs
Herochu offers five standard models of the Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator, each designed to meet specific load, plate size, and thickness requirements. Below is a detailed breakdown of key specifications:
| Model | Thickness of Feeding Plate | Maximum Feeding Width | Minimum Feeding Width | Maximum Plate Weight | Number of Suction Cups | Suction Cup Diameter | Power Mode | Air Consumption | Air Source |
| HC-R3015-500 | 8mm | 3000*1500mm | 1250*1000mm | 300kg | 15 | 150mm | Electric | 1.5m³/min | 0.6-0.7Mpa |
| HC-R3015-750 | 12mm | 3000*1500mm | 1250*1000mm | 500kg | 15 | 200mm | Electric | 1.5m³/min | 0.6-0.7Mpa |
| HC-R3015-1000 | 20mm | 3000*1500mm | 1250*1000mm | 1000kg | 118 | 250mm | Electric | 1.5m³/min | 0.6-0.7Mpa |
| HC-R4020-500 | 8mm | 4000*2000mm | 1250*1000mm | 300kg | 15 | 150mm | Electric | 1.5m³/min | 0.6-0.7Mpa |
| HC-R4020-750 | 12mm | 4000*2000mm | 1250*1000mm | 500kg | 15 | 200mm | Electric | 1.5m³/min | 0.6-0.7Mpa |
For broader reference, the system supports three main size categories (3015/4015/4020mm) and maximum loads ranging from 500KG to 1000KG—covering the needs of most industrial laser cutting applications.
Industry Applications: Versatile for Key Sectors
The Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator is engineered to excel in industries where precision and efficiency are paramount:
- Kitchenware Manufacturing: Handles stainless steel plates for sinks, cooktops, and utensils, ensuring precise placement in laser cutters for consistent product quality.
- Electrical Cabinet Production: Manages large steel plates used in cabinet frames, reducing manual labor and accelerating production of standardized or custom cabinets.
- Metal Sheet Manufacturing: Ideal for processing raw metal sheets into components for construction, machinery, and appliances—supporting both small-batch prototypes and high-volume orders.
- Automotive and Electronics: The ±0.1mm precision makes it suitable for automotive parts (e.g., chassis components) and electronics enclosures, where tight tolerances are critical.
- Medical Devices and Packaging: The quiet, smooth operation protects sensitive medical components and packaging materials, meeting the strict standards of these industries.
Why Choose Herochu’s Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator?
Herochu combines decades of industrial automation expertise with a customer-first approach to deliver solutions that solve real-world challenges. Our Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator offers unmatched value:
- Precision You Can Rely On: ±0.1mm repeatability ensures consistent results, reducing waste and rework.
- Customizable to Your Needs: Tailored design fits your workshop, maximizing efficiency without disrupting existing operations.
- Certified Safety and Quality: CE, UE, and ISO 9001 certifications guarantee compliance and durability.
- Comprehensive Support: From initial design and installation to ongoing maintenance and training, our team is with you every step of the way to ensure the system delivers long-term value.
In a market where efficiency and precision drive success, Herochu’s Laser Cutting Feeder With Servo Swing Steel Plate Suction Crane Handling Manipulator is more than a tool—it’s a strategic investment in your business’s growth. Whether you’re looking to reduce labor costs, improve product quality, or scale production, this system empowers you to stay ahead of the competition.
Ready to transform your industrial material handling? Contact Herochu today to discuss your customization needs and discover how our servo-powered manipulator can elevate your laser cutting workflow.
