In the competitive world of metal fabrication, staying ahead requires more than just powerful machinery; it demands smart, integrated solutions that maximize every minute of production time. The Intelligent Gantry Loading Manipulator represents the pinnacle of automation technology, specifically engineered to serve as the backbone of efficient laser cutting operations. As a key component of the Automatic Loading and Unloading System, this device transforms traditional workflows into seamless, high-speed processes that operate reliably around the clock.
The Role of the Gantry Robot in Automated Handling
At the core of this system is the Gantry Robot for Automated Handling, a sophisticated mechanical arm mounted on a bilateral truss structure. Unlike conventional robots that may have limited reach or payload capacity, the gantry design offers superior stability and coverage across large work areas. Capable of handling sheet sizes up to 6025mm, this robot moves along linear guide rails with chain drive transmission, ensuring smooth and precise positioning of materials.
The manipulator’s versatility allows it to perform multiple functions: picking raw sheets from the storage warehouse, placing them onto the laser cutting bed, and subsequently removing finished parts for stacking or further processing. This automated handling and loading/unloading solution eliminates the need for manual intervention, freeing up skilled workers to focus on higher-value tasks such as quality inspection, programming, and maintenance.
Seamless Integration with Laser Cutting Machines
One of the standout features of the Automatic Gantry Loader And Unloading Machine is its ability to integrate flawlessly with existing laser cutting infrastructure. Through its advanced CNC control system, the gantry loader communicates directly with the laser cutter, synchronizing movements to ensure that material is loaded exactly when needed. This synchronization prevents idle time and keeps the laser firing continuously, which is essential for maintaining high throughput.
The system supports a wide range of material specifications, accommodating thicknesses and types that vary from job to job. Operators can easily program the system via an intuitive interface to handle different cutting patterns and sheet dimensions. With the ability to store numerous programs, switching between jobs becomes a matter of seconds rather than minutes, significantly reducing setup times and increasing overall equipment utilization.
Maximizing Throughput with Double-Layer Exchange Technology
A critical element that sets this system apart is the inclusion of the double-layer electric exchange material car. This innovation addresses one of the most common bottlenecks in sheet metal processing: the time lost during material changes. Traditional single-layer carts require the machine to stop while operators swap out empty pallets for full ones. In contrast, the double-layer design allows for simultaneous loading and unloading. While the laser cuts a sheet on the active layer, the operator or automated system can prepare the next batch on the standby layer.
With a load capacity of 3T to 5T per layer, these cars can hold a significant inventory of raw materials, reducing the frequency of external logistics interventions. This capability is particularly beneficial for lights-out manufacturing scenarios where the goal is to run production uninterrupted through the night. The result is a dramatic increase in daily output, enabling manufacturers to meet tight deadlines and take on larger orders without expanding their workforce.
Precision and Consistency in Every Cut
Quality consistency is a major advantage of adopting the Gantry-type automatic loading/unloading machine. Human operators, despite their best efforts, can introduce variations in how sheets are placed, leading to misalignments and potential cutting errors. The intelligent manipulator, however, places every sheet with sub-millimeter precision, ensuring that the laser follows the programmed path accurately every time.
This high level of repeatability reduces the occurrence of defective parts and minimizes material waste. In industries where raw material costs are high, such as aerospace or medical device manufacturing, even a small reduction in scrap rates can lead to substantial financial savings. Additionally, the system’s High Precision & 24/7 Reliable Automatic Handling ensures that product quality remains constant regardless of the shift or the operator, fostering trust among clients and enhancing brand reputation.
Safety and Ergonomics: A Worker-Centric Approach
Safety is integral to the design philosophy of the Intelligent Gantry Loading Manipulator. By taking over the physically demanding task of lifting heavy metal plates, the system protects workers from the risks associated with manual handling. Back injuries, finger crushes, and fatigue-related accidents are virtually eliminated when the gantry robot handles the heavy lifting.
Moreover, the system incorporates multiple layers of safety mechanisms. Emergency stop buttons are strategically placed for quick access, while safety guards enclose moving parts to prevent accidental contact. Advanced proximity sensors monitor the workspace, detecting any unauthorized entry and triggering an immediate shutdown if necessary. These features not only comply with strict CE and ISO9001 certifications but also create a safer, more comfortable working environment that boosts employee morale and retention.
Scalability and Future-Proofing

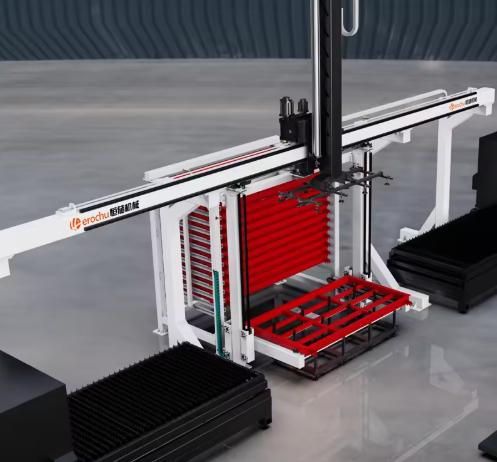

Manufacturers looking to expand their capabilities will find the Heavy-Duty Gantry Automatic Loading/Unloading Plate Storage System highly scalable. The modular design allows for easy upgrades, such as adding more storage layers (from 8 up to 13) or integrating additional handling modules. The system’s compatibility with various laser cutting brands ensures that it remains a viable investment even as technology evolves.
Furthermore, the data generated by the CNC control system provides valuable insights into production trends, machine health, and operational efficiency. This data-driven approach enables predictive maintenance and continuous improvement strategies, keeping the facility at the forefront of Industry 4.0 advancements.
Conclusion
The Intelligent Gantry Loading Manipulator is more than just a piece of equipment; it is a strategic asset that drives productivity, quality, and safety in modern sheet metal fabrication. By delivering High Precision & 24/7 Reliable Automatic Handling, it empowers manufacturers to achieve new levels of efficiency and competitiveness. As the industry moves towards fully automated smart factories, this system stands ready to lead the way, offering a robust solution for today’s challenges and tomorrow’s opportunities.
