Introduction – Transform the Way You Handle Long Goods
Every square metre of your plant floor has a cost attached to it. When long bars, pipes, profiles, or plate packs are stacked on static A-frames or block-stowed on the ground, valuable space is wasted and safety risks multiply. Herochu Industrial Storage Solutions Motorized Cantilever Shelving converts up to 80 % of that handling area into dense, crane-accessible storage. Starting from US$3,999 and CE / UE / ISO 9001 certified, each system is engineered to your exact workshop dimensions and workflow.
What Is a Motorized Cantilever Shelving System?

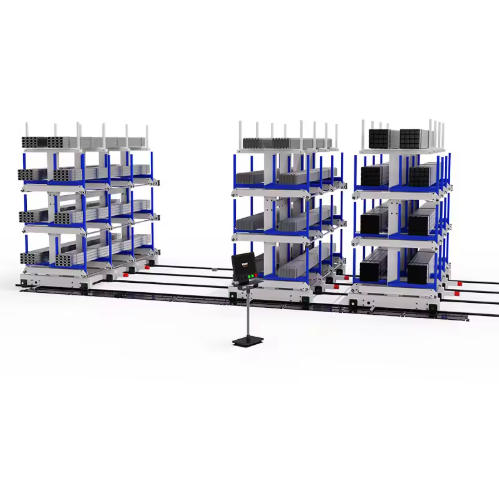

Unlike conventional racks, Herochu units are electrically driven carriages that ride on recessed floor rails. Each carriage carries electrified telescopic cantilever arms. At the push of a remote-control button, the selected carriage glides sideways and its arms extend or retract to create an aisle exactly where the overhead crane needs it. No forklift manoeuvring, no multiple permanent aisles—just one dynamic aisle that appears on demand.
Key Specifications – Built for Industrial Duty
• Load per arm level: 3–8 t (uniformly distributed)
• Carriage capacity: 30–100 t total per unit
• Number of storage levels: 4–12 fully adjustable arms
• Material: Q355 carbon steel, shot-blasted & powder-coated
• Standard colours: RAL 9002 white or RAL 5010 blue, custom on request
• Ground clearance: 330 mm for forklift pass-through when arms are retracted
• Drive: 0.75 kW IP55 electric gearbox with soft-start VFD
• Control: Wall-mounted HMI panel + 433 MHz radio remote (ATEX optional)
• Safety: Laser scanners, end-of-travel limit switches, mechanical anti-tip dogs
• Certification: CE (EN 13105), ISO 9001:2015, UE declaration of conformity
Rail-Integrated Design – One Aisle, 100 % Selectivity
Traditional cantilever rows demand a fixed aisle every 3–4 m. Herochu carriages share a single ground rail, eliminating wasted gangways. A 25 m long system with 5 carriages offers the same storage volume as 80 m of static rack yet uses only 2.5 m of aisle width when open. Rails are chemically anchored to the slab and laser-levelled to ±1 mm over 30 m, ensuring smooth motion even at full load.
Crane-Driven Stacking & Retrieval – No Forklift Required
The rack is purpose-built for overhead cranes. Telescopic arms extend 600 mm beyond the carriage frame, positioning the load directly beneath the hook. Crane operators can pick single bars, full bundles, or palletised plates without leaving the cab. This eliminates double handling, reduces product damage, and keeps pedestrian traffic away from suspended loads.
Customisable Extension Arms – Tailored to Your Stock
Herochu engineers configure the arm length, spacing, and profile to suit:
• Steel bars from 6–12 m
• Aluminium extrusions 3–8 m
• Plate packs up to 2 m wide
• Irregular dies or long boxes
Dividing spikes can be inserted on the arms to create narrow lanes for off-cuts or mixed SKUs, ensuring 100 % availability and clear visual identification.
Electric Pull-Out Storage Consoles – New Value for Plant Operators
Each drawer-style console is powered by an independent 24 V motor. Operators use the remote to index the desired console, eliminating the need for manual cranking. This is invaluable when carriages are stacked 4–5 high or when loads exceed 4 t.
Space-Saving & Safety – Two Sides of the Same Coin
By removing permanent aisles, Herochu systems:
• Increase storage density by 60–80 %
• Cut lighting and HVAC costs in half (smaller footprint)
• Minimise collision risk between forklifts, cranes, and personnel
Installation & Maintenance – Global Support
- CAD layout review & finite-element analysis within 48 h.
- Rails, carriages, and arms pre-assembled and trial-run in our factory.
- Flat-packed in seaworthy steel frames; 40 HQ container holds 6–8 carriages.
- On-site crew completes rail anchoring, laser alignment, and operator training in 3–5 days.
- Remote IoT diagnostics monitor motor temperature, cycle count, and rail wear; spare parts shipped same-day from EU, USA, or UAE hubs.
Typical ROI – Real Numbers from Real Plants
Case study: A German steel service centre replaced 300 m² of floor stacking with a 20-carriage Herochu system. Storage capacity rose from 420 t to 860 t, while labour hours per pick fell by 35 %. Payback was achieved in 11 months through space savings and damage reduction.
Optional Upgrades – Future-Proof Your Investment
• Hot-dip galvanised finish for outdoor yards
• Explosion-proof motors & controls (ATEX Zone 2)
• Load cells on arms for real-time WMS integration
• LED aisle lighting that activates when carriage opens
• Solar-ready 24 V lithium battery pack for off-grid sites
Ordering Process – Simple & Transparent
Step 1: Send workshop layout, crane hook path, and inventory list.
Step 2: Receive 3-D proposal, static calculation, and fixed-price quotation.
Step 3: Approve drawings – production begins (lead time 25–30 days).
Step 4: Container delivery – installation complete within one working week.
Conclusion – Store More, Move Faster, Work Safer
Herochu Industrial Storage Solutions Motorized Cantilever Shelving redefines long-goods storage. With CE, UE, and ISO 9001 certification, electric drive, and limitless customisation, it is the ultimate choice for plants that need to maximise cubic utilisation without compromising safety. Contact our engineering team today for a free layout simulation and quotation starting at US$3,999. Turn wasted aisle space into profit-generating storage—choose Herochu.
