Heavy-Duty Sheet Metal and Pipe Storage Shelves – Herochu Custom Racks from $3,660 | CE/ISO Certified

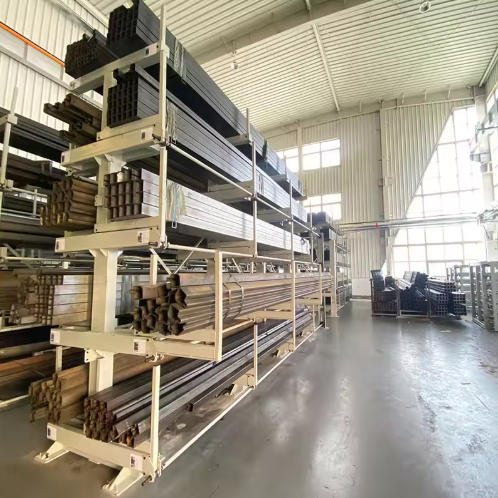

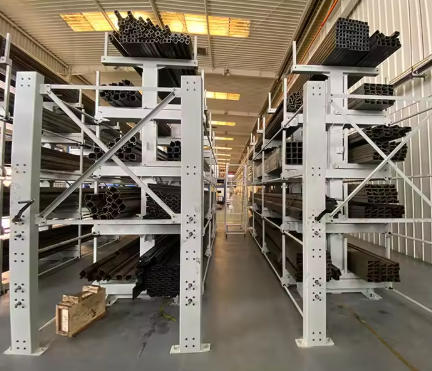

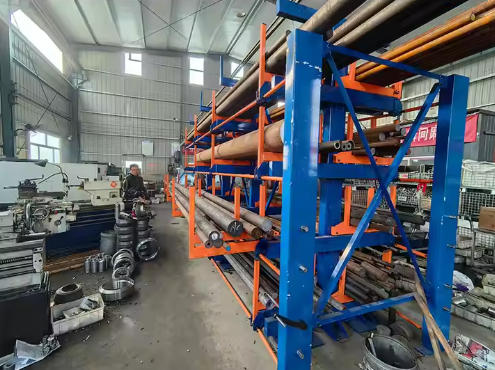

When bar stock, steel pipes or any other long material dominate your workshop floor, floor space disappears fast and safety risks multiply. Herochu Company has solved that problem for thousands of fabricators, steel service centers and mechanical contractors with our Heavy-Duty Sheet Metal and Pipe Storage Shelves—a fully customizable, CE & ISO 9001-certified rack system engineered to keep every length, diameter and profile organized, accessible and damage-free.
Why Choose Herochu Industrial Bar & Pipe Racks? • Tailor-made for your workshop – Every upright, beam and arm is cut, welded and finished to the dimensions you specify.
• Certified quality – CE, UE and ISO 9001 compliance guarantee structural integrity and global regulatory acceptance.
• Expand on demand – Bolt-on modular bays let you add capacity without dismantling existing racks.
• Protect inventory & facility – Tubular arms with replaceable HDPE sleeves prevent surface marring while keeping pipes clear of walls, forklifts and foot traffic.
• Instant pick & load – Horizontal, vertical and double-sided configurations give operators direct crane, hoist or forklift access from either side.
Optimized Storage Density Starts Here
Unlike conventional cantilever racks that only handle one load type, Herochu’s system stores sheet metal bundles, bar stock, tubes, channels and even irregular off-cuts in clearly separated bays. Color-coded arms and adjustable dividers allow instant visual identification by size, grade or project, cutting retrieval times up to 40 % in high-mix environments.
Four Proven Models—Or Create Your Own
| Model | Safe Load per Layer | Max Length | Layers | Overall Footprint (L×W×H) | Assistance Side |
|---|---|---|---|---|---|
| HC-G6053D | 3 t | 6 m | 4 + 1 | 6 435 × 3 340 × 1 750 mm | Bilateral |
| HC-G9055S | 5 t | 9 m | 4 + 1 | 9 435 × 3 340 × 1 550 mm | Unilateral |
| HC-G9055D | 5 t | 9 m | 4 + 1 | 9 435 × 3 340 × 1 750 mm | Bilateral |
| HC-G12055D | 5 t | 12 m | 4 + 1 | 12 435 × 3 340 × 1 750 mm | Bilateral |
Need a 7-layer rack for 15 m drill pipe? 10 t capacity per arm? Electric-powered roller arms for automated loading? Our engineers turn custom sketches into production drawings within 48 hours. Custom orders start at only $3,660—no hidden tooling fees, no minimum bay count.
Built for Real-World Industrial Use
Frame: Structural-grade Q355B hot-rolled steel, shot-blasted SA 2.5 and finished with epoxy-polyester powder coat (80–100 µm) for corrosion class C3.
Bracing: X-braced spine and footplates pre-drilled for chemical anchors, ensuring stability under full seismic or forklift impact loads.
Arms: 150 mm or 200 mm channel arms with reinforced gussets; removable pin-stops lock pipes in place during crane lifts.
Safety: Each arm carries a laser-engraved SWL (Safe Working Load) tag and a built-in deformation indicator that signals when overload or impact has occurred.
Manual or Electric—You Decide
Standard models are manually loaded with overhead crane assistance. For high-throughput operations we integrate low-voltage 24 V electric roller arms, chain conveyors or pop-up chain transfers. Simply press a button and the selected pipe glides forward for single-operator unloading. The same modular frame accepts future automation upgrades without welding or drilling.
Installation & After-Sales Support
Herochu provides detailed anchor layouts, step-by-step assembly videos and optional on-site supervision worldwide. All racks are backed by a 10-year structural warranty and lifetime parts availability. Our multilingual service team is on call 24/7 to keep your storage system operating at peak efficiency.
Get Your Free Layout & Quote Today
Send us a floor plan, inventory list and handling method, and our application engineers will return a 3-D layout, load calculation and transparent quotation within one business day. From a single cantilever bay to a fully automated pipe yard, Herochu Heavy-Duty Sheet Metal and Pipe Storage Shelves deliver the strength, flexibility and safety your workshop demands—at a price that pays for itself in reclaimed floor space and faster material flow.
Contact Herochu Company now and turn chaotic pipe piles into a precision storage powerhouse.
