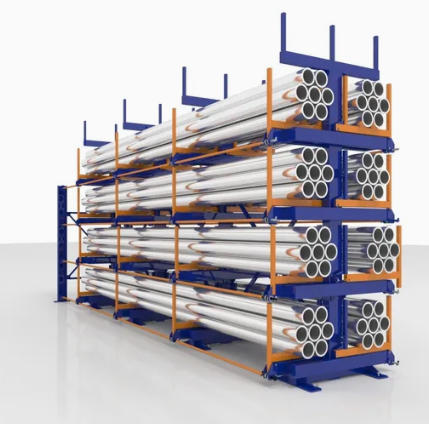

Herochu Heavy Duty Cantilever Racking Systems – Certified Cantilever Racking & Shelving System for Sale
Custom-Built from $3,099 | CE • UE • ISO 9001 | Single- or Double-Sided | Electric Roll-Out Option
When long, bulky, or mixed-length materials block gangways and slow production, Herochu Heavy Duty Cantilever Racking Systems deliver instant order. Designed to store bar stock, angle iron, tube, pipe, rollers, mandrels, and sheet off-cuts up to 12 000 mm long, every rack is engineered for crane handling, 100 % arm extension, and payloads to 42 t per bay. Starting at just $3,099 for a tailor-made layout, our CE/UE/ISO 9001-certified cantilever racking & shelving system for sale transforms crowded floors into high-density, high-velocity warehouses—without widening aisles.
Why fabricators, steel service centers, and aluminum extruders choose Herochu
• Store any length, any profile—no front columns to block forks or slings
• Roll-out arms extend 100 % for instant picking directly under the hook
• Max 5 000 kg per layer, 42 t total per rack; deflection < 1/250 at rated load
• Single- or double-sided towers, 550 mm to 800 mm arm spacing, 600 mm to 800 mm vertical pitch
• Optional electric drive with PLC frequency-conversion control—push-button extension for pallets 3 t–6 t
• Hot-dip galvanized or powder-coated Orange/Blue finish; custom RAL colors on request
• Modular bolt-on design—expand height, length, or add electric bays without dismantling existing stock
Standard & tailor-made models
Model (Standard) | Storage Length | Load/Layer | Total Load | Arms | Type | Arm Length | Height
HC-G6053S | 6 000 mm | 2 t | 8 t | 3 + 1 | Single | 550 mm | 2 195 mm
HC-G6053D | 6 000 mm | 3 t | 25 t | 4 + 1 | Double | 600 mm | 2 250 mm
HC-G9055S | 9 000 mm | 5 t | 35 t | 3 + 1 | Double | 800 mm | 2 280 mm
HC-G9055D | 12 000 mm | 6 t | 42 t | 3 + 1 | Double | 800 mm | 2 500 mm
Model (Custom) | Storage Length | Load/Layer | Total Load | Arms | Type | Arm Length | Height
HC-B3015-63 | 3 000 mm | 3 t | Custom | 5 + 1 | Single/Double | 600 mm | 2 000 mm
HC-B4015-63 | 4 000 mm | 3 t | Custom | 5 + 1 | Single/Double | 600 mm | 2 000 mm
HC-B4020-65 | 4 000 mm | 5 t | Custom | 5 + 1 | Single/Double | 800 mm | 2 500 mm
HC-B6020-66 | 6 000 mm | 6 t | Custom | 5 + 1 | Single/Double | 800 mm | 2 500 mm
Key features in detail
- Crane-compatible, aisle-saving layout
Because material is lifted straight off the arms, aisles as narrow as 2.2 m are sufficient for overhead or mobile cranes—freeing up to 40 % floor space versus traditional block stacking. - 100 % roll-out extension
Each arm slides out on precision linear bearings rated for dynamic loads. Operators gain full visual and physical access to bar ends for quick bundle identification and piece counts. - Heavy-duty construction
Columns are built from Q345B structural steel with 8 mm–12 mm wall thickness. Arms are reinforced with stiffener plates to prevent lateral torsion under eccentric loading. All welds are 100 % ultrasonic-tested per AWS D1.1. - Category-specific storage & leftovers tray
Removable galvanized trays beneath each tier catch mill scale, off-cuts, and small remnants, keeping walkways clean and inventory visible. Color-coded tags or RFID strips can be added for digital tracking. - Electrically driven roll-out option
Push-button PLC frequency-conversion control extends or retracts an entire tier in < 15 seconds. Overload sensors and end-position limit switches protect both operator and load. Ideal for 3 t–6 t pallets or when overhead space is restricted. - Expandable & relocatable
Bolt-on arms and splice plates allow bays to be lengthened or towers to be heightened without hot work. Should you relocate, the rack disassembles in hours and re-installs with no loss of capacity. - Certified safety & seismic design
Base plates are pre-drilled for chemical anchors or floor rails. Frames are braced with X-bracing every 3 m and comply with FEM 10.2.08 and AS4084-2012 seismic parameters. Optional rack-cladding and mesh guarding create secure outdoor yards.
Typical ROI
• 35 % reduction in forklift travel distance
• 50 % faster picking cycles—no digging through piles
• 28 % increase in floor utilization, delaying costly warehouse expansion
Payback: 8–11 months for high-turnover service centers.
Installation & support
Herochu pre-assembles each tower, then ships KD for container efficiency. A two-person crew can erect a 6 m double-sided bay in under three hours using only impact wrenches. Every system includes multilingual installation manuals, anchor templates, and a 24-month global warranty. Remote IoT modules can monitor electric roll-out cycles and send predictive-maintenance alerts to your CMMS.
Color & finish options
Standard: Orange (RAL 2004) columns, Blue (RAL 5010) arms.
Custom: Powder-coat any RAL color, add hot-dip galvanizing for outdoor or coastal environments, or apply food-grade epoxy for pharmaceutical plants.
Ready to reclaim your floor space?
Send Herochu your warehouse layout and inventory profile; receive a 3-D storage plan, load analysis, and firm quotation within 24 hours. Discover why the Herochu Heavy Duty Cantilever Racking Systems are the fastest-selling cantilever racking & shelving system for sale across five continents.
