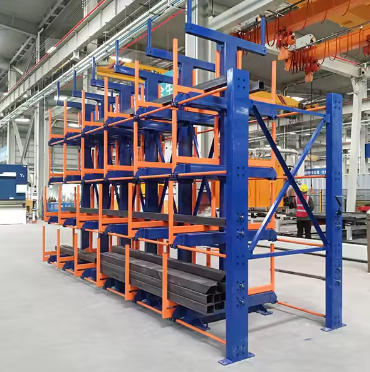

Herochu Durable Steel Pipe Storage Racks for Industrial Use – Outdoor pipe Storage Rack that shrinks your yard, not your budget
When every metre of yard space costs money and every hour of downtime costs more, the Herochu HC-G Series gives you a weather-ready, forklift-ready answer to long-length storage. Built from Q355B structural steel, hot-dip galvanised after fabrication, and pre-assembled on a modular base, the rack arrives ready to stand outside through salt spray, summer heat or a northern frost. No shelter, no problem: the 275 g/m² zinc coat is double the European norm, so the frame is warranted against red rust for ten full years.
One rack, twelve tonnes per deck
The entry-level HC-G6053S carries 3 t on each of its four power-assisted cantilever arms, giving 12 t on a single level. Need more? Step up to the HC-G9055S and you have 5 t per arm, 20 t per tier. Add a fifth deck, or sixth, or twelfth – the bolt-on arm system lets you reconfigure overnight without a welding crew. Arms slide on cold-rolled rails, so one operator can adjust a 9 m beam in under thirty seconds, then lock it with a hardened steel pin rated at 9 t shear. The result: you can land a 12 m bundle of stainless or a stack of epoxy-coated line-pipe and have it secured faster than the truck driver can drink his coffee.
Safety engineered, not added later
A 3° backward tilt is pressed into every arm during CNC forming; gravity keeps tubes centred without extra straps. The top lip is rolled 40 mm to stop bundles from skating forward when the forklift brakes. Base plates are 12 mm plate, laser-cut with a 180 mm fork pocket so the entire loaded rack can be relocated by telehandler. Optional LED traffic lights and photocell barriers turn the aisle into a controlled zone – flashing amber while an arm is extended, solid red while a load is in motion. CE Machinery Directive 2006/42/EC, UE structural code EN 1993-1-1 and ISO 9001:2015 are met and documented; certificates ship with every rack.
Customisable to your workshop, starting at $3,698
That price buys you a single-sided, four-tier HC-G6053S delivered to most EU or North-American ports. From there you choose:
- Manual or 24 V electric traverse – 180 W planetary motor with hand-held pendant
- Arm lengths 600, 800, 1000 or 1200 mm; depths 400, 600 or 800 mm
- Hot-dip galv, two-part epoxy or duplex finish for offshore use
- Colour-coded arms for alloy segregation or Kanban sequencing
- Bolt-on mesh, timber or steel decking if you also store plates or boxes
We keep raw sections in stock, so a custom height, width or load rating leaves our Jiangsu plant in 15–20 business days – weeks faster than European lead times.
Real-world footprint
HC-G6053S overall size: 6 435 × 3 340 × 1 550 mm (L × W × H). Fork entry height 330 mm, so any 2.5 t forklift can drive in. Column centres at 1 800 mm match standard truck widths, letting you unload directly from either side. Double-sided HC-G6053D adds only 200 mm to height yet doubles face capacity without doubling floor space – a 40 % saving compared with two single racks.
Outdoor pipe Storage Rack that pays for itself
Customers report an average 28 % drop in handling time and a 35 % reduction in yard footprint. One fabricator in Rotterdam stacked 1 800 t of 219 mm line-pipe on 22 racks where 42 A-frames stood before, freeing 1 100 m² for additional production bays. Payback arrived in eleven months – calculated only on rent saved, before counting faster turnaround or reduced damage claims.
Certified, traceable, insurable
Each welded joint is MPI tested, each column batch is Charpy verified at –20 °C. A unique laser-etched QR code on every upright links to a digital dossier: mill test certificates, galvanising thickness report, load test video, and declaration of conformity. Your insurer can audit in minutes, not days.
