Custom Gantry Manipulator & Intelligent Robotic Arm: Precision Automation for Laser Cutting Workflows
When standard automation falls short, manufacturers turn to tailored solutions—and that’s where the Custom Gantry Manipulator Intelligent Manipulator excels. Designed for complex, high-mix production environments, this advanced handling system delivers unmatched flexibility, speed, and intelligence in managing sheet metal for fiber laser cutting applications.

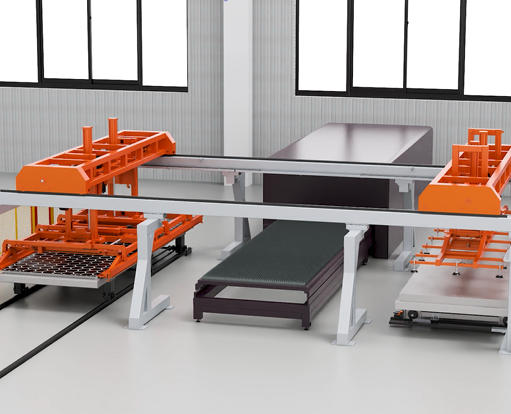

Unlike off-the-shelf robotic arms, this gantry-style manipulator is engineered from the ground up for heavy plate handling. Its three-axis configuration covers working envelopes up to 5,200 mm, accommodating large-format sheets commonly used in construction, shipbuilding, and industrial machinery. With a rated payload of up to 3,000 kg and structural reinforcement via dual or multi-beam frames, it handles thick steel plates with ease while maintaining sub-millimeter repeatability (±1 mm).
What truly sets this system apart is its intelligent control architecture. Built on a fieldbus network with absolute encoders, it communicates seamlessly with upstream and downstream equipment—including tower silos, conveyors, and multiple laser cutters. There’s no need to return to a home position after power-up, drastically reducing startup delays. Operators benefit from a standard teach pendant that simplifies offline programming, while engineers can implement remote monitoring and predictive maintenance via Ethernet connectivity.
The manipulator’s modular design allows horizontal or vertical integration, adapting to spatial constraints without compromising performance. Whether mounted overhead or floor-supported, it maintains optimal kinematic efficiency. Standard parallel cylinders minimize wear on transmission components, extending service life and reducing total cost of ownership.
Crucially, this system supports automatic small-part cutting workflows, where delicate or nested components require careful handling to prevent deformation or loss. The combination of gentle vacuum pickup and controlled rake unloading ensures even intricate geometries are processed reliably.
Moreover, by linking to a centralized storage warehouse with 8–13 levels, the manipulator enables just-in-time material delivery based on real-time production schedules. This eliminates overstocking, reduces floor clutter, and enhances workflow transparency.
For companies aiming to deploy automatic loading and unloading operations of multiple cutting equipment under one coordinated system, the Custom Gantry Manipulator offers a scalable, future-ready foundation. It doesn’t just move metal—it orchestrates an entire production symphony with precision, intelligence, and unwavering reliability.
