Structural Integrity: Built for the Long Haul

The “Heavy Duty” designation of the Herochu system is backed by substantial engineering. The main structure is designed to handle immense point loads. With a capacity of 3 tonnes to 5 tonnes per layer, and a total system capacity reaching 500 tonnes, the structural members (columns, beams, and guide rails) are significantly more robust than standard shelving.

The system utilizes a gantry design that distributes loads efficiently. The use of linear guide rails ensures that the lateral forces generated during acceleration and deceleration are absorbed by the floor-embedded tracks rather than the racking uprights. This separation of function—storage vs. movement—enhances the longevity of the installation.

Furthermore, the system is designed for durability in harsh environments. Industrial warehouses often contain dust, metal shavings, and temperature variations. The chain drive mechanism, chosen over belt drives, offers superior resistance to these environmental factors. The maximum vertical lifting speed of 9 m/min is deliberately controlled to minimize dynamic shock loading on the structure, preserving the integrity of the welds and bolts over decades of operation.

The “Smart” Aspect: Data-Driven Stability

What elevates this from a “dumb” steel structure to a “Smart Warehouse” is the decision-making layer. The Herochu system does not just hold weight; it manages it.

The Warehouse Control Software (WCS) continuously monitors variables such as:

1. Inventory Age: Tracking how long a profile has been in storage (FIFO/FEFO management).
2. Access Frequency: Identifying “fast movers” vs. “slow movers.”
3. Load Weight: Real-time monitoring of the weight distribution across the 8-13 levels.

This data allows for Dynamic Slotting Optimization. During quiet periods, the system can autonomously reshuffle inventory. For example, if a specific pipe size is suddenly required for a large project, the system can move those bundles closer to the inlet/outlet station before the order is even fully processed. This proactive behavior reduces the cycle time during peak hours.

Safety and Throughput

In a heavy-duty environment, safety is paramount. The gantry system eliminates the need for forklifts to enter the storage racks, removing the risk of column strikes—a leading cause of warehouse accidents. The operator stays at the ergonomic inlet/outlet station, while the machine handles the heavy lifting.

Despite the heavy loads, the system maintains a respectable throughput. With an inlet/outlet speed of 12 m/min and the ability to handle multiple picks per cycle, the system can easily manage the intake and output requirements of a busy steel service center or manufacturing plant.

Conclusion

The Herochu system proves that “heavy duty” does not mean cumbersome. By integrating high-capacity steel structures with intelligent software and precise gantry robotics, it delivers a Heavy Duty Smart Warehouse solution that is safe, durable, and operationally superior to traditional methods.

This article examines the build quality, material specifications, and long-term value proposition of these specialized storage racks.

Built for the Heavy Hitters

The term “Durable” in the context of industrial racking is defined by load capacity and structural integrity. These racks are designed to handle the “heavy hitters” of the metal world: 6-meter long steel plates, thick aluminum armor, and dense copper sheets.

Structural Composition:
The durability begins with the raw materials. High-quality racks use cold-rolled steel or structural steel grades like Q235. The columns (uprights) are often formed from heavy-gauge C-steel or rectangular tubing (e.g., 100804.0mm). This provides the rigidity needed to support loads ranging from 1 ton to 20 tons per layer without bowing or twisting.

The drawers themselves are equally robust. They are typically constructed from welded steel channels or I-beams (e.g., 100*68 I-beam). This lattice-like structure provides high strength-to-weight ratio, ensuring the drawer itself doesn’t become the weak link when holding tons of metal.

The Science of Surface Protection

Durability is also about resistance to the environment. Metal fabrication shops can be corrosive environments, with humidity, oils, and chemical vapors present. A standard painted rack would rust and degrade quickly.

The Coating Process:
Top-tier Durable Sheet Metal Drawer Storage Racks undergo a rigorous surface treatment process:

1. Pickling and Phosphating: This chemical process removes rust, scale, and oil from the steel surface and creates a microscopic layer that improves paint adhesion.
2. Electrostatic Powder Coating: The final finish is applied using an electrostatic charge, which ensures the powder adheres evenly to every nook and cranny. The rack is then baked, curing the coating into a hard, plastic-like shell.

This finish is not just cosmetic; it is a barrier against corrosion. It also makes the rack easier to clean. In a clean-room environment or a precision machining center, dust and dirt are enemies. The smooth, coated surface of the drawers prevents dust accumulation and allows for easy wiping.

Long-Term ROI and Inventory Control

Durability isn’t just about the physical rack; it’s about the durability of your inventory control. In a chaotic storage environment, materials get lost, damaged, or forgotten. This leads to “dead stock”—money tied up in metal that sits unused because no one could find it.

By organizing metal into Durable Sheet Metal Drawer Storage Racks, you create a visible, accountable system.

• Inventory Visibility: Because every drawer is labeled and accessible, stocktaking becomes a simple visual check.
• FIFO Management: First-In-First-Out inventory management is enforced naturally. You load from the back (or top) and retrieve from the front (or bottom), ensuring older stock is used first.
• Damage Reduction: As mentioned previously, the separation of sheets prevents scratching. For expensive materials like stainless steel or titanium, preventing surface damage on just a few sheets can pay for a significant portion of the rack’s cost.

Certifications and Standards

When selecting a durable storage solution, certifications matter. Reputable manufacturers produce racks that comply with international standards such as ISO9001 (Quality Management) and CE (European Conformity).

These certifications indicate that the rack has been designed with safety factors in mind. For example, a rack rated for 3 tons is likely engineered to hold significantly more before reaching its yield point. This “over-engineering” is a hallmark of durability, providing a safety buffer against accidental overloading.

Installation and Adaptability

A durable rack must also be durable in its configuration. As your business grows, your storage needs change. These racks are typically modular. They are assembled using high-strength bolts (e.g., 8.8 grade) rather than welding.

This bolted connection offers two advantages:

1. On-Site Adjustment: The beam levels can be adjusted to accommodate different drawer heights. If you switch from storing thin sheets to thick plates, you can reconfigure the rack in hours.
2. Relocation: If you move facilities, the rack can be disassembled, moved, and reassembled without losing structural integrity.

Conclusion

Choosing Durable Sheet Metal Drawer Storage Racks is a decision to prioritize quality and safety. It is an acknowledgment that your raw materials are valuable and deserve a storage system that protects them. With their heavy-gauge construction, corrosion-resistant finishes, and modular design, these racks are built to serve as the backbone of your warehouse operations for years to come.

The “Floating” Load Concept

The defining characteristic of a Pneumatic Lifting Manipulator is its ability to balance the weight of a load, effectively making it weightless to the operator. This is achieved through a system of pneumatic cylinders and pressure regulators that counterbalance the gravitational force of the object being lifted.

When an operator applies a slight upward force, the system detects the change and assists in the lift. Conversely, a slight downward force initiates a descent. This intuitive control scheme eliminates the “jarring” effect often associated with electric chain hoists, where the load can swing or jerk unexpectedly. The result is a smooth, continuous motion that allows for the precise positioning of parts, even by unskilled operators.

Design Flexibility: Pillar, Wall, and Mobile

The Pneumatic Lifting Manipulator is not a monolithic machine but a modular system that can be configured to fit the specific layout of a facility.

Pillar Mounted:
This is the most common configuration, where the manipulator is fixed to a concrete foundation. It offers the highest stability and load capacity, making it ideal for heavy-duty applications like handling engine blocks or large molds. The pillar can be equipped with a rotation stop to limit the working area if necessary.

Wall Mounted:
For facilities with limited floor space, wall-mounted manipulators provide an excellent solution. They free up valuable floor real estate while still providing a large working radius.

Mobile Platform:
Perhaps the most versatile configuration is the mobile manipulator. Mounted on a heavy-duty base with forklift pockets, these units can be moved from one workstation to another. This is particularly useful in job shops or assembly lines where the lifting requirement changes daily. A single mobile Pneumatic Lifting Manipulator can service multiple machines, offering a high return on investment.

Integration with Custom Grippers

The true power of the Pneumatic Lifting Manipulator lies in its end-of-arm tooling. The manipulator arm itself is simply a carrier; the gripper is what interacts with the product. Because these systems are designed for versatility, they can be equipped with a vast array of custom tools.

Vacuum Grippers:
For handling glass, plastic sheets, or cardboard boxes, vacuum cups are the standard. They provide a non-marking hold and can be arranged in various patterns to accommodate different load sizes.

Mechanical Clamps:
For irregular shapes, such as castings or forgings, mechanical clamps can be used. These can be actuated pneumatically to squeeze the part securely.

Forks and Hooks:
For palletized goods or items with lifting eyes, standard fork or hook attachments can be utilized.

Specialized Tools:
In the paper industry, manipulators are used with shaft grippers to handle rolls of paper. In the automotive industry, they might use suction cups specifically shaped for windshields. The Pneumatic Lifting Manipulator is designed to interface seamlessly with these bespoke tools, providing the necessary torque absorption and balance.

Safety and Reliability

Safety is paramount in the design of the Pneumatic Lifting Manipulator. These machines are often CE-certified, meaning they meet rigorous European safety standards.

Fail-Safe Braking:
In addition to air cut-off protection, these systems often feature mechanical brakes that engage if the lifting speed exceeds a safe limit.

Ergonomic Handles:
The control handles are designed to reduce fatigue. They are often adjustable and equipped with “dead man” switches, ensuring that the machine only operates when the operator is actively holding the controls.

Visual Indicators:
Pressure gauges and warning lights provide immediate feedback to the operator regarding the system’s status. If the vacuum is low or the air pressure is insufficient, the system will not allow the lift to proceed.

Conclusion

The Pneumatic Lifting Manipulator is a testament to the power of ergonomic engineering. By reducing the physical strain on workers and increasing the speed and precision of material handling, it delivers tangible benefits to any industrial operation. Whether mounted on a pillar or a mobile base, this machine is an essential tool for modern, efficient manufacturing.

This article explores why this specific rack design is the industry standard for steel mills, aluminum profile processors, and construction supply yards.

Designed for Length: 6m to 12m Capacity

The geometry of this rack is dictated by the length of the materials it holds.

• The Span: The rack is engineered to support materials ranging from standard 6-meter lengths up to massive 12-meter (40ft) structural components.
• The Support: Long materials require consistent support to prevent “sagging” or bending under their own weight. The telescopic arms provide this support across the length of the pipe, distributing the load evenly back to the heavy-duty carbon steel columns.

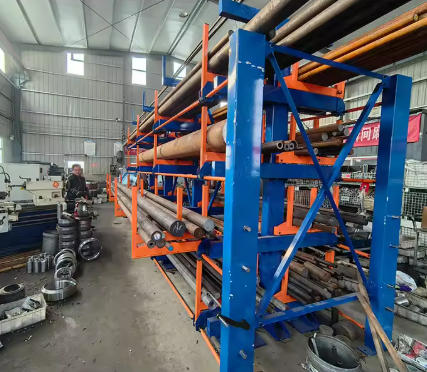

The “Roll-Out” Mechanism: A Game Changer

The standout feature of this system is the Roll out Telescopic action.

• How it Works: The arms slide out on heavy-duty tracks. This 100% extension capability means the load is fully exposed.
• Why it Matters: When using an overhead crane to lift a 12-meter pipe, the crane needs vertical clearance. If the arms were fixed, the crane cables would hit the arms above. With the telescopic rollout, the arms can be positioned to allow the crane to lift the load straight up, or the load can be pulled out horizontally.
• Safety: This eliminates the need for workers to “shimmy” pipes out from the bottom of a stack, a leading cause of warehouse injuries.

Heavy-Duty Construction for Industrial Use

This is not light-duty shelving. It is a Heavy-Duty Adjustable Pipe Cantilever Shelves for High-Load Storage system.

• Load Ratings: With a single-layer capacity of 3-8 tons and a single-arm capacity of 6 tons, this rack handles the heaviest industrial loads.
• Durability: Made from Carbon Steel with a protective finish (customizable colors like white or blue), it resists the wear and tear of metal-on-metal contact common in pipe storage.

Optimizing the “Cube”

Most warehouses have high ceilings but limited floor space. Ground stacking long pipes wastes the vertical air.

• Vertical Density: By stacking pipes on 4 to 12 layers, you utilize the full height of the building.
• Space Reclamation: This system can reduce the footprint of your pipe storage by up to 50%. The space saved can be converted into new production lines or assembly areas, directly impacting the bottom line.

Customization and Configuration

We understand that “one size” does not fit all.

• Layer Count: Choose between 4 to 12 layers based on your ceiling height and forklift reach.
• Layout: Choose Single-Sided (for walls) or Double-Sided (for central aisles).
• Integration: The system can be integrated with automated loading systems or robotic arms for a fully automated material flow, compatible with laser cutting machines and processing centers.

Why Buy Direct?

As a manufacturer with 15+ years of experience, we offer advantages that distributors cannot:

• Free Design Services: Send us your warehouse dimensions and material list; we will design the layout.
• Quality Control: ISO 9001 and CE certified production ensures safety.
• Global Support: We send technicians worldwide for installation.

Conclusion

If you are storing 6m, 9m, or 12m pipes, the Roll out Telescopic Cantilever Pipe Rack is the only logical choice. It combines the strength to hold tons of steel with the intelligence to maximize your warehouse space.

Our New Cantilever Racks For Sale are engineered with the latest technology and design innovations, ensuring that they meet the highest standards of quality and performance. Each rack is made from high-quality cold-rolled steel, which is thick, durable, and resistant to corrosion, rust, and wear. This sturdy construction ensures that the racks can withstand the rigors of industrial use, including exposure to heavy loads, moisture, and harsh chemicals. The cantilever arms are designed to support weights of up to 3000kg per arm, making them ideal for heavy-duty storage applications. Additionally, the racks are built to last, reducing the need for frequent replacements and providing long-term value for your business.

One of the key features of our New Cantilever Racks For Sale is their customizable design, which allows you to tailor the racks to your specific storage needs. We offer a wide range of sizes, including different arm lengths, column heights, and load capacities, to ensure that the racks fit perfectly in your warehouse space. Whether you need a small, compact unit for a tight space or a large, industrial-grade system for high-volume storage, we have the perfect solution for you. Additionally, the racks can be configured as single-sided or double-sided units, allowing you to maximize space based on your available floor area. We also offer a variety of color options, allowing you to match the racks to your warehouse’s aesthetic or use color coding to organize different types of materials.

Space efficiency is a top priority for modern warehouses, and our New Cantilever Racks For Sale are designed to maximize the use of available space. The cantilever design eliminates front column obstruction, allowing for end-loading of long materials and maximizing vertical storage space. By storing materials vertically, you free up valuable floor space for other operations, such as loading, unloading, and material handling. This not only improves the flow of materials through your warehouse but also reduces bottlenecks and improves overall operational efficiency. Additionally, the easy accessibility of materials stored on cantilever racks reduces the time and effort required to retrieve items, further enhancing productivity.

Safety is a critical consideration in any industrial setting, and our New Cantilever Racks For Sale are designed with safety features to protect both workers and inventory. The inclined arms of the racks prevent round materials like pipes and tubes from rolling, while pipe stops at the end of each arm prevent materials from sliding off during vibration or when forklifts approach. The sturdy base legs of the racks provide maximum stability, preventing tipping or collapse even when fully loaded. Additionally, the racks keep materials off the floor, reducing the risk of tripping hazards and preventing damage to materials from moisture or debris. By providing a secure, organized storage solution, these racks help create a safer working environment for your employees.

Our New Cantilever Racks For Sale are suitable for a wide range of industries and applications. In industrial warehouses, these racks are used to store pipes, tubes, bars, and other long materials, ensuring that inventory is organized and easily accessible. In construction supply companies, they provide a convenient way to store rebar, conduit, and other construction materials. Steel distribution centers use these racks to store steel bars, pipes, and tubes of various sizes and weights, while manufacturing facilities use them to store raw materials and work-in-progress. Even small businesses that handle a moderate amount of long materials can benefit from these racks, as they provide a cost-effective way to organize inventory and save space.

When you purchase our New Cantilever Racks For Sale, you not only get a high-quality storage system but also professional service and support. Our team of experts is dedicated to helping you find the perfect storage solution for your business. We offer free consultations to assess your storage needs, including the types and weights of materials you need to store, the available space in your warehouse, and your operational workflow. We can help you design a customized rack system that meets your exact requirements, and we provide professional installation services to ensure that the racks are installed correctly and safely. Additionally, we offer comprehensive after-sales support, including maintenance services, replacement parts, and technical assistance, to ensure that your system continues to perform at its best.

Our New Cantilever Racks For Sale are competitively priced, making them a cost-effective storage solution for businesses of all sizes. We understand that budget is a concern for many businesses, and we strive to offer high-quality products at affordable prices. Additionally, the long lifespan and low maintenance requirements of our cantilever racks help reduce long-term costs, making them a smart investment for your business. Whether you are a small business looking to upgrade your storage system or a large industrial facility in need of a high-volume storage solution, our New Cantilever Racks For Sale are the perfect choice.

In comparison to other storage solutions on the market, our New Cantilever Racks For Sale offer distinct advantages. Traditional storage racks are not designed for long, heavy materials, and they often lack the flexibility and durability needed for industrial use. Our cantilever racks, on the other hand, are purpose-built for these materials, providing a secure, accessible, and space-efficient storage solution. Their customizable design, high load capacity, and safety features make them the ideal choice for modern warehouses. Additionally, our professional service and support ensure that you get the most out of your storage system, helping you improve efficiency, enhance safety, and reduce costs.

Investing in our New Cantilever Racks For Sale is a smart decision for any business that needs to store long, heavy materials. These racks provide the strength, durability, and flexibility you need to keep your operations running smoothly, while improving safety, efficiency, and inventory management. With their competitive pricing, professional service, and long-term value, they are the perfect storage solution for modern warehouses. Whether you are looking to upgrade your existing storage system or implement a new one, our New Cantilever Racks For Sale are designed to meet your needs and help your business thrive.

In conclusion, our New Cantilever Racks For Sale are the ultimate storage solution for modern industrial warehouses. Their sturdy construction, high load capacity, customizable design, space-saving features, and safety features make them the ideal choice for businesses that handle long, heavy materials. With professional service and support, competitive pricing, and long-term value, these racks are a smart investment for any business looking to improve their storage operations. Contact us today to learn more about our New Cantilever Racks For Sale and how they can benefit your business.

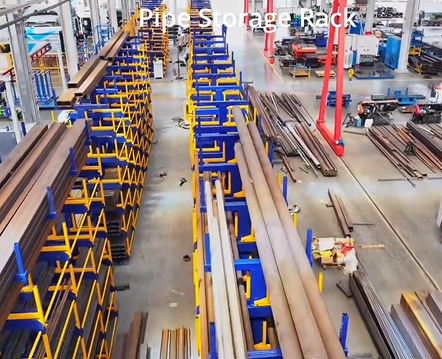

The Vertical Advantage

Traditional floor stacking is the enemy of space efficiency. When pipes are laid flat on the ground, they occupy a massive footprint relative to their weight. A bundle of 6-meter pipes might take up 10 square meters of floor space, rendering that area useless for anything else.

By implementing a Pipe Racks and Storage Systems strategy that focuses on vertical height, warehouses can dramatically increase their storage density. Cantilever racks are uniquely suited for this because they do not require front columns. This allows the rack to be placed in the middle of a room, accessible from both sides, or pushed against a wall.

With a Vertical Pipe Storage Rack, the same bundle of pipes that occupied 10 square meters on the floor can now be stored on a single level of a rack that is 4 meters high. By adding three more levels above it, you have quadrupled your storage capacity within the exact same floor footprint. This “cube utilization” is the gold standard of modern warehousing.

Accessibility and Workflow

Beyond just fitting more stuff into a room, vertical racking improves the flow of materials. In a floor-stack scenario, retrieving a specific pipe often requires moving other pipes out of the way. This “dig-out” process is time-consuming and labor-intensive.

Industrial Pipe Racking Systems offer direct access to every load.

1. FIFO and LIFO: Whether you need First-In-First-Out or Last-In-First-Out inventory management, cantilever racks support it. You can access the oldest stock without moving the newest stock.
2. Forklift Efficiency: The open design allows forklifts or sideloaders to drive right up to the rack and deposit the load in seconds. There is no shuffling or rearranging required.
3. Visual Management: When inventory is elevated, it is easier to see. Warehouse managers can perform cycle counts rapidly because every bundle is visible and distinct.

Stackable and Modular Designs

Modern storage needs are dynamic. A warehouse might store 2-inch PVC pipes today and 6-inch steel casings tomorrow. Stackable Pipe Racks and modular cantilever systems offer the flexibility to adapt.

The “stackable” nature refers to the ability to configure the arms at different heights on the column. If you are storing small diameter tubes, you can place the arms closer together to maximize levels. If you switch to large diameter ducting, you can simply unbolt the arms and move them to a wider spacing.

This modularity extends to the width of the system as well. Bar And Pipes Storage Racks can be expanded by adding more bays (the space between two columns). If your business grows and you acquire more inventory, you don’t need to buy a whole new system; you simply bolt on additional columns and arms to extend the row.

Customization for Specific Loads

Not all long loads are the same. A Cantilever Steel Tubing & Pipe Storage Rack can be customized with specific accessories to handle unique items.

• Pipe Stops and Dividers: As mentioned previously, stops prevent rolling. Dividers can be added to the arms to separate individual pipes, keeping them organized and preventing them from nesting inside one another.
• Decking: While cantilever arms are open, you can add steel decking or wire mesh to the arms if you need to store smaller, loose fittings alongside the long pipes.
• Double-Sided Configurations: For maximum density, Warehouse Pipe Racks can be set up back-to-back. This creates a continuous storage block where the columns are shared, reducing the amount of steel required and maximizing the use of the aisle space.

Conclusion

The shift toward Pipe Racks Storage Systems that emphasize verticality is a strategic move for any growing business. It solves the dual problems of space scarcity and retrieval inefficiency. By adopting a modular, vertical approach, warehouses can protect their inventory, speed up their operations, and prepare their facilities for future growth without the need for costly building expansions.

Durability is the foundation of this sheet metal rack, engineered to withstand the harshest industrial conditions and heavy daily usage. Unlike flimsy, lightweight shelves that bend or break under heavy loads, this rack is built with industrial-strength construction from top to bottom. The main support frame uses high-quality Q235B carbon steel, a material chosen for its exceptional load-bearing capacity, impact resistance, and corrosion tolerance. This premium steel prevents warping, cracking, and rusting, even in workshops with high humidity, dust, or mild chemical exposure. Every weld joint is crafted using carbon dioxide shielding welding, a professional technique that creates strong, stable connections that will not loosen over time. The result is a storage rack that maintains its structural integrity for decades, even with constant loading, unloading, and drawer movement.

The heavy-duty slide rail system further enhances durability and operational smoothness. Precision-engineered steel slide rails ensure drawers glide in and out effortlessly, even when fully loaded to maximum capacity. The rails are designed to resist jamming, sticking, and wear, maintaining smooth performance through years of heavy use. This reliable sliding mechanism eliminates the frustration of stuck drawers and costly downtime, keeping workshop operations running smoothly. Combined with a reinforced base and stable footing, the rack remains steady and secure at all times, preventing tipping or shifting even during intense material handling.

Efficiency is the second core pillar of this storage solution, addressing two critical workshop needs: space efficiency and workflow efficiency. Traditional metal sheet storage relies on flat stacking, which consumes massive amounts of floor space, clogs walkways, and limits production layout. This sheet metal rack uses a vertical, multi-layer drawer design that maximizes vertical space, turning unused overhead space into valuable storage area. By compacting storage into a small footprint, the rack frees up valuable workshop floor space for machinery, assembly lines, and employee movement. This 3D storage upgrade can increase overall workshop space utilization by up to 60% compared to traditional stacking methods, making it ideal for small, crowded workshops and large industrial facilities alike.

Workflow efficiency is equally impressive, thanks to the intuitive, user-friendly operation system. The rack supports both manual mechanical operation and electric automatic operation, catering to different workshop preferences and needs. The hand-crank manual system is simple to use, requiring minimal force to extend or retract drawers, making it accessible for all workers. The electric automatic option offers one-touch control, allowing fast, effortless drawer movement with zero physical exertion. Workers can access any single layer independently without moving other sheets, cutting down retrieval and storage time drastically. Compatibility with forklifts, cranes, and vacuum lifters streamlines material handling, enabling one-person operation and reducing labor needs. This speed and ease of use directly boost production efficiency, cutting down wait times and keeping production lines on schedule.

Material protection is another key efficiency feature that reduces costs and waste. A major downside of traditional stacking is the inevitable damage to metal sheets: scratches, dents, bending, and surface abrasion ruin precision materials and lead to high scrap rates. This drawer-type rack eliminates these issues by storing each sheet on a separate, flat drawer pallet. No overlapping, no squeezing, no friction—each sheet is fully protected from physical damage. For high-value, precision-cut sheets, this protection preserves material quality, reduces waste, and saves businesses thousands in replacement costs. Additionally, the organized storage prevents sheets from shifting or falling, reducing workplace accidents and creating a safer working environment for all staff.

Inventory management efficiency is greatly improved with this sheet metal rack, as it supports strict FIFO (First-In-First-Out) inventory rotation. In stacked storage, older inventory is often buried and forgotten, leading to oxidation, rust, and obsolete materials. With easy access to every drawer, workers can quickly retrieve older sheets first, maintaining fresh inventory and preventing material expiration. This reduces excess stock, minimizes waste, and optimizes inventory turnover, improving cash flow and resource management. The clear, organized layout also makes inventory checks faster and more accurate, eliminating time-consuming searches through messy stacks.

This sheet metal rack offers unmatched versatility, with a full range of standard specifications and fully customizable options to fit unique business requirements. Standard storage sizes cover the most popular industrial sheet dimensions: 3000*1500mm, 4000*1500mm, 4000*2000mm, and 6000*2000mm. Custom sizes are available for non-standard sheets, ensuring a perfect fit for any material. Load-bearing capacity ranges from 3 tons to 6 tons per layer for standard models, with custom heavy-duty models supporting up to 20 tons per layer for ultra-heavy sheets. Drawer quantity can be adjusted from 2 to 10 units, and layer spacing is customizable to match sheet thickness, making the rack adaptable to any storage volume or material type.

Visual and functional customization adds to the rack’s appeal, with a choice of industrial-grade colors and operational systems. Standard colors are vibrant orange and blue, which are highly visible, stain-resistant, and long-lasting. Custom color options are available to match company branding or workshop design schemes. Operation systems can be tailored to manual mechanical or fully automatic electric, based on workshop workflow and budget. This level of customization ensures the rack not only performs flawlessly but also aligns with a business’s unique operational and aesthetic needs.

Built under strict ISO9001 quality management standards, this sheet metal rack meets rigorous international quality norms, ensuring reliability and consistency. Every component is tested for strength, durability, and safety before assembly, and finished units undergo full load testing to guarantee performance. This strict quality control gives businesses confidence that they are investing in a premium, long-lasting product. For shipping and delivery, the rack is packed with professional protective materials to prevent scratches, dents, and damage during transit. Timely, secure delivery ensures the product arrives in perfect condition, ready for installation and use.

This storage solution is suitable for a vast array of industrial applications, making it a must-have for any business handling metal sheets. Metal fabrication workshops use it for storing raw and cut sheets for laser cutting, bending, and stamping. Automotive manufacturing facilities rely on it for storing large body panels and structural steel sheets. Aerospace factories use it to protect high-grade alloy sheets for critical aircraft components. It is also widely used in construction, hardware production, electrical engineering, and furniture manufacturing. No matter the industry, this sheet metal rack delivers the durability and efficiency needed to streamline operations.

Investing in this sheet metal rack means investing in long-term operational improvement. It solves common storage problems, protects valuable materials, saves space, speeds up workflows, and reduces costs—all while providing decades of reliable service. Unlike cheap, temporary storage solutions that need frequent replacement, this heavy-duty rack offers a permanent, high-return investment. For businesses aiming to boost productivity, reduce waste, and create a safer, more organized workshop, this sheet metal rack is the ultimate storage solution that combines durability and efficiency in one robust package.

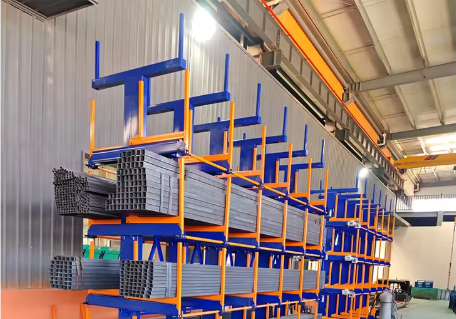

Why Choose Cantilever Racking Systems?
Cantilever racking systems are excellent for large, bulky, long, or oddly-shaped materials. Unlike standard selective racks that rely on horizontal beams, cantilever racks utilize arms extending from a vertical column. This design is ideal for pipes, bar, round and square tubing, steel angle, lumber, poles, steel plate, wood, sheet steel, and structural steel. The primary advantage is the ability to store items of non-uniform size and length without the constraints of fixed beam positions. This flexibility makes Cantilever Racking systems for storing longer items the industry standard for metal service centers and construction supply warehouses.

The Pipe and Profile Storage Set with Telescopic Cantilever Racks takes this a step further by integrating mobility into the storage equation. By allowing the arms to roll out into the aisle, these systems eliminate the “dead space” associated with deep-lane storage. Operators can quickly identify, access, and retrieve specific pipe diameters or profiles without having to move surrounding materials. This level of selectivity is crucial for just-in-time manufacturing and distribution centers where speed is critical.

Industrial Strength and Safety Features
Safety is paramount when handling heavy, elongated materials. Our Industrial Cantilever Pipe Racking Racks are built with premium carbon steel (Q235), featuring a modular, adjustable design composed of upright columns, telescopic arms, fixed shelves, and a transmission frame. The reinforced columns and double-layer arms ensure safety even under full load, preventing catastrophic failures that can occur with inferior racking.

The standout feature of this steel structure is its retractable arm mechanism. This design maximizes accessibility while keeping floor space efficient. When extended, the arms provide a stable platform for loading; when retracted, they consolidate the stored materials to maintain a narrow footprint. This is particularly beneficial for storing materials like steel tubing, which can be prone to rolling or shifting. The system protects and helps prevent damage to longer items by keeping them securely cradled in the arms rather than stacked loosely on the floor.

Customization and Aesthetic Appeal
A one-size-fits-all approach rarely works in industrial storage. The system is fully customizable, allowing businesses to tailor dimensions, load capacities, and finishes to their specific requirements. If your operation requires a specific height to accommodate a 9-meter beam, or a unique load capacity for composite materials, the racking system adapts to your workflow. You can customize the number of layers based on product characteristics, optimizing space and efficiency.

Beyond performance, the professional appearance of a warehouse contributes to a company’s brand image. The sleek electrostatic powder-coated finish—available in standard colors like blue or red—combines durability with a professional aesthetic. This finish is resistant to chipping, corrosion, and the wear and tear of daily industrial use, ensuring that your Cantilever Steel Bar, Tubing & Pipe Storage Racks look as good as they perform for years to come.

Operational Efficiency and Cost Savings
The economic impact of switching to a cantilever system is significant. By repositioning products off the ground and onto racks, you free up valuable floor space that can be repurposed for additional production lines or inventory. The open-arm design eliminates vertical obstructions, making it ideal for storing pipes, rods, or panels of varying sizes without the need for complex rearranging.

Furthermore, the telescopic storage flexibility allows each arm to operate independently, extending or retracting fully. This offers easy access when paired with overhead cranes or hoists, streamlining material handling and reducing retrieval time. The unique locking mechanism allows for quick assembly and adjustment without the need for bolts or special tools, saving time and cost on installation and reconfiguration. Whether you opt for single-sided models for perimeter storage or double-sided models for high-density central storage, the return on investment is realized through reduced labor costs, improved inventory accuracy, and enhanced worker safety.

The fundamental flaw in traditional storage systems for long materials is the static nature of the shelving. Fixed arms require wide aisles for access, wasting valuable real estate. They also force a “last-in, first-out” or cumbersome “digging” approach to inventory retrieval. The Manual Telescopic Cantilever Racking system disrupts this status quo with its dynamic “roll-out” feature. Arms extend only when needed, allowing aisles to be narrowed to the absolute minimum required for the lifting equipment. This spatial efficiency can double the storage capacity of an existing facility, deferring the need for costly expansions or new leases. More importantly, it enables a “first-in, first-out” or random-access inventory model where any item can be retrieved instantly without disturbing others.

The impact on workflow is profound. Consider a steel service center that needs to fulfill urgent orders for specific pipe lengths. With traditional racks, a forklift driver might spend 15 minutes maneuvering and shifting bundles to reach the required item. With a telescopic system, the operator extends the relevant arm, engages the overhead crane, and removes the load in minutes. This reduction in retrieval time by up to 80% means that trucks are loaded faster, production lines are fed more consistently, and customers receive their orders sooner. The Optimize Workflow with Heavy Duty Telescopic Cantilever Rack strategy is not just about saving seconds; it is about creating a responsive, agile supply chain that can adapt to market demands in real-time.

Furthermore, the manual telescopic design offers a level of operational resilience that fully automated systems often lack. In the event of power failures or technical glitches, manual winches ensure that operations can continue uninterrupted. This reliability is crucial for industries where downtime translates to significant financial losses. The simplicity of the mechanical system also means lower maintenance requirements and fewer spare parts to manage. For warehouse managers, this translates to peace of mind and a predictable operational budget. The ability to customize the system to fit specific workflow patterns—such as single-side or double-side access—further enhances its utility, making it a versatile tool for diverse logistical challenges.

Uncompromising Strength for Heavy Industries

The phrase “heavy-duty” takes on a literal meaning when discussing the High Load Capacity Racks – Heavy-Duty Racking System designed for the steel and construction industries. These racks are engineered to support the immense weights associated with industrial raw materials. With a load capacity of 3 to 8 tons per layer, and customizable options up to 10 tons, they provide a secure home for the heaviest steel coils, thick plates, and large-diameter pipes. The structural design relies on high-grade carbon steel (GB-T Q235, Q345, 45#), ensuring that the racks can withstand continuous loading and unloading cycles without deforming or losing integrity.

The engineering behind these racks goes beyond simple material selection. The upright frames are constructed from structural H-beams and square tubing, welded to create a monolithic structure that distributes loads evenly. Diagonal bracing and connecting bars add lateral stability, preventing the rack from swaying under heavy loads or during seismic events. The telescopic arms are equally robust, featuring reinforced designs that prevent bending even when fully extended with maximum loads. Safety locks engage automatically to hold the arms in place, ensuring that the load remains secure until intentionally released.

The Safe Heavy Duty Telescopic Cantilever Rack for Long Materials is also designed with environmental durability in mind. Industrial warehouses can be harsh environments, exposed to moisture, dust, and temperature extremes. The powder-coated finish on these racks provides a tough barrier against corrosion and wear, extending the service life of the equipment. Available in various colors, this finish also helps in organizing the warehouse visually, with different colors potentially denoting different material types or storage zones. Certifications like ISO9001 and CE confirm that these racks meet rigorous international standards for quality and safety, giving users confidence in their performance.

Customization is key to maximizing the utility of these heavy-duty systems. Warehouses can specify the exact number of layers, the height between layers, and the length of the arms to match their inventory profile. Whether storing short cut-offs or 12-meter beams, the system can be tailored to eliminate wasted space and ensure optimal support for every item. The 30-day delivery cycle and professional installation services ensure that businesses can quickly integrate these racks into their operations, minimizing disruption and accelerating the return on investment.

Safety and Accessibility: A Dual Priority

Safety and accessibility are often seen as competing priorities in warehouse design, but the Manual telescopic heavy-duty cantilever rack for long-tube steel pipe storage rack proves that they can coexist harmoniously. The telescopic design inherently improves safety by eliminating the need for workers to climb racks or enter dangerous zones to access materials. All operations are conducted from the safety of the aisle, with the load brought within reach of the lifting equipment. The automatic locking mechanisms prevent accidental arm movement, protecting workers from falling loads.

Accessibility is the other side of the coin. The ability to access any item directly without moving others (100% accessibility) revolutionizes inventory management. This feature is particularly beneficial for businesses with high SKU counts or those that deal with custom-cut materials. It reduces the physical strain on workers, lowers the risk of musculoskeletal injuries, and speeds up the entire picking process. The clear aisles created by retracting the arms also improve visibility and traffic flow, reducing the likelihood of accidents involving forklifts or pedestrians.

The Optimize Workflow with Heavy Duty Telescopic Cantilever Rack approach also includes comprehensive support services. From initial design and engineering to on-site installation and staff training, manufacturers ensure that the system is deployed safely and effectively. Online guidance and detailed installation drawings help local teams understand the nuances of the system, fostering a culture of safety and competence. By prioritizing both safety and accessibility, these racks create a work environment where productivity thrives without compromising the well-being of the workforce.

Conclusion: The Future of Long Material Storage

As industries continue to push for greater efficiency and safety, the Heavy Duty Telescopic Cantilever Rack for Long Steel Tube Storage stands out as a premier solution. Its unique combination of space-saving design, immense load capacity, and operational flexibility makes it an ideal choice for modern warehouses. By adopting this technology, companies can optimize their workflows, reduce costs, and enhance safety, positioning themselves for success in a competitive global market. The future of long material storage is telescopic, and the time to upgrade is now.

The Challenge of Material Handling in Laser Cutting Facilities

In a typical laser cutting shop, sheets of steel, aluminum, copper, and brass arrive in various sizes and thicknesses. Traditional storage methods—stacking sheets horizontally on the floor or on basic pallets—create numerous inefficiencies. To access a specific sheet located at the bottom of a stack, workers must manually move heavier sheets on top, a process that is time-consuming, physically demanding, and risky. This not only slows down the feeding of the laser cutter but also increases the likelihood of surface scratches, dents, or warping, which can ruin the final product quality.

Furthermore, laser cutting machines often operate with automated loading systems that require precise positioning of sheets. Disorganized storage makes it difficult to feed these systems efficiently, leading to machine idle time and reduced throughput. As production volumes increase and just-in-time manufacturing becomes the norm, the need for a storage system that offers quick, safe, and organized access to individual sheets has become urgent.

Introducing the Drawer Type Sheet Shelving System

The Drawer Type Sheet Shelving System Stacking Racks Shelves for Laser addresses these challenges head-on. Inspired by the functionality of a giant filing cabinet, this system stores sheets in pull-out drawers or trays. Each drawer is designed to hold a single sheet or a small, manageable stack of identical sheets, allowing operators to access any specific material without disturbing the rest of the inventory.

This design is particularly advantageous for laser cutting operations where material variety is high. A single rack can store dozens of different grades, thicknesses, and sizes of metal, all clearly labeled and easily accessible. When a job requires a specific sheet, the operator simply pulls out the corresponding drawer, loads the sheet onto the laser cutter, and returns the empty drawer. This process eliminates the need for heavy lifting, reduces retrieval time from minutes to seconds, and ensures that the correct material is always selected.

Key Features Tailored for Laser Environments

High-Density Storage: Despite their accessibility, these drawer systems do not compromise on storage density. By utilizing vertical space effectively, a Heavy Duty Sheet Metal Storage Rack of the Industrial Warehouse with a drawer configuration can store significantly more material per square foot than traditional floor stacking. Models like the HC-B4015-63 and HC-B4020-65 are optimized for standard sheet sizes (4000x1500mm and 4000x2000mm), ensuring that every millimeter of warehouse space is utilized efficiently.

Robust Load-Bearing Capacity: Do not let the “drawer” concept fool you; these are not flimsy office supplies. Each drawer layer is engineered to support substantial weights, typically ranging from 3 tons to 6 tons per layer, depending on the model and customization. The Customized Heavy-Duty 5 Layer Steel Metal Storage Rack framework ensures that even when fully loaded with thick steel plates, the system remains stable and secure. The heavy-duty steel construction guarantees longevity, even in the demanding environment of a busy laser cutting shop.

Compatibility with Automation: Many modern Drawer Type Sheet Shelving Systems are designed with automation in mind. They can be integrated with semi-automated or fully automated retrieval systems that feed directly into laser cutting machines. This level of integration further reduces human intervention, minimizes errors, and maximizes machine uptime. For facilities looking to upgrade to Industry 4.0 standards, these racks provide the necessary infrastructure for smart material handling.

Safety and Ergonomics: Manual handling of heavy metal sheets is a leading cause of workplace injuries. By eliminating the need to lift and maneuver heavy stacks, the drawer system significantly improves worker safety. The smooth-gliding mechanism of the drawers, often equipped with dampeners and locking mechanisms, ensures controlled movement, preventing sudden shifts that could cause accidents. Additionally, the anti-slip surface of the drawers keeps sheets securely in place during storage and retrieval.

Customization for Optimal Performance

Just as no two laser cutting shops are identical, no two storage needs are the same. Our Heavy Duty Foldable Industrial Drawer Racks and fixed drawer systems offer extensive customization options to match your specific operational requirements.

Customized Layers and Configuration: We can tailor the number of drawers and their vertical spacing to accommodate your specific mix of material thicknesses. If your shop primarily works with thin gauge aluminum, we can configure more drawers with closer spacing. Conversely, if you handle thick steel plates, we can reduce the number of drawers but increase their individual load capacity up to 20 tons per layer.

Personalized Color Selection: Visual management is crucial in a fast-paced environment. Choosing distinct colors for different material types or job statuses can help operators quickly identify the right drawer. Our powder-coating options allow you to select from a wide palette to match your facility’s branding or organizational scheme.

Sheet Size Adaptability: Whether you are working with standard 3000x1500mm sheets or oversized 6000x2000mm plates, our system can be customized to fit. Models like the HC-B6020-66 are specifically designed to handle extra-long sheets, ensuring full support and preventing edge sagging that could affect cutting precision.

Real-World Impact on Productivity

Implementing a Drawer Type Sheet Shelving System Stacking Racks Shelves for Laser can yield immediate and measurable improvements in productivity. Shops report reduction in material retrieval times by up to 70%, allowing laser operators to focus on machining rather than material handling. The reduction in material damage due to improper stacking leads to less waste and lower material costs. Moreover, the improved organization reduces the time spent searching for materials, streamlining the entire production workflow.

In addition to operational gains, the safety benefits are profound. By reducing manual lifting and eliminating unstable stacks, the risk of workplace injuries drops significantly. This not only protects your workforce but also reduces insurance premiums and downtime associated with accidents.

Conclusion: A Strategic Asset for Laser Cutting Success

In the competitive world of metal fabrication, efficiency is the key to profitability. The Drawer Type Sheet Shelving System Stacking Racks Shelves for Laser is more than just a storage unit; it is a strategic asset that enhances the performance of your laser cutting operations. By providing quick, safe, and organized access to your sheet metal inventory, it unlocks the full potential of your laser equipment.

As we advance through 2026, manufacturers who adopt these advanced storage solutions will gain a distinct competitive edge. The ability to rapidly switch between jobs, minimize material waste, and maintain a safe working environment is invaluable. Whether you are a small job shop or a large-scale production facility, investing in a customized, heavy-duty drawer shelving system is a decisive step towards operational excellence and sustained growth. Embrace the future of material handling and transform your laser cutting workflow today.

Deep Dive into Customization: Layers, Load, and Dimensions

The core strength of a Customized Heavy-Duty 5 Layer Steel Metal Storage Rack lies in its flexibility. While the “5-layer” configuration is a popular starting point, the true power of these systems is the ability to modify every aspect to suit the user’s exact needs.

• Customized Layers: Manufacturers offer a wide range of layer configurations, from standard 5+1, 6+1, or 8+1 setups to completely bespoke arrangements with 3 to 10 drawers. This allows facilities to optimize vertical space based on the height of their inventory. For instance, a shop storing mostly thin gauge sheets might opt for more layers with smaller gaps, while a facility handling thick plates might choose fewer layers with greater vertical clearance.
• Adjustable Load-Bearing Capacity: Perhaps the most critical customization is the load capacity. When designing each layer, engineers take into account the need to withstand weights ranging from 3 tons to an impressive 20 tons. Models like the HC-B3015-63 might start at 3 tons per layer, but through reinforced framing and specialized slide rails, this can be scaled up significantly. This ensures that the rack is neither over-engineered (wasting money) nor under-engineered (risking safety), but perfectly matched to the specific weight of the materials being stored.
• Tailored Dimensions: The system accommodates a vast array of sheet sizes. Standard models support dimensions like 3000x1500mm, 4000x1500mm, 4000x2000mm, and 6000x2000mm. However, the customization extends to non-standard sizes as well. Whether you are storing oversized architectural panels or specific cut-offs, the rack can be built to fit the material, not the other way around. The single layer height is also adjustable, typically between 220mm and 300mm, allowing for dynamic adaptation to varying sheet thicknesses within the same unit.

Material Excellence: The Foundation of Durability

Customization isn’t just about dimensions; it’s also about the materials and finishes used to construct the rack. The backbone of these systems is high-quality carbon steel, specifically grade Q235B. This material is selected for its exceptional tensile strength and resilience, making it suitable for the most demanding industrial environments. The frame is assembled using carbon dioxide shielding welding, a technique that ensures all connections are robust and capable of transferring loads effectively without weak points.

For environments prone to moisture, chemical exposure, or simply for aesthetic alignment with corporate branding, the Customized Heavy-Duty 5 Layer Steel Metal Storage Rack offers personalized color selection. A heavy-duty powder-coated finish is applied, which serves a dual purpose: it provides a sleek, professional look and acts as a formidable barrier against corrosion. This Corrosion Protection Sheet Metal Storage Rack feature is essential for facilities located in coastal areas or those involved in processes that generate humidity or chemical fumes. By choosing a custom color, companies can also implement visual management strategies, color-coding racks for different material types or production zones to streamline workflow.

Operational Advantages: Efficiency and Safety in Design

A customized rack is designed with the end-user’s operation in mind. The integration of Roll Out & Drawer Design Stacking Racks and Shelves mechanics ensures that even heavily loaded custom configurations remain easy to operate. The steel slide rail technology is calibrated to the specific weight of each layer, ensuring smooth, effortless drawer extension and retraction. This enables single-person operation, which has been proven to increase storage and retrieval efficiency by 300% compared to traditional methods.

Safety is woven into the custom design process. Features like sliding guide rail locks and foot roll protection devices are standard, preventing overturning even when drawers are fully extended with maximum loads. The “zero-damage” storage concept is maintained through the use of inclined plastic support rails within the drawers, which create a buffer zone between sheets. This is particularly important for customized setups where a variety of materials with different surface finishes might be stored. The result is a system that not only fits the physical space but also enhances the safety and quality standards of the operation.

The Process: From Design to Installation

Achieving a truly customized solution requires a collaborative approach. Reputable manufacturers begin with a consultation to understand the specific requirements of the facility. They offer Free Design Drawings, utilizing CAD software to visualize the rack within the customer’s space, ensuring optimal fit and flow. This design phase considers everything from floor load bearing to aisle width and forklift access.

Once the design is approved, the manufacturing process begins, adhering to strict quality controls backed by ISO9001 and CE certifications. Every weld, screw, and interface is inspected by a dedicated quality team, with testing records maintained for every batch. The typical delivery cycle is around 30 days, after which the system is either installed on-site by trained technicians or supported through comprehensive online guidance. This end-to-end service ensures that the Customized Heavy-Duty 5 Layer Steel Metal Storage Rack is not just delivered, but fully integrated into the warehouse ecosystem, ready to perform from day one.

Conclusion: The Power of Tailored Storage

In an era where efficiency and asset protection are paramount, the Customized Heavy-Duty 5 Layer Steel Metal Storage Rack offers a superior alternative to generic storage solutions. By tailoring layers, load capacities, dimensions, and finishes to the specific needs of the business, facilities can unlock new levels of space utilization, operational speed, and material safety. Whether handling 3-ton sheets or 20-ton plates, storing standard sizes or unique custom cuts, these systems provide the robust, flexible foundation needed for modern industrial success. Investing in a customized rack is investing in a streamlined, safe, and profitable future for your warehouse operations.

The automation of sheet metal handling is no longer a luxury; it is a necessity for staying competitive. However, fabricators are often faced with a pivotal question: Should we invest in a full-scale Industrial Sheet Metal Handling Robot, or is a Flexible Pneumatic Lifting Manipulator for Manufacturing the smarter choice? The answer lies not in which technology is “better,” but which is “better suited” to your specific production environment.

Defining the Contenders

First, let’s clarify what we mean by these two categories.

• Industrial Sheet Metal Handling Robot: Typically refers to a multi-axis servo-driven arm (often 4-axis or 6-axis) that is programmed to perform automated loading and unloading cycles. These systems are precise, fast, and ideal for high-volume, repeatable tasks. They are the cornerstone of the “lights-out” factory.
• Flexible Pneumatic Lifting Manipulator: This is an operator-assisted device that uses air power to neutralize the weight of a load. While it can have sophisticated controls and vacuum systems, it relies on a human for guidance and decision-making. It is flexible, intuitive, and ideal for job shops with high-mix, low-volume runs .

Cost Analysis and ROI

The most immediate differentiator between these two solutions is the upfront investment.

A full Industrial Sheet Metal Handling Robot with a 20kg capacity and a specific reach can represent a significant capital expenditure . When you factor in the cost of safety guarding, programming, and potential downtime during integration, the total cost can be prohibitive for small to medium enterprises (SMEs).

In contrast, a Pneumatic Manipulator offers a much lower barrier to entry. With pricing for robust, CE-certified models starting in the range of $3,698, the return on investment is often realized in 12 to 18 months . This faster ROI is achieved by immediately reducing the 2-3 man teams previously needed for manual handling down to a single operator, with no lengthy programming delays.

Application Fit: High Mix vs. High Volume

The Case for the Robot

If your operation involves running the same parts repeatedly, 24/7, the Industrial Sheet Metal Handling Robot is unmatched. It can work tirelessly, integrating with your CNC or laser cutter to load and unload with precision. As seen in high-volume stamping operations, these robots can achieve cycle times of up to 10 times per minute, with positioning accuracy of ±0.2mm . They are the ultimate tool for optimizing cycle time in a dedicated production line.

The Case for the Pneumatic Manipulator

However, if your job shop handles a variety of materials—stainless steel today, aluminum tomorrow, and polycarbonate next week—a Flexible Pneumatic Lifting Manipulator for Manufacturing is more practical. There is no programming required. The operator simply changes the suction cup configuration or adjusts the vacuum pressure to suit the new material. This flexibility allows for “changeover on the fly,” which is impossible with a hard-programmed robot.

For tasks like feeding a bending machine or positioning a plate for tack welding, the human eye and intuition are still superior. The manipulator amplifies the worker’s strength, allowing them to precisely fit a part into a brake press without worrying about the weight .

Floor Space and Infrastructure

Robots, especially those with large controllers and safety fences, require significant floor space. A Pneumatic Cantilever Loading Manipulator, on the other hand, has a compact footprint. Column-mounted or wall-mounted options allow it to work in aisles and areas where a robot could never fit.

Furthermore, robots are sensitive to their environment. Dust, debris, and vibrations—common in cutting and grinding operations—can affect servo motor performance and encoder accuracy. Pneumatic systems are inherently rugged. They tolerate harsh shop floor conditions with fewer electronic components to fail, making them easier to maintain .

A Synergistic Approach: The Hybrid Factory

The most forward-thinking manufacturers are realizing they do not have to choose. They are creating hybrid systems where both technologies coexist.

In this model, the Flexible Pneumatic Lifting Manipulator acts as the “roughing” stage. It unloads raw material bundles from trucks or storage racks—a task with high variability. It then presents the material to a staging area where an Industrial Sheet Metal Handling Robot takes over for the high-speed, precise feeding of a laser cutter .

This hybrid approach maximizes the strengths of both systems: the flexibility and ruggedness of the pneumatic lifter, combined with the speed and precision of the robot. It prevents “over-automating” simple tasks and under-automating complex ones.

In conclusion, for the vast majority of general fabrication shops, the Flexible Pneumatic Lifting Manipulator offers the quickest path to improved ergonomics and efficiency. As volumes grow and processes standardize, integrating a dedicated Industrial Sheet Metal Handling Robot becomes the natural next step in the automation journey.

At the heart of this system is its commitment to high precision—a critical factor in sheet metal processing, where even the smallest misalignment can lead to defective parts, material waste, and costly rework. The High Precision & 24/7 Reliable Automatic Handling Gantry Loader System is equipped with advanced linear guide rails and chain transmission technology, which ensure smooth, precise movement of the loading and unloading mechanism. The linear guide rails provide minimal friction, allowing for accurate positioning of sheet metal materials, while the chain drive system ensures consistent power transmission, even during long hours of operation. The system’s high-precision sensors detect the position, size, and thickness of each sheet, allowing the CNC control system to adjust the manipulator’s movement in real time—ensuring that every sheet is placed exactly where it needs to be. With a vertical lifting speed of 9m/min and an inlet/outlet speed of 12m/min, the system balances speed and precision, allowing for fast processing without compromising accuracy.

Reliability is another cornerstone of the High Precision & 24/7 Reliable Automatic Handling Gantry Loader System. Built to withstand the rigors of 24/7 operation in harsh manufacturing environments, the system is constructed with high-quality materials and components that are designed to last. The gantry truss, manipulator, and material car are made from heavy-duty steel, ensuring durability and resistance to wear and tear. The linear guide rails and chain drive system are treated with anti-corrosion coatings, making them suitable for use in environments with dust, moisture, and other contaminants. Additionally, the system is equipped with a robust PLC control system that is designed to handle continuous operation, with built-in redundancy to prevent system failures. This means that the system can run 24 hours a day, 7 days a week, without the need for frequent maintenance or manual intervention—maximizing production uptime and reducing downtime.

The system’s 24/7 reliability is further enhanced by its comprehensive maintenance and monitoring features. The CNC control system provides real-time monitoring of the entire system, including the manipulator, material car, and storage warehouse. Operators can track the status of each component, identify potential issues before they escalate, and schedule maintenance proactively. The system also features self-diagnostic capabilities, which automatically detect and report errors, allowing for quick troubleshooting and resolution. This proactive approach to maintenance ensures that the system remains operational for extended periods, reducing the risk of unexpected downtime and ensuring that production runs smoothly.

One of the key benefits of the High Precision & 24/7 Reliable Automatic Handling Gantry Loader System is its ability to improve production efficiency by eliminating manual labor and reducing processing time. Manual loading and unloading of sheet metal is a time-consuming and labor-intensive process that is prone to errors and delays. By automating these processes, the system reduces the time it takes to complete each job, increasing the number of parts that can be produced in a given period. For example, a typical manual operation might require two workers to load and unload a laser cutting machine, taking 15-20 minutes per sheet. The gantry loader system can complete the same task in just 2-3 minutes, with no manual labor required—cutting processing time by up to 85% and reducing labor costs significantly. Additionally, the system’s consistent performance ensures that each part is cut to the same high standard, reducing the number of defective parts and material waste.

The system’s seamless integration with other production line equipment further enhances its efficiency and reliability. It is designed to work with laser cutting machines, three-dimensional storage warehouses, double-layer electric exchange material cars, and finished material trucks—creating a complete automated production unit. The three-dimensional storage warehouse provides efficient storage for raw materials and finished parts, with 8-13 floors and a load capacity of 3T/5T per layer—maximizing storage space and reducing the need for manual material handling. The double-layer electric exchange material car enables simultaneous loading of raw materials and unloading of finished parts, eliminating the need to stop the production line during material changes. This integration ensures that the entire production workflow is streamlined, with no bottlenecks or interruptions.

Safety is another important feature of the High Precision & 24/7 Reliable Automatic Handling Gantry Loader System. The system is equipped with a range of safety features to protect both workers and equipment, including emergency stop buttons, safety guards, and sensors that detect the presence of workers in the manipulator’s path. These features ensure that the system operates safely at all times, reducing the risk of workplace injuries and equipment damage. Additionally, the system’s automated operation eliminates the need for workers to lift or move heavy sheet metal, reducing the risk of back strains, cuts, and crush injuries—common hazards in manual material handling.

The system is also highly versatile, making it suitable for a wide range of sheet metal processing applications. It is compatible with various sheet sizes, including 3015/4015/4020/6015/6020/6025mm, and can handle different material types, such as steel, aluminum, copper, and stainless steel. The system’s load capacity can be customized to 3T or 5T per layer, depending on the manufacturer’s needs, and the number of floors in the storage warehouse can be adjusted from 8 to 13—providing flexibility to adapt to changing production requirements. Whether you are producing small, precision parts or large, heavy panels, the High Precision & 24/7 Reliable Automatic Handling Gantry Loader System can handle the task with precision and reliability.

In conclusion, the High Precision & 24/7 Reliable Automatic Handling Gantry Loader System is the ultimate solution for manufacturers looking to optimize their sheet metal processing operations. Its high precision ensures consistent quality, its 24/7 reliability maximizes production uptime, and its automated operation reduces labor costs and improves efficiency. With its seamless integration with other production line equipment, robust construction, and comprehensive safety features, this system provides a complete, end-to-end solution for automated material handling. Whether you are looking to increase throughput, reduce defects, or improve workplace safety, this gantry loader system delivers the performance and reliability you need to succeed in today’s competitive manufacturing landscape.

The Architecture of Seamless Integration

The beauty of the Automatic Loading And Unloading System Gantry Loader lies in its holistic architecture. It is not a standalone device but a carefully orchestrated ensemble of components working in harmony. The system comprises a three-dimensional storage warehouse, a bilateral gantry truss, a composite truss manipulator, a finished material truck, and a sophisticated PLC/CNC control system. Together, these elements form a sheet metal automatic production unit that operates with a level of synchronicity impossible to achieve with manual methods.

The CNC control system acts as the conductor of this orchestra. It receives orders from the factory’s ERP or MES system, retrieves the appropriate raw materials from the warehouse, directs the gantry robot to load the laser cutter, monitors the cutting process, and finally orchestrates the unloading and stacking of finished parts. This end-to-end automation ensures that information and materials flow without interruption, creating a truly lean manufacturing environment.

Flexibility for Diverse Production Needs

Modern manufacturing is characterized by high variability. Customers demand custom parts, short lead times, and a wide range of materials. The Gantry Robot for Automated Handling is designed with this flexibility in mind. It can handle sheet sizes from 3015mm up to 6025mm and support load capacities of 3T to 5T. Whether processing thin aluminum sheets for electronics enclosures or thick steel plates for structural components, the system adapts effortlessly.

The optional plate support configurations allow for further customization, ensuring that delicate materials are handled without scratching or deformation. The system’s ability to store multiple programs means that switching between jobs is instantaneous. An operator can queue up a day’s worth of diverse orders, and the system will execute them in sequence without manual reconfiguration. This flexibility is crucial for job shops that need to respond quickly to changing customer demands.

Driving Efficiency Through Automation

The primary driver for adopting the Gantry-type automatic loading/unloading machine is efficiency. Manual loading and unloading are inherently slow and inconsistent. Workers need breaks, shifts change, and fatigue sets in. In contrast, the automated system works tirelessly, maintaining a constant pace of 12m/min for horizontal movement and 9m/min for vertical lifts.

This consistent speed translates directly into higher machine utilization rates. Laser cutting machines are expensive assets; every minute they sit idle waiting for material is money lost. By ensuring that the laser is always fed with the next sheet immediately after finishing the previous one, the system maximizes the return on this capital investment. Furthermore, the double-layer electric exchange material car ensures that raw material supply is never a bottleneck, allowing for continuous operation even during extended runs.

Quality Assurance Through Precision

Consistency is the hallmark of quality. In manual operations, slight variations in how a sheet is placed can lead to significant deviations in the final product. The Intelligent Gantry Loading Manipulator eliminates these variations. Using precise servo motors and feedback loops, it positions every sheet with exacting accuracy. This precision ensures that the laser beam follows the intended path perfectly, resulting in clean cuts and accurate dimensions.

Reduced variability means fewer rejected parts and less rework. For manufacturers operating on thin margins, the reduction in waste material and labor hours spent on corrections can make the difference between profit and loss. Additionally, the system’s ability to track each job provides a digital trail of quality data, which can be used for traceability and continuous improvement initiatives.

Creating a Safer Workplace

Safety improvements are a direct benefit of implementing the Automatic Loading and Unloading System. By removing workers from the immediate vicinity of heavy moving loads and high-power lasers, the risk of catastrophic accidents is greatly diminished. The system’s enclosed design and sensor networks create a safe perimeter, allowing humans to work nearby without fear of injury.

This shift in roles also allows workers to transition from physically demanding tasks to more cognitive ones. Operators can focus on programming, quality control, and system optimization, roles that are more engaging and less prone to turnover. A safer, more satisfying workplace leads to higher employee retention and a stronger company culture.

Future-Ready Manufacturing

As we look towards the future of manufacturing, the Gantry-type automatic loading/unloading machine positions companies at the forefront of Industry 4.0. Its connectivity capabilities allow for integration with IoT platforms, enabling real-time data analytics and predictive maintenance. Manufacturers can monitor performance metrics remotely, receive alerts for potential issues, and optimize production schedules based on real-time demand.

The system’s modular nature ensures that it can grow with the business. Additional storage layers, faster drives, or advanced vision systems can be added as needs evolve. This scalability protects the investment, ensuring that the system remains relevant and effective for years to come.

Conclusion

The Gantry-type automatic loading/unloading machine is the catalyst for transforming fragmented production processes into a streamlined,efficient powerhouse. By seamlessly integrating storage, handling, and cutting, it delivers a level of workflow optimization that manual methods cannot match. For manufacturers committed to excellence, this system offers the perfect blend of speed, precision, safety, and flexibility, paving the way for a prosperous and sustainable future in sheet metal fabrication.

Extreme Load Capacity and Crane Integration Molds and dies cannot be lifted manually. They require robust mechanical intervention. This specific mold storage shelf is designed to integrate seamlessly with overhead handling equipment. With capacities up to 3 tons (approximately 6,600 lbs) per layer, the sturdy welded steel framework provides unwavering support.

Because the shelves roll out completely on heavy-duty steel bearings, the mold is entirely exposed to the air above it. This design is perfect when paired with lift systems such as heavy-duty hoists and overhead bridge cranes. The operator simply rolls the drawer out, drops the crane hook, attaches the rigging to the mold’s lifting rings, and hoists it directly upward. There is no need for dangerous, awkward maneuvering with a forklift inside a tight rack aisle. This creates a vastly more ergonomic material handling process.

Smooth Push and Pull Operation Despite holding 3 tons of solid steel, the drawers remain easy to push and pull. The precision engineering of the push-pull guide rails ensures they are smooth and silent. Operators simply pull to open, push to close. This mechanical advantage is critical; it allows a single operator to access a massive mold quickly, locate the target item, and prepare it for transport without waiting for a forklift driver to clear the area.

This access efficiency doubles the speed of tool changeovers at the injection molding machine or stamping press. Faster tool changes directly equate to higher machine uptime and increased profitability.

Maximizing Space Utilization in the Tool Room Tool rooms are notorious for becoming cluttered. Stacking molds on the floor becomes cumbersome as more stock is stored, size varieties increase, and operations become more complex. Furthermore, floor storage makes visual identification difficult, leading to the cumbersome operation of moving one mold just to access another.

By utilizing a multi-level drawer-style tiered design, the mold storage shelf vertically expands storage capacity. It easily meets the high-density storage requirements for heavy tooling, saving an incredible 70% of floor space. Taking your mold and sheet storage vertical means saving floor space, enhancing ease of access both manually and mechanically, and creating a much safer walking environment for employees.

Standardization and Durable Construction Built for rugged use, the mold racks share construction DNA with heavy-duty roll-out sheet metal racks. They are available in various configurations to handle different mold base dimensions. Standard footprint models often mirror heavy sheet metal requirements to maintain warehouse uniformity:

• HC-B2015-62: 2000x150mm plate sizes
• HB-B3015-65: 3000x1500mm plate sizes
• HB-B6015-63: 6000x1500mm plate sizes
• HC-B6020-65: 6000x2000mm plate sizes

By standardizing the storage system, facilities can mix and match sheet metal and mold storage within the same aisle, maintaining a clean, professional aesthetic while optimizing the travel paths for overhead cranes.

The Superior Alternative to Static Storage When reviewing material handling alternatives, standard static racks fail entirely for mold storage because they block overhead crane access. Cantilever racks lack the flat surface required to support a heavy, block-like mold. While roll-out shelving works well for lighter weight capacities (up to 1,500 pounds), only the heavy-duty 3-ton per layer mold rack provides the durability required for die casting and injection molding environments. It stands as the premier, indispensable solution for heavy industrial tooling management.

Breaking the Horizontal Barrier

For decades, the default method for storing pipes and profiles was the cantilever rack, arranged in long rows with wide aisles to accommodate fork-lifts. While functional, this approach is inherently inefficient. It consumes vast amounts of floor space, limits stacking height due to fork-lift reach restrictions, and relies heavily on operator skill for safe handling. The result is a warehouse that is sprawling, slow, and prone to accidents.

The Automatic Vertical Storage Rack System shatters this horizontal barrier by utilizing the full vertical cube of the facility. By stacking materials in towers that can reach 13 meters or more, these systems compress the storage footprint by up to 70%. This dramatic increase in density allows facilities to store significantly more inventory in the same building or to downsize their real estate holdings while maintaining capacity. For heavy industries where land costs are high and space is at a premium, this vertical compression is a game-changer. It transforms the warehouse from a sprawling yard into a compact, high-density fortress of inventory.

The Mechanics of Heavy-Duty Vertical Automation

At the core of the Automatic Vertical Storage Rack System is a robust mechanical design capable of handling extreme weights. Unlike light-load automated systems used in e-commerce, these industrial giants are built to lift and move loads of 3 to 5 tons per layer with ease. The main structure is fabricated from high-strength steel, engineered to resist deflection and vibration under heavy loads. The loading and unloading gantry, the system’s primary actuator, travels on precision linear guide rails that ensure smooth, stable movement even when fully loaded.

The transmission mode, typically a heavy-duty chain drive, provides the necessary torque for vertical lifting speeds of 9 meters per minute. This speed is carefully balanced to ensure that the momentum of heavy loads does not compromise stability. Horizontal movement at 12 meters per minute allows the gantry to quickly position itself at the correct bay, minimizing the time between requests. The synchronization of these movements is managed by advanced control systems that optimize the gantry’s path, reducing energy consumption and wear on mechanical components.

Customized Pipes Stacking Racking plays a crucial role in this ecosystem. The racks are not mere shelves; they are engineered supports designed to hold specific pipe diameters and bundle configurations. Specialized cradles and adjustable arms prevent pipes from rolling or crushing each other, a common issue in traditional stacking. These supports are integrated into the material frames, which lock securely into the rack structure, ensuring that the load remains stable during the dynamic movements of the gantry. This attention to detail ensures that the integrity of the stored material is maintained from入库 (inbound) to出库 (outbound).

Enhancing Loading Efficiency in Heavy Industry

Loading efficiency in heavy industry is not just about speed; it is about the seamless flow of massive quantities of material into and out of storage. Manual handling of heavy pipes is slow and physically demanding, often requiring multiple workers and heavy machinery for a single transaction. The Intelligent mobile profile automated storage and retrieval system automates this entire process, turning what used to be a 15-minute operation into a matter of seconds.

The system’s ability to operate continuously without fatigue means that throughput is consistent and predictable. During peak production times, the automated gantry can run 24/7, keeping the production line fed with materials without interruption. The precision of the automated system also reduces the time spent aligning and adjusting loads, a common delay in manual operations. Furthermore, the integration of the system with Warehouse Management Software (WMS) allows for real-time inventory visibility and automated order sequencing, ensuring that the right materials are delivered to the right place at the right time.

Safety is a significant component of efficiency. Accidents in heavy material handling can shut down operations for days, causing massive losses. By removing humans from the direct handling of heavy loads, the Automatic Vertical Storage Rack System drastically reduces the risk of injury. The enclosed nature of the automated system, combined with safety sensors and interlocks, creates a secure environment where operations can proceed at high speed without compromising worker safety.

Versatility Across Industries

The applications of Customized Automatic Storage Rack Unit Industrial Profile Steel Warehouse System extend across a wide range of heavy industries. In the oil and gas sector, these systems store vast quantities of drill pipes and casing tubes, organizing them by grade and size for rapid deployment. In construction, they manage structural steel beams and columns, ensuring that the right pieces are available for prefabrication. In the automotive and aerospace industries, they store aluminum extrusions and specialty alloys, protecting sensitive finishes while maintaining high accessibility.

The versatility of these systems lies in their customizability. Whether the requirement is for storing extra-long pipes that span multiple bays or heavy bundles that require reinforced supports, the system can be tailored to meet the specific needs of the industry. The Industrial Profile Warehouse with ISO9001/CE Certification ensures that these tailored solutions meet the highest standards of quality and safety, making them suitable for the most regulated and demanding environments.

Future Outlook: The Smart Warehouse

Looking ahead, the Automatic Vertical Storage Rack System is poised to become even more intelligent. Integration with AI and machine learning will enable predictive maintenance, where the system can anticipate mechanical issues before they cause downtime. Advanced analytics will optimize storage patterns in real-time, adapting to changing demand fluctuations. The convergence of robotics, IoT, and big data will transform these storage systems into cognitive hubs that drive the entire supply chain.

Conclusion: Elevating Heavy Industry Logistics

The transition to an Automatic Vertical Storage Rack System represents a bold step forward for heavy industry logistics. By combining high-density vertical storage with robust automation and customized engineering, these systems offer a solution to the age-old problems of space scarcity and inefficiency. They empower companies to maximize warehouse space utilization and loading efficiency while enhancing safety and reducing operational costs. As the demands of the global market continue to grow, the ability to store and retrieve heavy materials with speed and precision will be a defining factor in industrial success. The era of automatic vertical storage is here, and it is transforming the landscape of heavy industry one profile at a time.

The Servo Swing Arm Handling Manipulator is a state-of-the-art automation system designed to streamline material handling processes in a wide range of industrial settings. Unlike traditional material handling equipment, which often relies on manual operation or basic automation, this manipulator uses high-precision servo control technology to deliver smooth, stable, and rapid movements, making it ideal for automated production lines. The equipment is designed to handle a variety of materials, including steel plates, aluminum sheets, plastic components, and other industrial materials, making it versatile and adaptable to different manufacturing needs.

At the heart of the Servo Swing Arm Handling Manipulator is its advanced servo control system. Servo motors are known for their high precision, fast response, and ability to maintain consistent speed and position, making them ideal for applications that require accurate material handling. The servo motor integrated into the swing arm provides precise control over the swing angle, lifting height, and movement speed, ensuring that materials are moved with unparalleled accuracy. This level of precision is essential in industrial settings, where even small errors in material handling can lead to defective products, wasted materials, and increased production costs. With the servo control system, manufacturers can achieve a repeat positioning accuracy of ±0.1mm, significantly improving the quality and consistency of their production processes.

The entire structure of the Servo Swing Arm Handling Manipulator is designed for robustness and durability, ensuring reliable performance even in harsh industrial environments. The equipment consists of a swing arm robotic arm body, a high-torque servo synchronous lifting mechanism, servo swing arm positioning transmission, multiple sets of heavy-duty oil-resistant suction cups, an SNS pneumatic system, a power outage safety protection system, an original imported Omron CNC control system, and an electrical system. Each component is carefully selected and engineered to work together seamlessly, delivering consistent and reliable performance. The swing arm robotic arm body is made of high-strength steel, ensuring that it can withstand the weight of heavy materials and the rigors of daily industrial use. The high-torque servo synchronous lifting mechanism provides powerful lifting force, allowing the equipment to handle materials weighing up to 1000kg.

The heavy-duty oil-resistant suction cups are a key component of the Servo Swing Arm Handling Manipulator, designed to provide strong and reliable gripping force for a variety of materials. The number and diameter of the suction cups vary by model, ensuring that the equipment can handle different material weights and sizes. For example, the HC-R3015-500 and HC-R4020-500 models are equipped with 15 suction cups with a diameter of 150mm, while the HC-R3015-750 and HC-R4020-750 models feature 15 suction cups with a diameter of 200mm. The HC-R3015-1000 model, designed for the heaviest loads, is equipped with 118 suction cups with a diameter of 250mm, providing enhanced gripping force to handle plates weighing up to 1000kg. Each suction cup is equipped with an opening and closing valve, allowing for precise control over the gripping and releasing of materials. The oil-resistant design ensures that the suction cups remain effective even in environments where oil or other contaminants are present, extending their lifespan and reducing maintenance costs.

Convenience and flexibility are also key features of the Servo Swing Arm Handling Manipulator. The equipment features a modular assembly structure, which allows for easy assembly and disassembly. This means that the equipment can be quickly installed and commissioned, reducing downtime and ensuring that production can resume as soon as possible. The modular design also allows for easy maintenance and upgrades, as individual components can be replaced or upgraded without the need to replace the entire system. The compact design of the equipment helps to reduce space waste, making it suitable for use in small to medium-sized manufacturing facilities where space is at a premium. Additionally, the 120° smooth arm swing allows for flexible handling of materials in various positions, making it easier to load and unload materials from different locations and integrate the equipment into existing production lines.

Safety is a top priority in any industrial setting, and the Servo Swing Arm Handling Manipulator is equipped with a comprehensive range of safety features to ensure the protection of operators and equipment. The equipment comes with an emergency stop protection system, which allows operators to quickly shut down the system in the event of an emergency, preventing accidents and minimizing damage. The automatic braking system ensures that the swing arm stops immediately when the emergency stop button is pressed or when an abnormal condition is detected. The power outage safety protection system prevents the equipment from falling or moving unexpectedly in the event of a power failure, protecting both operators and the equipment. Additionally, the equipment features a pressure sensor system that monitors the suction pressure of the cups, ensuring that materials are securely gripped at all times. If the suction pressure drops below a safe level, the system automatically alerts the operator and stops the handling process, preventing material slippage and potential accidents.

From an economic perspective, the Servo Swing Arm Handling Manipulator offers significant cost-saving benefits for manufacturers. The ergonomic design of the equipment ensures that the handling process is simple and efficient, reducing the need for highly skilled operators and minimizing training costs. The automatic handling process reduces labor intensity, allowing a single operator to manage multiple pieces of equipment, thereby reducing labor costs. Additionally, the high precision and stability of the equipment reduce material waste and damage, as fewer defective products are produced. The efficient handling process also reduces production time, increasing overall productivity and allowing manufacturers to meet tight production deadlines. The equipment’s energy-efficient design also helps to reduce energy costs, further improving the bottom line for manufacturers.

To fully understand the capabilities of the Servo Swing Arm Handling Manipulator, it is essential to examine its detailed technical specifications. The equipment is available in several standard models, including HC-R3015-500, HC-R3015-750, HC-R3015-1000, HC-R4020-500, and HC-R4020-750. The feeding plate thickness ranges from 8mm to 20mm, depending on the model, while the maximum feeding width varies from 3000*1500mm to 4000*2000mm. The minimum feeding width is 1250*1000mm across all models, ensuring compatibility with a wide range of material sizes. The maximum plate weight that the equipment can handle ranges from 300kg to 1000kg, making it suitable for both light and heavy material handling applications. The air consumption of the equipment is 1.5m³/min, with an air source requirement of 0.6-0.7Mpa, ensuring that the pneumatic system operates efficiently.

The Servo Swing Arm Handling Manipulator is widely used in a variety of industries, including electrical cabinet manufacturing, metal sheet manufacturing, automotive manufacturing, aerospace, and construction. In electrical cabinet manufacturing, the equipment is used to handle sheet metal plates for cutting, bending, and assembling, ensuring that each component is accurately positioned. In metal sheet manufacturing, the equipment is used to feed raw materials to processing machines such as laser cutters and punching machines, streamlining the production process. In the automotive industry, the equipment is used to handle sheet metal parts for vehicle bodies, improving production efficiency and accuracy. The equipment is also suitable for use in other industries where precise material handling is essential, such as electronics manufacturing and heavy machinery production.

The equipment also offers a range of additional features that enhance its performance and versatility. The original imported Omron CNC control system provides intuitive programming and control, allowing operators to easily set parameters, monitor operation, and troubleshoot issues. The system supports multiple programming modes, including manual, semi-automatic, and fully automatic, giving manufacturers the flexibility to adapt the equipment to different production needs. The equipment can also be integrated with other automation systems, such as conveyor belts and processing machines, creating a fully automated production line that improves efficiency and reduces downtime.

The packaging and delivery of the Servo Swing Arm Handling Manipulator are designed to ensure safe transportation and easy installation. The package size is 3200.00cm * 1550.00cm * 1550.00cm, with a package gross weight of 1300.000kg. The equipment is carefully packaged to protect it from damage during transportation, and the manufacturer provides comprehensive installation and commissioning services to ensure that the equipment is set up correctly and ready for use. The manufacturer also offers a one-year warranty on the equipment, providing peace of mind to customers and ensuring that any issues are resolved quickly and efficiently.

In comparison to other material handling equipment on the market, the Servo Swing Arm Handling Manipulator offers several competitive advantages. Unlike manual handling methods, which are labor-intensive, error-prone, and inefficient, this automatic equipment reduces labor costs and improves accuracy. Compared to semi-automatic equipment, the servo-driven system provides higher precision and stability, ensuring consistent performance even in high-volume production environments. Additionally, the modular design and comprehensive safety features make it a more flexible and reliable solution than many other automation systems.

As the manufacturing industry continues to embrace automation and Industry 4.0 technologies, the Servo Swing Arm Handling Manipulator is poised to play an increasingly important role in material handling operations. Its ability to improve efficiency, reduce costs, and enhance safety makes it an essential investment for manufacturers looking to stay competitive in today’s global market. Whether you are a small business looking to automate your material handling processes or a large enterprise seeking to optimize your operations, this equipment offers the performance, flexibility, and reliability you need to succeed.

In conclusion, the Servo Swing Arm Handling Manipulator is a cutting-edge automation solution that revolutionizes industrial material handling. With its advanced servo control system, robust structure, comprehensive safety features, and cost-saving benefits, it provides manufacturers with a reliable and efficient way to handle materials. Its wide range of technical specifications and customization options make it suitable for a variety of applications, while its user-friendly design ensures ease of use and maintenance. If you are looking to improve the efficiency and accuracy of your material handling operations, the Servo Swing Arm Handling Manipulator is the ideal solution for your business.

This article explores why the New Servo-Driven Cantilever Manipulator is becoming the backbone of efficient production lines in electrical cabinet manufacturing, metal sheet fabrication, and beyond. By combining a robust cantilever structure with advanced servo technology and a dual vacuum system, this equipment delivers a level of performance that traditional handlers simply cannot match.

Engineering Excellence: The Cantilever Advantage

The defining characteristic of this manipulator is its cantilever arm structure. This design extends horizontally from a fixed vertical column, allowing the end-effector (the suction cup array) to reach deep into pallets, stacks, or machine beds without obstruction. This is particularly advantageous in scenarios where space is limited or where the loading zone is surrounded by other machinery.

The 120° smooth arm swing capability allows the manipulator to service multiple stations from a single pivot point. For instance, a single unit can pick raw materials from a storage rack, rotate to a laser cutting machine for loading, and then rotate again to an unloading table—all without the need for multiple robots or complex conveyor systems. This consolidation of tasks simplifies the production flow and reduces the overall complexity of the automation cell.

Structurally, the cantilever arm is engineered to handle significant bending moments without deflection. Constructed from high-strength steel and reinforced with precision-machined joints, it maintains rigidity even when fully extended with a 1000kg load. This stability is crucial for maintaining the alignment of metal sheets during high-speed transfers, ensuring that each plate lands exactly where it is supposed to.

Modular Assembly: Flexibility for Evolving Factories

Modern manufacturing environments are dynamic; production lines change, products evolve, and factory layouts are frequently reconfigured. The Automated Material Handling Manipulator addresses this need for adaptability through its modular assembly structure.

Unlike welded, monolithic robots that are difficult to move or modify, this cantilever manipulator is designed for easy assembly and disassembly. Components are bolted together using standardized interfaces, allowing maintenance teams to replace worn parts quickly or even relocate the entire unit to a different part of the factory with minimal downtime. This modularity also facilitates upgrades. A facility starting with a 300kg capacity model can potentially upgrade its suction array and servo drives to handle 750kg or 1000kg as their product mix shifts toward heavier gauges.

This flexibility translates directly into cost savings. By reducing space waste and allowing for reconfiguration without major construction work, the cantilever manipulator offers a level of long-term value that rigid automation systems cannot provide. It is an investment that grows with the business, rather than becoming obsolete as needs change.

Advanced Gripping: The Dual Vacuum System

At the business end of the cantilever arm lies a sophisticated dual vacuum system equipped with heavy-duty oil-resistant suction cups. In sheet metal handling, the quality of the grip determines the quality of the final product. A slipped sheet can ruin a precision laser cut or damage a painted surface, leading to costly scrap.

The dual vacuum architecture provides redundancy. If one vacuum circuit fails or experiences a leak, the second circuit maintains enough holding force to secure the load and execute a safe emergency stop. Each suction cup is individually controlled via an opening and closing valve, allowing the system to adapt to various sheet sizes. For smaller sheets, only the central cups activate, saving energy and preventing edge curling. For full-size 4000mm x 2000mm plates, all cups engage to distribute the weight evenly.

The suction cups themselves are a marvel of material science. Designed to resist oils, coolants, and metal shavings common in fabrication shops, they maintain their elasticity and grip strength over thousands of cycles. With diameters ranging from 150mm to 250mm and counts up to 118, the system ensures that even the thinnest or oiliest sheets are handled with confidence.

Safety and Operational Security

Industrial safety is non-negotiable. The Automated Material Handling Manipulator incorporates a multi-layered security assurance protocol. The emergency stop protection is strategically placed for easy access, while the automatic braking system ensures that the arm freezes instantly upon any fault detection.

Crucially, the system includes a power outage safety protection system. In the event of a sudden loss of electricity, the servo motors engage their holding brakes, and the vacuum reservoirs maintain pressure long enough to prevent the load from dropping. This feature is vital for protecting expensive machinery (like laser cutters) located beneath the handling path, as well as ensuring the safety of operators working nearby.

The ergonomic design further enhances safety by removing humans from the “danger zone” of heavy lifting. By automating the repetitive and strenuous task of loading and unloading, the risk of musculoskeletal disorders and acute injuries is virtually eliminated. The simple, coherent operation interface allows workers to manage the system with minimal training, reducing the likelihood of human error.

Driving Efficiency in Key Industries

The impact of the Servo Swing Arm Handling Manipulator is most visible in industries where throughput and precision are paramount.

• Electrical Cabinet Manufacturing: Here, sheets are often pre-punched or laser-cut with intricate patterns. The gentle, precise handling of the cantilever arm ensures that these delicate features are not distorted during transfer.
• Metal Sheet Fabrication: For shops running high-volume jobs, the speed of the 600W vertical servo combined with the rapid swing action significantly reduces cycle times. The ability to handle 20mm thick plates opens up opportunities for heavy structural work that was previously too labor-intensive.
• Automotive and Aerospace: These sectors demand traceability and zero defects. The consistent, repeatable motion of the automated manipulator ensures that every part is processed identically, supporting strict quality control standards.

Conclusion: The Future of Industrial Loading

The Automated Material Handling Manipulator with Cantilever Arm is more than a machine; it is a comprehensive solution to the challenges of modern industrial loading. Its convenient and flexible modular design, coupled with security assurance features and economical operation, makes it an indispensable tool for forward-thinking manufacturers.

By choosing this New Servo-Driven Cantilever Manipulator, companies are not just buying equipment; they are investing in a smarter, safer, and more efficient production methodology. As the global market demands faster turnaround times and higher quality standards, the cantilever manipulator stands ready to deliver the performance needed to succeed. Embrace the power of automated handling and transform your sheet metal processing capabilities today.

With CE certification, this equipment complies with the highest European safety and quality standards, making it suitable for global deployment. Its dual vacuum system ensures secure gripping, while its fast-response sensors enable real-time adjustments during operation. For industries where milliseconds matter and microns define quality, this solution offers unparalleled performance.

Core Technologies Driving Performance

Laser Guidance and Positioning

Unlike traditional mechanical guides, this system employs laser-based positioning to achieve sub-millimeter accuracy. Lasers scan the metal sheet’s edges and surface conditions, feeding data directly to the central control unit. This allows the robot arm to adjust its grip and trajectory dynamically, compensating for variations in sheet alignment or warping.

The result is a dramatic reduction in misloads and jams, common issues in conventional systems. Operators can confidently handle irregularly shaped or pre-bent components without fear of damage or misplacement.

Dual Vacuum System for Enhanced Stability

The dual vacuum system is a game-changer for handling diverse metal types. By utilizing two independent vacuum circuits, the system maintains consistent suction even if one circuit experiences a temporary pressure drop. Each suction cup is equipped with its own control valve, allowing for selective activation based on sheet size and weight.

Models vary in suction cup count—from 15 cups for lighter loads to 118 cups for maximum capacity—ensuring optimal coverage regardless of the task. The cups themselves are made from oil-resistant materials, extending their lifespan in harsh industrial settings.

Fast-Response Servo Mechanisms

Speed without sacrificing precision is the hallmark of this equipment. Powered by 600W vertical servo motors, the system achieves rapid acceleration and deceleration while maintaining smooth motion profiles. The servo swing arm handling manipulator can complete a full pick-and-place cycle in seconds, significantly boosting throughput.

Integrated feedback loops continuously monitor position, velocity, and torque, making micro-adjustments in real time. This closed-loop control ensures repeatable accuracy over thousands of cycles, critical for high-volume production runs.

Safety and Compliance: CE Certification Explained

Achieving CE certification means this equipment has undergone rigorous testing for electromagnetic compatibility, mechanical safety, and operational reliability. Key safety features include:

• Emergency stop buttons located at strategic points
• Automatic braking upon power failure
• Protective enclosures around moving parts
• Overload detection to prevent motor burnout

These measures not only protect workers but also reduce liability risks for manufacturers. Facilities operating under strict regulatory frameworks will find this certification invaluable for compliance audits.

Economical and Ergonomic Design

Beyond technical specs, the system prioritizes user experience. Its ergonomic layout reduces operator strain, while the modular construction simplifies maintenance. Components can be replaced individually without dismantling the entire unit, minimizing downtime.

Energy efficiency is another highlight. The optimized pneumatic system consumes only 1.5m³/min of compressed air, lowering utility costs. Combined with reduced labor requirements, the return on investment becomes evident within months of deployment.

Industry Applications and Success Stories

From automotive stamping plants to appliance manufacturing hubs, this laser-based handler is transforming operations. One automotive supplier reported a 35% increase in line efficiency after installation, along with a 50% drop in sheet-related defects. Another client in the HVAC sector praised the system’s ability to handle delicate coated metals without scratching.

The versatility extends to custom configurations. Whether you need a 3015mm, 4015mm, or 4020mm working envelope, the system can be tailored to your specific layout and throughput goals.

Final Thoughts: Precision Meets Productivity

In an era where precision defines competitiveness, the Laser-Based Loading Equipment with Dual Vacuum System stands out as a beacon of innovation. Its fusion of laser guidance, fast-response servos, and CE-certified safety makes it an indispensable tool for forward-thinking manufacturers.

Don’t settle for outdated methods that compromise quality and safety. Equip your facility with the latest in automated handling technology and position your business at the forefront of Industry 4.0.

The heart of this integration lies in the system’s advanced control architecture. Governed by powerful PLCs and intuitive touch screen interfaces, the Intelligent Sheet Metal Rack Warehouse does more than just hold metal; it manages data. Every action, from the moment a plate enters the facility to the instant it is loaded onto a laser cutter, is recorded and analyzed. The feature of automatic weight detection is a prime example of this data-centric approach. Upon receipt, the system verifies the weight of the incoming material against the order specifications. This data is instantly synced with the ERP system, updating inventory values and triggering financial entries automatically. This eliminates manual data entry errors and ensures that the company’s financial records reflect the true state of its assets.

For facilities dealing with heavy and untypical goods storage, the ability to track specific attributes of each item is crucial. The system categorizes and visualizes inventory based on material type, thickness, dimensions, and even heat lot numbers. When a production order is released in the ERP system, the Automated Sheet Metal Rack Steel Plate Automatic Lifting Library receives the instruction immediately. It identifies the optimal plate for the job, considering factors like remnant utilization and material age, and retrieves it without human intervention. This level of automation ensures that the laser cutting machine is never idle waiting for material, maximizing the return on investment for expensive cutting equipment.

The Double Tower for sheet metal storage design further enhances this integration by facilitating a continuous flow of information and materials. With dual access points, the system can simultaneously accept new stock updates from the receiving department while feeding the production floor. This parallel operation is coordinated through the central software, which manages traffic and prioritizes tasks based on real-time production schedules. The system’s ability to handle long bars and oversized plates up to 12 meters means that even the most complex bills of materials can be fulfilled accurately and efficiently.

Connectivity extends beyond internal software. The Automated sheet metal storage systems are designed to interface with a wide array of warehouse equipment. Whether it’s directing a forklift to a specific drop-off point, coordinating with a stacker crane for high-level retrieval, or syncing with a fiber laser or water-jet cutter for direct loading, the system acts as the central conductor of the material handling orchestra. This interoperability reduces the friction between different stages of the production process, creating a lean and agile manufacturing environment.

Real-time inventory control is perhaps the most significant benefit of this integration. Managers can access up-to-the-minute data on stock levels, location, and usage trends from anywhere in the facility—or even remotely. This visibility allows for proactive purchasing decisions, preventing stockouts that could halt production or overstocking that ties up capital. The classified visual management provided by the system ensures that every square inch of storage space is utilized effectively, and every piece of metal is accounted for.

The specifications of these systems, such as the customizable number of floors, load capacities of 3T or 5T, and speeds of 9m/min vertically and 12m/min horizontally, are all monitored and reported by the control software. This data can be used for predictive maintenance, identifying wear and tear on components like linear guide rails and chains before they fail. Such foresight prevents unexpected downtime and extends the lifespan of the equipment.

In conclusion, the future of metal fabrication lies in the seamless integration of hardware and software. The Automated Storage and Retrieval for Laser Cutting solutions offered by systems like the Herochu HC-A3015 provide the backbone for this digital transformation. By connecting automated sheet metal storage with ERP and WMS platforms, manufacturers gain unparalleled control over their operations. They can reduce costs, improve efficiency, ensure quality, and respond rapidly to market demands. As the industry continues to digitize, those who adopt these intelligent, connected storage solutions will find themselves leading the pack, while those who cling to manual, disconnected methods risk obsolescence. The time to integrate is now, securing a competitive edge through the power of data-driven automation.

Understanding the Demands of Heavy-Duty Storage

Heavy-duty storage isn’t merely about holding weight; it’s about doing so safely, efficiently, and sustainably. Industries dealing with metallic pipes, structural beams, and reinforcement bars require storage systems that can withstand dynamic loads, resist environmental degradation, and facilitate quick retrieval without compromising worker safety. Traditional static racks often struggle with these demands, leading to structural fatigue, inefficient space usage, and increased risk of accidents.

The Rail-Type Telescopic Cantilever Rack addresses these challenges head-on. Designed with reinforced uprights, braced cantilever arms, and a stabilized ground rail foundation, this system offers unparalleled strength and reliability. With load capacities reaching up to 250,000 kg per system and individual layer ratings of 3 to 5 tons, it stands as one of the most robust storage solutions available today.

Core Features Driving Performance

At the heart of the High Bearing Capacity Rail-Type Telescopic Cantilever Rack lies its innovative mechanical design. The system utilizes a linear guide rail paired with chain drive transmission, ensuring precise and synchronized movement even under maximum load conditions. This dual-mechanism approach minimizes wear and tear, extends equipment lifespan, and maintains consistent performance over years of intensive use.

Notable technical highlights include:

• Vertical Lifting Speed: 9 meters per minute, enabling rapid elevation adjustments for multi-level storage configurations.
• Horizontal Travel Speed: 12 meters per minute, facilitating swift positioning for loading and unloading operations.
• Single Ground Rail Architecture: Reduces infrastructure complexity while enhancing structural stability.
• Customizable Floor Counts: Adaptable to various ceiling heights and storage density requirements.
• Foldable and Anti-Rust Design: Protects against corrosion in humid or chemically aggressive environments.

Moreover, the inclusion of ESD protection makes this rack suitable for facilities storing sensitive electronic conduits or coated materials prone to static damage. Optional plate supports provide additional reinforcement for unusually shaped or oversized items, ensuring comprehensive versatility.

Space Efficiency Without Compromise

One of the most compelling advantages of the Rail-Type Movable Pipe Fitting Storage Rack is its ability to consolidate storage into minimal floor space. By operating on a single shared rail, multiple rack units can be aligned closely together, requiring only one access aisle for the entire row. This configuration can increase storage density by up to 70% compared to traditional fixed cantilever systems.

For warehouses with height restrictions, this system proves invaluable. Unlike automated vertical lift modules that demand substantial overhead clearance, the telescopic cantilever design operates effectively in low-ceiling environments while still delivering high volumetric utilization. The result? More stored materials per square foot without sacrificing accessibility or safety.

Industry Applications and Case Studies

Construction material distributors, pipeline manufacturers, and metal fabrication shops have widely adopted Rail-Type Pipe Cantilever Rack Systems to streamline their operations. In one notable case, a European steel distributor replaced its legacy floor-stacking method with a Herochu HC-G6053 installation. Within six months, the company reported a 40% reduction in labor hours spent on inventory retrieval, a 30% decrease in material damage incidents, and a 25% increase in usable warehouse space.

Similarly, an Asian automotive parts manufacturer utilized the system to store long chassis components and exhaust pipes. The enhanced visibility and organization provided by the cantilever arms allowed for just-in-time inventory practices, reducing carrying costs and improving production line responsiveness.

Safety, Compliance, and Sustainability

Safety remains paramount in heavy-duty storage environments. The High Bearing Capacity Rail-Type Telescopic Cantilever Rack incorporates multiple safety features, including overload sensors, emergency stop mechanisms, and anti-tip bracing. Certified to CE and ISO standards, the system adheres to rigorous international safety protocols, giving operators peace of mind.

From a sustainability perspective, the rack’s durable construction and corrosion-resistant coatings extend its service life, reducing the frequency of replacements and minimizing waste. Additionally, improved space efficiency means fewer new warehouse constructions are needed, lowering the overall carbon footprint associated with industrial expansion.

Defining “Smart” in Storage Context

“Smart” storage transcends mere electrification. It embodies systems that think, adapt, and communicate. A true smart electric telescopic rack features:

• Automated Controls: One-touch buttons, remote apps, or PLC interfaces for operation.
• Sensory Feedback: Load sensors, proximity detectors, and tilt monitors prevent accidents.
• Data Connectivity: APIs linking to WMS/ERP for real-time inventory updates.
• Predictive Maintenance: Algorithms analyzing motor wear to schedule servicing before failures.

These attributes transform passive racks into active participants in workflow optimization.

Engineering Marvel: 8T Carbon Steel Backbone

At the core of smart telescopic racks lies Heavy Duty Carbon Steel 8T/Layer construction. Unlike lighter alternatives using C-channel posts, these systems employ hot-rolled H-beams (e.g., HM 400×200) for columns and arms. Key engineering highlights:

• Yield Strength: Q345B steel offers 345 MPa minimum yield, resisting deformation under extreme loads.
• Weld Integrity: Robotic MIG welding ensures consistent penetration, validated by ultrasonic testing.
• Surface Hardness: Powder coating (80–120μm) provides corrosion resistance rivaling hot-dip galvanization.

This robustness allows safe storage of dense materials like lead-lined pipes or solid bronze bars, where failure isn’t an option.

The Electric Advantage: Precision Meets Convenience

Manual telescopic racks suffice for low-frequency use, but electric drives unlock transformative efficiency:

• Speed: Extend/retract cycles complete in 15–30 seconds versus 2–3 minutes manually.
• Accuracy: Servo motors position arms within ±2mm, aligning perfectly with forklift tines.
• Ergonomics: Eliminates physical strain, reducing worker fatigue and injury risks.
• Scalability: Multiple layers can operate simultaneously via centralized control panels.

Premium models even offer voice activation or gesture controls, catering to hands-busy scenarios.

Real-World Impact: Case Studies in Automation

Case 1: Aerospace Component Supplier
A Tier-1 aerospace vendor struggled with storing 7-meter titanium alloy rods. Static racks caused frequent handling damage. After deploying smart electric racks with 6T layers and anti-vibration dampers:

• Damage rates dropped 90%.
• Retrieval accuracy improved to 99.8%.
• Labor costs fell 25% due to faster cycles.

Case 2: Municipal Infrastructure Depot
A city public works department needed outdoor storage for corrosive sewer pipes. Galvanized smart racks with IP65-rated motors handled harsh conditions while enabling night-time automated restocking. Result: 40% more pipe capacity and 24/7 operational readiness.

Integration with Industry 4.0 Ecosystems

Smart racks don’t operate in isolation. They plug into broader digital frameworks:

• WMS Sync: Automatically update stock levels upon material removal.
• AGV Coordination: Signal autonomous forklifts when arms are extended.
• Energy Management: Schedule operations during off-peak electricity hours.

Such interoperability turns storage zones into data-rich nodes, fueling continuous improvement initiatives.

Addressing Security and Safety Concerns

Automation raises valid questions about security and fail-safes. Modern smart racks address these via:

• Access Controls: Biometric or RFID authentication restricts operation to authorized personnel.
• Emergency Stops: Redundant E-stop buttons halt all motion instantly.
• Overload Protection: Sensors disable extension if weight exceeds rated capacity.
• Cybersecurity: Encrypted communications prevent unauthorized remote access.

These measures ensure that convenience never compromises safety.

Cost-Benefit Analysis: Is Smart Worth It?

Critics cite higher upfront costs (30–50% over manual racks). Yet total cost of ownership tells a different story:

• Labor Savings: 20–30% reduction in handling time translates to significant wage savings.
• Space Monetization: Freed-up area generates revenue via expanded production or leasing.
• Damage Reduction: Fewer incidents mean lower insurance premiums and replacement costs.
• Longevity: Premium materials and predictive maintenance extend lifespan to 15+ years.

Most users achieve ROI within 18–24 months, making smart racks a financially sound investment.

Future Horizons: AI and Beyond

Next-gen smart racks will harness AI for dynamic slotting—automatically assigning materials to optimal layers based on turnover rates. Swarm robotics could see multiple racks coordinating movements autonomously. Meanwhile, sustainable designs incorporating recycled steel and solar-powered motors will align with net-zero goals.

In conclusion, the Smart Electric Telescopic Cantilever Rack is more than a storage unit; it’s a catalyst for operational excellence. By fusing indomitable strength with cerebral automation, it empowers industries to conquer complexity with elegance. For forward-thinking enterprises, the path to warehouse supremacy begins with a single, intelligent extension.

Sheet metal is a vital component in a wide range of industries, including automotive, aerospace, construction, electronics, and machinery. However, storing sheet metal effectively can be a challenge, especially for businesses that handle large volumes of different sizes, thicknesses, and materials. Poor storage solutions can lead to material damage, space inefficiency, safety hazards, and increased operational costs. That’s where we come in—our team of experienced engineers and manufacturing experts works closely with you to develop a customized Manufacturing Plant Sheet Storage System that addresses your specific challenges and helps you achieve your operational goals.

As a Sheet Metal Storage Racks Manufacturer, we understand that every business has unique storage needs. There is no one-size-fits-all solution when it comes to sheet metal storage, which is why we offer a wide range of customizable racking systems, including Heavy Duty Sheet Metal Racking System, drawer-type metal sheet racks, vertical sheet metal storage racks, and more. Our China Professional Manufacturing Drawer Type 8 Layers Metal Sheet Racks Shelves with Door Frame is one of our most popular products, designed to provide secure, organized, and accessible storage for smaller sheet metal components and parts.

Quality is at the core of everything we do. We use only the highest-grade materials in our manufacturing processes, including high-strength steel, which ensures that our sheet metal storage racks are durable, robust, and able to withstand the rigors of industrial environments. Our manufacturing facilities are equipped with state-of-the-art machinery and technology, allowing us to produce racking systems with precise dimensions, smooth finishes, and reliable performance. We also implement strict quality control measures throughout the manufacturing process, from material selection and cutting to welding and assembly, to ensure that every product meets our high standards and exceeds our clients’ expectations.

One of the key advantages of choosing us as your Sheet Metal Storage Racks Manufacturer is our ability to provide fully customized solutions. We don’t just sell pre-made racking systems—we work with you to design a system that fits your warehouse layout, accommodates your sheet metal inventory, and integrates seamlessly with your existing material handling processes. Our team starts with a detailed consultation to understand your specific needs, including the types of sheet metal you store, their sizes and weights, your warehouse space constraints, and your production workflow. We then use advanced design software to create a 3D model of the racking system, allowing you to visualize the final product before manufacturing begins. This collaborative approach ensures that the final solution is tailored to your exact requirements and delivers maximum value for your investment.

Our Heavy Duty Sheet Metal Racking System is designed for businesses that handle large, heavy sheets of metal. This system features reinforced frames, heavy-duty shelves, and secure locking mechanisms that can support thousands of pounds of sheet metal per rack. It is ideal for manufacturing plants that need to store large volumes of sheet metal in a space-efficient manner, as it utilizes vertical space to maximize storage capacity while keeping materials easily accessible. The Heavy Duty Sheet Metal Racking System also includes features such as protective coatings to prevent corrosion, smooth surfaces to avoid material damage, and adjustable shelves to accommodate different sheet sizes.

For businesses that need to store smaller sheet metal components or parts, our China Professional Manufacturing Drawer Type 8 Layers Metal Sheet Racks Shelves with Door Frame is the perfect solution. This drawer-type system features 8 layers of drawers, each with a door frame for added security and protection. The drawers are designed to slide smoothly, allowing for easy access to stored items, and they can be customized to accommodate different sizes and weights of sheet metal. The door frame helps keep dust, moisture, and other environmental factors out, protecting your sheet metal from damage and ensuring it remains in pristine condition.

In addition to our standard product line, we also offer custom Manufacturing Plant Sheet Storage System solutions for businesses with unique requirements. Whether you need a racking system that can handle irregularly shaped sheets, a mobile storage system for increased flexibility, or an automated system that integrates with your ERP or WMS software, we have the expertise to design and manufacture a solution that meets your needs. Our team of engineers is constantly innovating, staying up-to-date with the latest industry trends and technologies to ensure that our products are at the forefront of sheet metal storage innovation.

As a Sheet Metal Storage Racks Manufacturer, we also prioritize customer support. We understand that investing in a sheet metal storage system is a significant decision, and we want to ensure that you have a positive experience from start to finish. Our team provides comprehensive support throughout the entire process, from initial consultation and design to installation and after-sales service. We offer detailed installation instructions, training for your staff, and prompt technical support to address any issues or questions you may have. We also provide maintenance services to help keep your racking system in optimal condition, ensuring long-term performance and reliability.

Another important aspect of our business is our commitment to sustainability. We recognize the importance of reducing our environmental impact, and we strive to incorporate sustainable practices into every aspect of our operations. We use recyclable materials in our manufacturing processes, minimize waste, and implement energy-efficient technologies to reduce our carbon footprint. Additionally, our sheet metal storage systems are designed to help our clients reduce waste and improve efficiency, which contributes to their sustainability goals as well. By choosing us as your Sheet Metal Storage Racks Manufacturer, you can feel confident that you are partnering with a company that cares about the environment.

When it comes to choosing a Sheet Metal Storage Racks Manufacturer, there are many factors to consider—quality, customization, customer support, sustainability, and price. We believe that our commitment to these values sets us apart from the competition. Our high-quality products, customizable solutions, comprehensive customer support, and sustainable practices make us the ideal partner for businesses looking to optimize their sheet metal storage and inventory management. Whether you need a Heavy Duty Sheet Metal Racking System, a drawer-type system, or a custom Manufacturing Plant Sheet Storage System, we have the expertise and experience to deliver a solution that meets your needs and exceeds your expectations.

In today’s fast-paced manufacturing environment, efficiency and productivity are more important than ever. A well-designed sheet metal storage system can help you reduce waste, improve access to materials, optimize space utilization, and enhance safety—all of which contribute to increased productivity and reduced costs. As a leading Sheet Metal Storage Racks Manufacturer, we are dedicated to helping our clients achieve these goals with our high-quality, customizable storage solutions. Contact us today to learn more about our products and services, and let us help you transform your sheet metal storage and inventory management practices.

The rack’s construction is built to withstand demanding environments, with high-strength carbon steel providing structural integrity. The smooth rail system, equipped with high-precision ball bearing guide rails, ensures effortless drawer movement even under full load. Safety is prioritized with sliding guide rails and foot roll protection devices that prevent accidental slips or overturning.

Customization options are extensive, including the number of drawers (3-10), shelf height, and overall dimensions. The optional board auxiliary device makes storing and retrieving boards of different sizes softer and more precise. For industries like rail, manufacturing, and maintenance operations, this rack provides improved material accessibility and increased floor space .

The rack’s design also includes clearly labeled safety markings, such as pinch-point warnings and maximum load indicators, supporting OSHA-aligned best practices. Professional after-sales support and exclusive one-on-one service are available to ensure your needs are met. The delivery cycle is 30 days, with on-site installation and online guidance provided. A dedicated quality inspection team conducts thorough checks, with testing records kept for each batch to ensure accountability.

This rack is engineered for high-capacity industrial storage, featuring multiple full-length sliding drawers and a powder-coated finish for durability. It’s perfect for industries that handle large fabricated components, long materials, or rotation-based parts, where safety and efficiency are paramount.

The Limitations of Conventional Storage
Before appreciating the solution, one must understand the problem. Conventional storage for plates and sheets typically involves A-frame racks, vertical racks, or simple stacking. These methods have critical flaws:

1. Poor Space Utilization: They often waste vertical space or create unusable floor space aisles.
2. Dangerous Access: Retrieving anything but the top or front item is hazardous, requiring manual handling or equipment maneuvering that risks product damage and worker injury.
3. Lack of Flexibility: Fixed shelves cannot adapt to changing inventory sizes or shapes.
4. Material Damage: Scratching, bending, and edge damage are common due to friction and improper support.

An Adjustable Metal Plate Storage System is engineered to systematically eliminate every one of these drawbacks.

Anatomy of an Adjustable, High-Capacity System
This system is a symphony of heavy-duty engineering and intelligent design. At its core, it is a Large Load Capacity Warehouse Storage Rack built from high-grade steel. The “adjustable” aspect is multi-faceted, offering unparalleled flexibility:

• Layer Adjustment: The system allows for Customized Layers. You are not confined to standard offers; configurations can be tailored as 5+1, 6+1, 8+1, 10+1, or any other combination to match your stock-keeping unit (SKU) profile. The Single Layer Height is adjustable between 220-300mm, allowing you to store thin aluminum sheets and thick steel plates in adjacent drawers of the same unit.
• Load Capacity Customization: This is not a one-weight-fits-all system. The Customized Load-Bearing Capacity is a key feature, with each shelf or drawer engineered to support a specific weight, from 1 ton up to 20 tons. This means you pay for and build exactly the strength you need, ensuring economic efficiency and structural appropriateness.
• Spatial and Dimensional Tailoring: The entire frame can be manufactured to house specific Plate Sizes, whether standard (6000x2000mm, 4000x1500mm, etc.) or completely custom. This ensures a perfect fit for your materials, eliminating overhang or wasted drawer space.

The Roll-Out Drawer: Heart of Efficiency
The most impactful feature in many configurations is the Warehouse Roll Out Steel Plate Rack mechanism. Each layer is essentially a heavy-duty drawer on a premium Smooth Rail System equipped with ball-bearing guides. This allows for 100% Accessibility & Efficiency. When a drawer rolls out, every stored item is fully exposed and accessible. This eliminates the “digging” effect, saving up to 70% in retrieval time. The extension can be Manual Pulling for standard operations, or upgraded to Electric Extension for heavy-duty, high-frequency, or ergonomic applications, making the retrieval of a 20-ton load as simple as pressing a button.

Uncompromising Focus on Safety and Protection
A safe warehouse is a productive warehouse. These systems are designed with an integrated safety-first philosophy.

• Product Safety: The Maximum Material Protection is achieved through continuous trays with inclined plastic supports. These cradles prevent sheets from lying flat, reducing surface contact and preventing scratches and slips. This is critical for maintaining the quality and value of sensitive materials.
• Operator Safety: Safety Against Overturning is built-in. Systems include positive locking mechanisms in both the closed and fully extended positions, along with anti-tip and roll protection devices. This ensures a drawer loaded with tons of metal cannot accidentally disengage or fall, protecting nearby personnel.
• Structural Safety: As a Detachable Durable Warehouse Storage System, it is built for long-term reliability. The high-strength carbon steel construction and robust welding ensure structural integrity under Extreme Load Capacity. Furthermore, a Corrosion Protection Sheet Metal Storage Rack is achieved through a high-quality powder-coated finish, defending against rust and wear in harsh industrial environments.

Customization and Professional Integration: Your System, Your Way
The true power of this system lies in its adaptability. Beyond physical dimensions, you can choose a Custom Color to color-code departments, match corporate branding, or improve visual management. The process is supported professionally from start to finish:

1. Consultation & Design: Experts work with you to understand needs and provide Free Design Drawings.
2. Certified Manufacturing: Production follows stringent guidelines verified by ISO9001 and CE Certificates.
3. Rigorous Inspection: Every component undergoes item-by-item inspection, with traceable quality records.
4. Secure Delivery & Installation: After secure packaging, the system is delivered (typical Delivery Cycle: 30 Days) and installed via On-Site Installation or detailed Online Guidance.

The Bottom Line: A Tangible Return on Investment
Implementing an Adjustable Metal Plate Storage System delivers measurable ROI:

• Space Savings: Vertical, high-density storage can reduce the floor footprint required for plate storage by over 50%.
• Time Savings: 70% faster retrieval translates directly into higher labor productivity and shorter lead times.
• Damage Reduction: Eliminating scratches and bends reduces material waste and rework costs.
• Safety Improvement: Reducing manual handling and forklift traffic in storage aisles lowers the risk of costly accidents.
• Improved Inventory Control: Organized, visible storage makes inventory counting and management significantly easier.

In conclusion, for any operation storing metal plates, panels, or similar heavy, flat materials, an Adjustable Metal Plate Storage System is not just an upgrade—it’s a fundamental re-engineering of the storage process. It combines brute strength with intelligent design and flexible customization to create a safer, more efficient, and more organized warehouse environment, proving itself as a critical asset in the pursuit of operational excellence.

At its core, this cantilever rack solves the age-old dilemma of storing long, irregular, or heavy items without sacrificing accessibility or safety. Traditional racks force compromises: either leave wide aisles for forklift maneuvering (wasting space) or risk damaging goods during extraction. This system eliminates both problems through telescopic, foldable arms that extend only when needed and collapse flush when idle—freeing up to 70% of aisle space.

Constructed from high-grade Q235 steel, the rack supports 3–5 tons per layer across configurations ranging from 6m to 12m in length. The 4+1 layer design (four primary arms plus one auxiliary support) ensures even weight distribution and prevents tip-over, even with unevenly loaded pipes or sheets. Bilateral models (like HC-G9055D) offer symmetrical support for balanced loads, while unilateral versions (HC-G9055S) suit space-constrained corners.

What truly distinguishes this system is its dual-mode operation:

• Manual: A precision gear hand crank allows effortless extension with minimal physical effort—ideal for SMEs or backup scenarios.
• Electric: A waterproof remote control enables one-touch layer selection from up to 30 meters away, perfect for large warehouses or hazardous zones.

This flexibility makes the rack suitable for diverse applications:

• Construction: Storing rebar, scaffolding tubes, or timber beams
• Plumbing: Organizing PVC, copper, or HDPE pipes by diameter
• Metalworking: Managing steel angles, I-beams, or rolled sheet metal
• Renewables: Holding wind turbine blades or solar racking components

Every unit is CE marked and ISO9001 certified, with documentation covering structural integrity, load testing, and safe working loads. The powder-coated finish resists rust, abrasion, and chemical splashes—ensuring longevity even in outdoor or semi-exposed yards.

From an ROI perspective, clients report 20–40% gains in storage density, 50% faster order fulfillment, and near-zero product damage due to controlled, supported handling. One Australian mining supplier eliminated three forklift operators after automating retrieval with the electric version—paying back the investment in under 14 months.

Installation is straightforward, with pre-assembled columns and snap-in arms reducing setup time by 60%. Customization options include laser-cut labels, integrated lighting, or IoT sensors for real-time occupancy monitoring.

In a world where warehouse efficiency dictates market competitiveness, the Racks Cantilever – Electric Manual Remote Control Foldable Heavy-Duty Steel Pipe Sheet Storage Rack isn’t just equipment—it’s a strategic enabler. Backed by global certifications and proven in thousands of facilities worldwide, it represents the gold standard in intelligent, space-saving industrial storage.

When space is tight and materials are heavy, traditional shelving falls short. Enter the Heavy-Duty Steel Foldable Industrial Sliding Drawer-Style Storage Rack—a revolutionary system that combines industrial strength with ergonomic accessibility and modular flexibility.

Designed for workshops handling wood panels, metal sheets, acrylic boards, or composite materials, this rack transforms chaotic storage into an organized, one-person operation. No more climbing ladders, no more forklift bottlenecks—just smooth, linear access to every stored item.

The Power of the Drawer System

Each layer functions as an independent sliding drawer mounted on heavy-duty ball-bearing rails. Even fully loaded with 5–10 tons of material, drawers glide open with minimal force. The anti-pinch design ensures fingers stay safe during operation, while integrated safety stops prevent accidental disengagement.

Unlike fixed shelves, this system allows full front-face access. You see every sheet at a glance, reducing search time and eliminating the “digging through stacks” problem that causes edge damage and workplace injuries.

Built for Real-World Demands

Constructed from reinforced Q345B steel, the frame supports extreme loads without flexing. Standard models include:

• HC-B4015-65: 5T per layer, 4m x 1.5m decks
• HC-B6020-610: 10T per layer, 6m x 2m decks

All welds are inspected per ISO 5817 standards, and the entire structure undergoes dynamic load testing before shipment. The powder-coated surface provides corrosion resistance in humid or oily environments—ideal for metalworking or marine fabrication shops.

Foldable & Space-Optimized

True to its name, select models feature foldable side panels or modular assembly, allowing partial disassembly for transport or reconfiguration. This is invaluable for expanding businesses or multi-site operations that need to relocate equipment.

For facilities with limited floor space, we offer vertical stacking up to 9 layers, reaching heights of 2.5m or more. Pair it with a mobile ladder truck (available as an accessory) for safe top-level access—no permanent scaffolding required.

Human-Centered Features That Boost Productivity

• Label-ready fronts: Insert material specs, batch numbers, or QR codes for digital tracking.
• Custom deck spacing: Adjust layer height based on board thickness (e.g., 20mm vs. 50mm MDF).
• Lifting hooks: Integrated吊 points for crane-assisted loading of extra-heavy bundles.

As a direct manufacturer, we offer zero MOQ—order one unit or fifty. Every rack is CE-marked, ISO 9001-compliant, and backed by global installation support.

This isn’t just shelving. It’s a lean manufacturing tool that reduces labor costs, prevents material waste, and scales with your business.

Pre-Installation: Engineering Review and Site Readiness
A professional install starts with a review. Verify the engineered drawings match the delivered components and your site plan. Ensure the concrete slab meets the required load-bearing specification and is level within a tight tolerance. Assemble a crew with appropriate experience and ensure all necessary tools—including lifting equipment for heavier components—are onsite and in good condition. Layout the entire system footprint on the floor with chalk lines, marking exact positions for upright bases and anchor points. This preparatory rigor prevents costly misalignment later.

Erecting the Primary Structure with Precision
The core structure is built methodically. Professionals often begin by connect[ing] the square tubes at the top between the first two uprights before standing them, ensuring perfect portal alignment. After placing this first frame, they secure it with angle iron cross braces, creating a freestanding, stable bay. The process then expands linearly. Erect the second set of upright columns, connect them via longitudinal angle irons, and immediately install the diagonal braces. This pattern of adding a bay and its connecting bracing is repeated in sequence until all upright columns are erected. A professional tip is to use temporary guy wires to hold the line of uprights plumb during this phase. All connections are made hand-tight to allow for final system alignment.

Mounting Functional Components: Arms and Drive Mechanism
With the backbone stable, install the load-bearing components. Install the welded round tubes onto the uprights, carefully adjust[ing] the spacing for each custom layer. Insert the telescopic arms. In a professional installation process, special attention is paid to ensuring the arms are level and their mounting brackets are square. Next, integrate the extension system. Assemble the chain boxes per instructions. The critical task is to connect the chain boxes and the upright columns as a whole using round tubes to create a rigid drive mount. Then, meticulously connect the two chains and the angle irons between them, ensuring proper chain tension and alignment. This step is crucial for achieving the system’s promised “operation [that] is simple,” whether hand-cranked or electric.

The Critical Phases: Alignment, Torquing, and Anchoring
This is where professional rigor is most apparent. Using precision levels, lasers, and measuring tapes, crews begin adjusting for horizontal and vertical alignment across the entire rack system. This ensures true plumb and level, which is essential for even load distribution and smooth telescopic operation. After leveling, proceed to fasten all screws using calibrated torque wrenches to the exact manufacturer-specified values. This sequential torquing removes all play from the structure. Following structural tightening, begin fixing the anchor bolts. Professionals typically use a certified epoxy or mechanical anchoring system, ensuring the racks are permanently and securely tied to the building’s slab, a non-negotiable safety requirement for industrial cantilever storage racks.

Commissioning, Capacity Testing, and Handover
A professional install is not complete without rigorous commissioning. Conduct a full operational debugging of the system. Test every layer’s extension and retraction via its mode of movement, checking for smooth, synchronized action that perfectly fits tools such as forklifts and cranes. Finally, execute a documented loading test. Methodically load arms to their rated capacity, observing deflection and checking anchor points for any movement. This final step validates the entire installation procedure for heavy-duty telescopic cantilever tube racking systems. Upon successful testing, the system is ready to handle its core mission: to improve space utilization by 200-300%, enabling a single person to manage vast inventories of long materials safely and efficiently, thereby significantly reducing material preparation time.

Unlike conventional racks, our CNC automated storage rack functions as an active participant in manufacturing. It features an automatic loading and unloading system that communicates directly with your CNC controller. When a job is queued, the system retrieves the correct raw sheet, positions it on an exchange table or conveyor, and loads it onto the machine—all within seconds. Post-cutting, finished nests are returned to designated slots, ready for downstream processing.

This level of automation is made possible by a combination of high-precision robotics, AGV logistics, and intelligent software. Material handling time drops by over 70%, allowing operators to focus on supervision and quality control rather than manual lifting.

Structurally, the rack is a marvel of engineering. Built with thick-walled steel profiles and analyzed via Ansys/Simsolid FEA, it supports 3–5 tons per layer (expandable to 6T) across 8–13 levels. Standard platform sizes include 3015, 4015, 4020, 6015, 6020, and 6025mm, but we customize every dimension to fit your shop floor and material portfolio.

The customized styles extend beyond size. Choose from powder-coated finishes in any RAL color, add anti-slip plate supports, or integrate barcode/RFID readers at access points. The system grows with your business—modules can be added later as capacity needs evolve.

Space savings are dramatic. By going vertical, you reclaim valuable floor area for additional machines or assembly stations. In many cases, clients have tripled their storage density without expanding their facility.

Data integration is seamless. Through our warehouse management software (WMS), you gain real-time visibility into:

• Current inventory by material grade and thickness
• Usage trends and reorder points
• Machine utilization linked to material consumption

This intelligence drives smarter purchasing, reduces waste, and accelerates order fulfillment.

As a trusted high standard manufacturer, we back every system with comprehensive support:

• Free conceptual and detailed engineering drawings
• Global on-site installation (we’ve served 15+ countries)
• ISO9001-certified production and CE-compliant design
• Pre-delivery load testing and performance validation

Our Jinan-based factory operates under strict quality gates. Every weld is X-ray inspected where necessary, every moving part tested under load, and every electrical component verified for EMI compliance.

We invite you to experience our commitment firsthand—via virtual tour or physical visit. Let us show you how Automated Warehouse Solutions Customized Styles can turn your warehouse from a cost center into a competitive advantage.

To get started, simply share your:

• Laser cutter model and table size
• Typical sheet dimensions and weights
• Desired automation level (semi-auto vs. full auto)

Our team will respond within 24 hours with a tailored proposal—no obligation, just expertise.

‌Benefits of Roll Out Sheet Storage Racks‌

‌1. Eliminates Material Damage‌

Stacking steel plates leads to surface scratches, dents, and bending due to pressure and friction. This system ensures each sheet rests independently on a drawer, preserving material integrity and reducing waste.

‌2. Maximizes Vertical Space‌

The vertical stratification design transforms storage from a flat layout to a three-dimensional structure. This allows for more materials to be stored in the same footprint, ideal for workshops with limited space.

‌3. Simplifies Material Retrieval‌

• ‌Manual Operation:‌ Hand-cranked drawers enable effortless pulling and pushing.
• ‌Electric Option:‌ One-button start for quick access in high-volume facilities.
• ‌Forklift & Crane Compatibility:‌ Integrates seamlessly with material handling equipment, reducing labor costs.

‌4. Improves Material Utilization‌

By enabling ‌First-In, First-Out (FIFO)‌, this system prevents rust and obsolescence caused by long-term storage. This reduces inventory backlog and ensures materials are used efficiently.

‌5. Customizable Load Capacity‌

Each layer can be designed to withstand ‌3 to 20 tons‌, accommodating lightweight or heavy-duty sheets.

‌6. Personalized Color & Layer Options‌

• ‌Color Customization:‌ Choose from various powder-coat finishes.
• ‌Layer Adjustability:‌ Configure drawers based on sheet size and quantity.

‌Key Specifications‌

• ‌Model Numbers:‌ HC-B3015-63, HC-B4015-63, HC-B4020-65, HC-B6020-66
• ‌Sheet Size (mm):‌ 3000×1500, 4000×1500, 4000×2000, 6000×2000
• ‌Loading per Layer:‌ 5+1 (3t, 3t, 5t, 6t respectively)

‌Structural & Operational Features‌

• ‌Fixed or Door-Arranged Structure:‌ Open-access or closed-type configurations for security.
• ‌Push & Pull Mechanism:‌ Smooth operation with minimal effort.
• ‌Mechanical Drive (Rack & Pinion):‌ Ensures precise movement and durability.
• ‌Lock-in, Lock-out Drawers:‌ Prevents accidental sliding.
• ‌High-quality Powder-coat Paint:‌ Resists corrosion and wear.

‌Why These Racks Are Essential‌

• ‌Frees Up Floor Space:‌ Materials stored vertically, leaving room for other operations.
• ‌Enhances Accessibility:‌ Instant retrieval without manual lifting.
• ‌Improves Safety:‌ Reduces risks of injury from heavy materials.
• ‌Boosts Efficiency:‌ Faster material handling speeds up production.

‌Ideal Applications‌

• ‌Metal Fabrication & Welding Shops‌
• ‌Automotive & Aerospace Manufacturing‌
• ‌Construction & Steel Processing‌
• ‌Warehouses & Distribution Centers‌

‌Conclusion‌

The ‌Roll Out Sheet Storage Racks‌ provide a space-saving, efficient, and safe solution for industrial material storage. By eliminating material damage, maximizing space, and simplifying retrieval, these racks enhance productivity and reduce operational costs.
