Herochu Cantilever Lifter & Steel-Plate Vacuum Lifter Equipment
Custom-built for YOUR workshop • CE / UE / ISO 9001 • From USD 1,699
Every fabricator knows the hidden cost of a scratched 4 × 2 m stainless sheet or the lost hour spent coaxing a 500 kg plate onto a laser bed. Herochu’s Cantilever Lifter Machine, Metal-Sheet Manipulator and Steel-Plate Vacuum Lifter Equipment eliminate both problems in one modular package. Each unit is dimensioned around your existing floor plan and crane rails, so you pay only for the reach, capacity and power source you really need—custom pricing starts at USD 1,699 and includes on-site commissioning.
VacuumMaster Series—One-Operator, Zero-Damage Handling

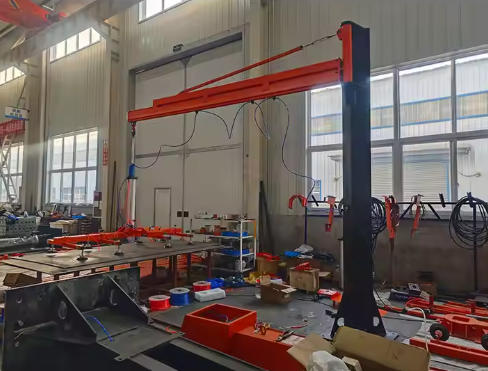

The VacuumMaster combines a column-mounted cantilever crane with a multi-pad vacuum lifter to create a plug-and-produce solution for:
• Steel, aluminium, copper, stone, glass, PVC, acrylic or laminated panels
• 300 mm × 300 mm off-cuts to 6 m × 2.5 m master sheets
• Loads from 100 kg to 500 kg standard and up to 2 t on request
Key engineering highlights
- Secure, damage-free gripping: closed-cell vacuum pads maintain 85 % vacuum (0.85 kgf / cm²) even on oily or slightly uneven surfaces .
- Fail-safe energy: integrated oil-free vacuum pump + accumulator keep the load locked for >15 min after power loss, while audible / visual alarms warn at 60 % vacuum .
- One-hand operation: manual push-pull or wireless remote options mean a single operator can cycle a sheet in <30 s .
- Space-saving footprint: the 360° slewing arm extends 2–5 m from a Ø300 mm concrete base, freeing gantry cranes for die changes .
- Snap-on customization: suction pads slide along a rectangular clamp for 2-, 4-, 6-, 8- or 12-point layouts; swap pads in <2 min to match new sheet sizes .
Model matrix at a glance
| Model | Max. load | Reach (mm) | Pad Ø (mm) | Pads | Weight (kg) | Power options |
|---|---|---|---|---|---|---|
| HC-VCM-250 | 250 kg | 2 000 | 200 | 4 | 80 | AC 220 V / DC |
| HC-VCM-500 | 500 kg | 3 000 | 210 | 6–8 | 150 | AC 220 V |
| HC-VCM-1000 | 1 000 kg | 4 000 | 300 | 10 | 170 | AC 380 V |
| HC-VCM-2000 | 2 000 kg | 5 000 | 300 | 12 | 275 | AC 380 V |
(All dimensions can be lengthened, shortened or wall-mounted on request.)
Typical ROI in three months
• Labor: one operator replaces 2–3 riggers—annual saving ≈ USD 30 k
• Uptime: 24/7 lights-out feeding increases laser/plasma cutting hours by 35 %
• Quality: zero gripper marks or scratches reduce re-work by 18 % on painted or polished sheets
12-month warranty & global support
Herochu systems ship with CE, UE and ISO 9001 certificates, multilingual manuals and remote PLC diagnostics. A network of service partners in 60+ countries guarantees spare-pad delivery within 48 h .
Send a simple sketch of your workshop (or upload photos) and the max sheet size you handle. Our engineers will return a 3-D layout, cycle-time calculation and fixed quotation—starting from USD 1,699—within 24 h.
