In the modern manufacturing landscape, optimizing sheet metal storage and handling processes is critical for enhancing productivity, reducing costs, and ensuring workplace safety. Automatic warehouses for sheet metal storage have emerged as a game-changing solution, integrating advanced robotics, intelligent control systems, and robust structural design to streamline sheet metal management. This article explores the core features, operational advantages, and technical specifications of these innovative storage systems.
System Architecture: Integration of Core Components

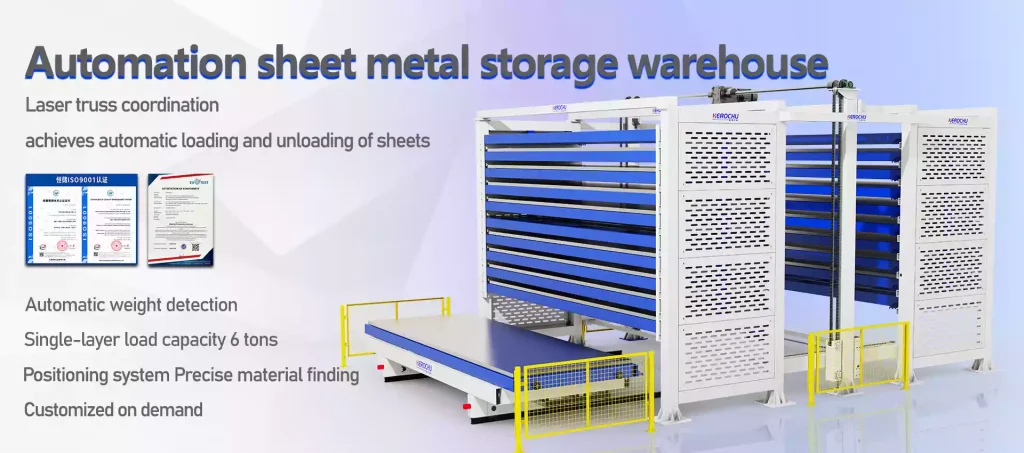

A comprehensive automatic sheet metal storage system is engineered with precision, combining multiple key components to deliver seamless operation. At its core, the system includes a three-dimensional storage warehouse, a bilateral gantry truss, loading and unloading truss manipulators, a double-layer finished material truck, a PLC control system, and an integrated sheet metal automatic production unit with laser cutting machines. This holistic design ensures that every stage of sheet metal handling—from storage to feeding into production lines—is automated and optimized.
One of the standout features of this system is its operational flexibility. Users can effortlessly switch between automatic feeding for two laser machines via the operation box positioned near the laser equipment. Additionally, the system supports 切换 between automatic and manual feeding modes through an intuitive touchscreen interface, making it adaptable to varying production demands and working conditions. This versatility ensures that manufacturers can maintain efficiency even in dynamic operational environments.
Manipulator Excellence: Precision and Adaptability
The manipulators are the workhorses of the automatic storage system, designed to handle sheet metal with unmatched precision and reliability. Equipped with a pneumatic rotating structure, these manipulators can rotate sheets by 90 degrees, easily adapting to both transverse and longitudinal feeding requirements. This rotational capability eliminates the need for manual repositioning, significantly reducing handling time.
Powered by high-speed variable frequency motors, the manipulators boast rapid movement speeds and exceptional repeated positioning accuracy—critical factors for maintaining consistent production quality. To ensure secure gripping, the manipulators utilize vacuum suction cup systems sourced from reputable brands, guaranteeing safety and reliability in every operation. A key advantage of the suction cup design is its adjustability: the relative position of each suction cup can be modified within a specified range, and each cup features an independent control switch. Operators can activate or deactivate individual suction cups via the controller, tailoring the gripping force to the size and weight of different sheet metal pieces.
Operational Advantages: Safety, Efficiency, and Usability
Automatic sheet metal storage warehouses deliver a multitude of benefits that directly impact manufacturing performance. By automating repetitive handling tasks, these systems drastically reduce operator labor intensity, allowing workers to focus on more skilled and value-added activities. This shift not only improves overall production efficiency but also minimizes potential safety hazards associated with manual lifting and maneuvering of heavy sheet metal.
The user-centric design extends to system management and maintenance. All settings, real-time monitoring, and debugging processes can be performed via the touchscreen interface, enabling quick adjustments and troubleshooting. This ease of operation eliminates the need for extensive technical training, making the system accessible to operators of varying skill levels.
Structurally, the system is engineered for simplicity and durability. Its straightforward design ensures easy maintenance, while the use of high-quality components keeps both operational and maintenance costs extremely low. This combination of reliability and cost-effectiveness makes automatic sheet metal storage warehouses a long-term investment that delivers consistent returns.
Technical Specifications: Built for Versatility
To cater to diverse manufacturing needs, these automatic storage systems are available in multiple ，including 3015mm, 4015mm, 4020mm, 6015mm, 6020mm, and 6025mm, ensuring compatibility with common sheet metal sizes. The storage warehouse features 8 to 13 layers, with each layer capable of supporting loads of 3T or 5T, providing ample storage capacity for large-scale production facilities.
In terms of movement, the system employs a linear guide rail and chain combination, driven by efficient chain transmission. This design enables vertical lifting speeds of 9m/min and inlet/outlet speeds of 12m/min, ensuring rapid material flow between storage and production lines. For enhanced customization, optional plate support configurations are available, allowing manufacturers to tailor the system to their specific storage requirements.
Conclusion
Automatic warehouses for sheet metal storage represent a significant leap forward in manufacturing automation, offering a perfect blend of precision, flexibility, and cost-efficiency. By reducing manual labor, improving operational safety, and streamlining material handling processes, these systems empower manufacturers to meet the demands of modern production environments. With their robust design, intuitive controls, and adaptable specifications, they are set to become an indispensable asset for any facility looking to optimize sheet metal management and elevate manufacturing performance.
