Herochu Automatic Tower and Storage Systems for Laser Cutting Machines
Boost Productivity, Slash Downtime, and Reclaim Your Floor Space with One CE-Certified Solution
Running a modern sheet-metal shop means juggling fast turnarounds, razor-thin margins, and a chronic shortage of skilled operators. Herochu’s Automatic Tower and Storage Systems for Laser Cutting Machines eliminate those headaches by turning any standard laser—3015, 4015, 4020, 6015, 6020, or 6025 mm format—into a fully autonomous, lights-out production cell. From the first cut to the last stack of finished parts, this intelligent storage-and-loading solution keeps your laser fed, unloaded, and productive 24/7.
Why Choose Herochu?
- Customizable workshop integration—every tower is engineered around YOUR floor plan, material flow, and ERP data.
- Entry price starts at just US$8,900—an ROI you can justify on a single high-volume job.
- CE, UE, and ISO 9001 certified for global compliance and risk-free audits.
- Two-tow-two loading system—simultaneous loading of raw sheet and unloading of cut parts while the laser keeps cutting.
- Zero production timeouts—linear guide rails and chain drives move sheets at 12 m/min, lifting at 9 m/min so the table changer is ready before the laser head finishes the nest.
The Autonomous Workflow

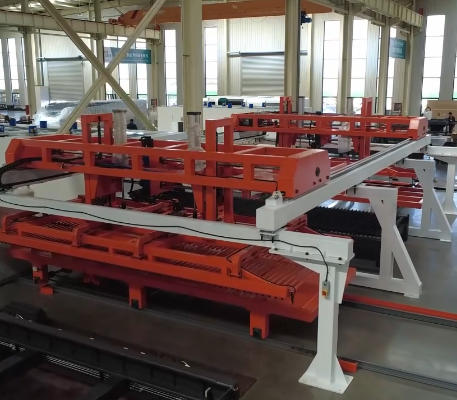

- While the laser is cutting nest A, the tower’s comb extractor lifts the finished sheet from the shuttle table and places it in the processed-material station.
- In the same cycle, a vacuum suction frame pulls the next blank from the correct shelf and positions it on the shuttle table.
- The operator’s only job is to replenish the tower once per shift—Herochu’s HMI tells you exactly which SKU, gauge, and quantity to load next.
The result: up to 85 % reduction in manual handling, 30 % faster average job turnaround, and the freedom to schedule unmanned night shifts without fear of costly collisions or double-sheet pickups.
Tower Specifications
- Standard formats: 3015 / 4015 / 4020 / 6015 / 6020 / 6025 mm (custom sizes available)
- Floors: 8–13 configurable levels
- Load per layer: 3 T or 5 T (select on order)
- Capacity range: 100–5 000 kg per layer
- Chain-driven linear guide rail for ±0.5 mm positioning repeatability
- Vertical lifting speed: 9 m/min
- Inlet/outlet speed: 12 m/min
- Wheel size: 6 in heavy-duty polyurethane rollers
- Wire rope diameter: 6 mm zinc-plated steel for long life
- Surface finish: powder-coated RAL palette, custom colors and logo branding accepted
- Material: structural steel frame, precision-machined components
Smart Stock Management
Every tower is Industry 4.0-ready. Ethernet/IP or OPC-UA interfaces connect directly to your MES/ERP so you can:
- Track raw-sheet inventory in real time
- Sequence nests by remnant utilization
- Auto-reorder stock when the tower hits your minimum threshold
- Generate traceability reports for aerospace or automotive audits
Safety & Service
Herochu towers come with full-height light curtains, interlocked maintenance doors, and Category-3 safety PL-d controls. Remote diagnostics and a two-year global warranty keep you cutting, not waiting. Our technicians speak English, Spanish, and German and can commission a new system in under three days.
Ordering & Customization
MOQ: 1 set
Lead time: 4–6 weeks after drawing approval
Packing: plastic-film protection plus export-grade plywood crate
Logo, color, and PLC brand can all be customized to match your corporate identity.
Stop babysitting your laser. Let Herochu’s Automatic Tower and Storage Systems for Laser Cutting Machines run the night shift for you—delivering more parts, lower labor costs, and perfect stacks ready for the next process. Contact our application team today for a free 3-D layout and ROI calculation tailored to your shop.
