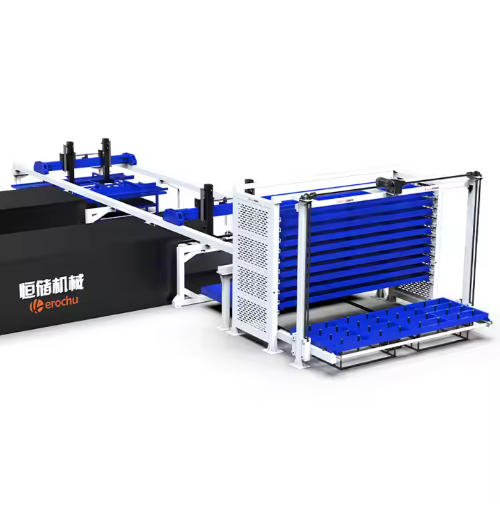

Automatic loading and unloading system for laser cutting machines

Automatic Loading and Unloading for Laser Cutting Machines

The core of this system lies in its gantry loading manipulator, engineered for precision and durability:

Gantry Beam Body: Reinforced steel structure for stability.
High-Torque Servo Lifting: Synchronized motion ensures smooth vertical movement.
Servo Translation Positioning: Sub-millimeter accuracy for consistent material handling.
Automatic Storage/Discharge Rack: Seamless integration with the warehousing unit.
Heavy-Duty Vacuum Suction Cups: Multiple oil-resistant suction cups handle loads of 100-500KG.
SNS Pneumatic System & Safety Protections: Fail-safe mechanisms for operator security.
Omron CNC Control System: Industry-standard precision and reliability.

Automatic loading system for laser cutters

What makes this system exceptional is its ability to handle a wide range of tasks with minimal human intervention. It enables centralized three-dimensional storage of plates, ensuring optimal use of space. Beyond storage, it automates crucial processes such as warehousing, picking, splitting, feeding, and cutting. This full automation of the production workflow brings multiple benefits.

Firstly, it significantly enhances product quality by reducing human errors that can occur during manual operations. Secondly, production efficiency sees a marked improvement as the system operates continuously without the delays of manual handling. Lastly, it helps lower production costs by minimizing labor requirements and optimizing material usage. For manufacturers looking to stay competitive in today’s fast-paced industry, the sheet metal fiber laser storage warehouse is an indispensable solution that combines innovation with practicality.

Automatic loading system for laser cutters

1. High-Speed Automated Feeding

Direct integration with laser cutting machines
Rapid material handling reduces idle time between cuts
Precision positioning ensures consistent sheet placement

2. Compact & Heavy-Duty Design

Small footprint saves valuable floor space
Strong load capacity handles thick metal sheets with ease
Simple mechanical structure for easy maintenance

3. Flexible & Adaptive Operation

Wide rotation angles for material pickup from multiple positions
Compatible with most laser cutter models
Works with manual sheet libraries for hybrid workflows

4. Smart Production Optimization

Standard automatic splitting system for continuous processing
Quick product changeovers reduce setup time
Reduces labor dependency by automating repetitive tasks

Automatic plate storage warehouse

Struggling with disorganized, space-consuming, and labor-intensive metal sheet storage? Welcome to the future of material handling. The Herochu Automatic Metal Sheet Storage Warehouse represents the pinnacle of intelligent, heavy duty storage shelving unit technology, engineered to revolutionize how manufacturers store, manage, and retrieve sheet metal. This isn’t just shelving; it’s a fully integrated, automated storage and retrieval system (AS/RS) designed for maximum efficiency, safety, and cost control.

Automatic two tower platestorage warehouse

Sheet metal automatic storage unit

Automatic Metal Sheet Storage Warehouse Heavy Duty Storage Shelving Unit

Centralized Control, Optimized Efficiency

Gone are the days of sprawling stacks and time-consuming manual searches. The Herochu system provides centralized storage of plates, transforming chaotic workshop corners into streamlined, high-density inventory hubs. Its core intelligence lies in sophisticated PLC and touch screen control, offering operators intuitive command over the entire system. Achieve classified visual management of plates with ease, instantly accessing real-time inventory data, location specifics, and material status.

Profile storage warehouse

Durability and safety are non-negotiable in industrial storage. Herochu’s Industrial Profile Steel Storage Rack System is built with high-grade steel, ensuring the main structure boasts exceptional load-bearing capacity—each layer can support up to 3 tons. This sturdiness guarantees long-term reliability, even in high-traffic, heavy-use environments.

To further validate our commitment to quality, the system is certified by CE, UE, and ISO 9001. These certifications underscore compliance with international standards for safety, performance, and manufacturing excellence, giving you peace of mind that your storage solution meets the highest industry benchmarks.

Comprehensive System Components

The Profile automatic storage unit is more than just racks—it’s a fully integrated system designed for seamless operation. The complete setup includes:

Loading and Unloading Gantry System: Facilitates efficient handling of profiles, reducing manual labor and minimizing the risk of damage during transfer.

Profile Material Racks: Customizable in layers and quantity, these racks provide organized storage for various profile types, from single pieces to bundled stocks.
