Laser cutting has become the gold standard in metal fabrication, offering unparalleled precision, speed, and versatility for cutting sheet metal, long bars, and other metal components. However, the full potential of laser cutting technology can only be realized when paired with an efficient, automated storage and retrieval system. Automated Storage and Retrieval for Laser Cutting is a specialized solution designed to integrate seamlessly with fiber laser and water-jet cutting machines, streamlining the workflow from material storage to cutting and beyond. By automating the storage, retrieval, and delivery of sheet metal to laser cutting machines, this system eliminates bottlenecks, reduces human error, and maximizes the efficiency and precision of the laser cutting process.
In the metal fabrication industry, time is of the essence, and any delay in the material supply chain can have a significant impact on production schedules and customer satisfaction. Laser cutting machines operate at high speeds, but their productivity is often limited by the manual handling of sheet metal—workers must spend hours retrieving the correct material, transporting it to the cutting machine, and preparing it for cutting. This manual process is not only time-consuming but also prone to errors, such as selecting the wrong material, damaging the sheet metal during transport, or misaligning the material on the cutting bed. Automated Storage and Retrieval for Laser Cutting addresses these challenges by automating every step of the material handling process, ensuring that the right material is delivered to the laser cutting machine quickly, accurately, and safely.
At the heart of Automated Storage and Retrieval for Laser Cutting is a sophisticated automated storage system that is specifically designed to work with laser cutting machines. This system typically includes a high-density storage rack, an automated retrieval mechanism (such as a stacker crane or robotic arm), and a control system that integrates with the laser cutting machine’s software. The storage rack is designed to hold sheet metal of various sizes and thicknesses, with customizable shelves that can support heavy loads of up to 8000 kg per shelf. The automated retrieval mechanism uses linear guide rails and chain drives to move smoothly and precisely, retrieving the required sheet metal from the storage rack and delivering it directly to the laser cutting machine’s loading area—eliminating the need for manual transport.
One of the key features of Automated Storage and Retrieval for Laser Cutting is its ability to synchronize with the laser cutting machine’s workflow. The system can be programmed to retrieve the next required material while the laser cutting machine is still processing the current job, ensuring a continuous supply of materials and minimizing downtime. This seamless integration is made possible by the system’s compatibility with ERP and WMS software, which allows for real-time communication between the storage system and the laser cutting machine. Production managers can schedule jobs, track material inventory, and monitor the status of the storage and cutting process from a single interface, ensuring complete control over the entire production workflow.
Another important benefit of Automated Storage and Retrieval for Laser Cutting is its ability to improve the precision of the laser cutting process. Manual handling of sheet metal can lead to misalignment, scratches, or dents, which can affect the accuracy of the cut and the quality of the finished product. Automated storage and retrieval systems eliminate these issues by handling the sheet metal with care, using specialized clamps and supports to ensure that the material is transported and positioned correctly. The system’s precise movement control, with a vertical lifting speed of 9m/min and an inlet/outlet speed of 12m/min, ensures that the sheet metal is delivered to the laser cutting machine with an accuracy of within 2 millimeters—critical for achieving precise cuts and maintaining consistent product quality.
Automated Storage and Retrieval for Laser Cutting also offers significant safety benefits for workers in the metal fabrication shop. Laser cutting machines operate at high temperatures and use powerful lasers, making the surrounding area a hazardous environment for manual material handling. By automating the retrieval and delivery of sheet metal, workers are kept away from the dangerous zone around the laser cutting machine, reducing the risk of burns, cuts, and other injuries. Additionally, the system’s built-in safety features—ensure that the system stops immediately if a worker enters the danger area, further enhancing workplace safety.
Cost reduction is another major advantage of implementing Automated Storage and Retrieval for Laser Cutting. By automating the material handling process, businesses can reduce the number of workers required to manage storage and transport, lowering labor costs. The system also reduces material waste by minimizing damage to sheet metal during handling, and maximizes storage space utilization by using vertical storage—reducing the need for additional warehouse space. Furthermore, the increased productivity and reduced downtime of the laser cutting machine translate to higher output and revenue, making the investment in an automated storage and retrieval system a cost-effective solution for long-term growth.

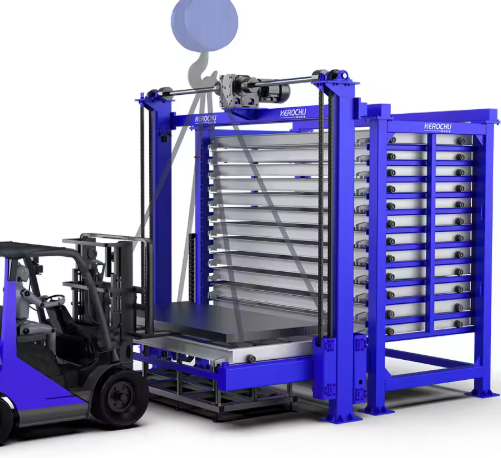

Our Automated Sheet Metal Storage Systems for laser cutting machines are specifically designed to meet the unique needs of laser cutting operations. These systems are customizable to fit a wide range of laser cutting machine models, including fiber lasers and water-jet cutters, and can handle sheet metal of various specifications (3015/4015/4020/6015/6020/6025mm). The systems feature a multi-level racking structure made of high-quality steel, with a load capacity of 3T/5T per layer and customizable floor numbers to maximize storage space. The automated retrieval mechanism uses linear guide rails and chain drives for smooth, precise movement, and the system is controlled by a PLC and touch screen interface for easy operation and monitoring.
To illustrate the impact of Automated Storage and Retrieval for Laser Cutting, consider a metal fabrication shop that specializes in custom sheet metal parts for the automotive industry. Before implementing the system, the shop relied on manual material handling, which required three workers to retrieve and transport sheet metal to the laser cutting machine. This process took an average of 30 minutes per job, leading to significant downtime between jobs. After implementing the automated storage and retrieval system, the shop reduced material handling time to just 5 minutes per job, eliminated the need for two workers, and increased the laser cutting machine’s productivity by 35%. The shop also reported a 12% reduction in material waste due to improved handling, leading to substantial cost savings.
In addition to integrating with laser cutting machines, our Automated Storage and Retrieval for Laser Cutting systems can also be connected to other industrial equipment, such as manipulators, forklifts, and stacker cranes, creating a fully automated production line. This integration allows for a seamless workflow from material storage to cutting, finishing, and packaging, further enhancing productivity and efficiency. The system’s compatibility with ERP and WMS software also allows for real-time inventory management, ensuring that businesses always have the right materials on hand to meet production demands.
When selecting an Automated Storage and Retrieval for Laser Cutting system, it is important to choose a solution that is reliable, durable, and tailored to your specific needs. Our HC-A3015 model is designed with high-quality steel construction, ensuring long-term durability even in harsh industrial environments. The system is adjustable, with a height range of 5-15m, and can be customized to fit your available space and production requirements. It also comes with standard export packaging and a comprehensive warranty, ensuring peace of mind and long-term value.
In conclusion, Automated Storage and Retrieval for Laser Cutting is an essential solution for metal fabrication shops looking to maximize the efficiency, precision, and safety of their laser cutting operations. By automating the material handling process, these systems eliminate bottlenecks, reduce human error, and lower costs, while improving product quality and productivity. As laser cutting technology continues to advance, the integration of automated storage and retrieval systems will become increasingly important for businesses looking to stay competitive in the global metal fabrication market.
