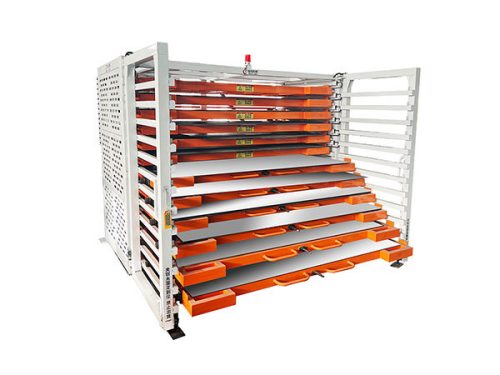

Motorized Drawer Sheet Metal Racking

Motorized Drawer Sheet Metal Racking

Motorized drawer type sheet metal shelving has many advantages in sheet metal management, some of the main ones are listed below:

Automated operation: Motorized drawer type sheet metal racking has an automated operation function, which allows the sheet metal to be taken out from the storage position or stored back to its original position by means of an electro-mechanical system. This reduces the need for labor and improves efficiency.

Sheet protection: Motorized drawer racking protects the sheets and reduces the risk of scratching, damage or bending. Each drawer can be independently controlled to ensure that the sheets are well protected.

Safety: Motorized drawer racks are usually equipped with a safety system to ensure that no one is injured during operation. This increases safety in the workplace.

Highly customizable: these systems can be tailored to specific sheet metal management needs and can accommodate different sizes and types of sheets.

In short, motorized drawer plate racks offer efficient, precise, safe and customizable solutions in sheet metal management that can increase productivity, reduce costs and improve the working environment.

Constant Storage Configuration Table (Board Class) Drawer type Tray Storage Shelf
Project model	HC-B3015-63	HC-B4015-63	HC-B4020-65	HC-B6020-66	Note: Device colors can be customized
Load (single layer)	3t	3t	5t	6t	Customizable
Plate size mm	3000×1500	4000×1500	4000×2000	6000×2000
Number of layers	5+1
The available height of the partition layer is mm	≤ 220
Width when door is opened mm	3515			4015
External dimensions (length x height x width) mm	3505x2280x2000	4505x2280x2000	4505x2280x2500	6505x2280x2500	Determine based on the size of the partition layer
Drawer movement method	Integrated pull-out type
Ground clearance height of the bottom layer	355
Top floor height	2195			2250	Determine based on floor height
Depth pad height	60				Not standard, customizable height
Model description: HC: Constant storage B: Board type
Digital description: For example, HC-B3015-633 meters x 1.5 meters, 6 layers, 3 tons of board

FAQ

Here are some frequently asked questions about our sheet metal racks and pipe storage solutions. We hope you find them helpful!

Q1: Can I request a custom size or color?
Absolutely. We offer complimentary design services and deliver efficient, tailored solutions to meet your specific requirements.

Q2: Are you a manufacturer or a distributor?
We are a direct manufacturer with over 15 years of industry experience and expertise.

Q3: Is there a minimum order quantity?
No. We welcome orders of any size, starting from a single unit.

Q4: How can I get detailed product information?
Click the “Get a Quote” button to receive product images, detailed specifications, and videos. Our team is always ready to assist.

Q5: How do I provide my storage rack requirements?
Simply share the type, dimensions, and quantity of materials you plan to store, along with any other specific needs. We will develop a professional storage solution for you. Alternatively, leave your contact details for a personalized consultation.

Q6: Do you offer automated loading systems or robotic arms?
Yes. We provide loading robotic arms and integrated loading/unloading systems tailored to your laser cutting machine’s table size and material handling method (e.g., board rack, exchange platform, or material warehouse). Contact us with your details for a customized proposal.

Q7: Do you provide on-site installation and debugging?
Yes. Our technicians can travel to your facility for installation and debugging, ensuring successful operation. We have served clients globally, including in the USA, South Korea, Russia, Qatar, Mexico, South Africa, Egypt, and Lebanon.

Q8: How do you ensure product quality?
Our quality assurance includes:

A team of over 40 technical engineers for professional debugging and support.
A dedicated quality control department compliant with ISO9001 standards.
CE certification for all exports.
Rigorous load testing before shipment to ensure structural safety and reliability.

Q9: Where is your factory located?
Our modern 10,000-square-meter manufacturing facility is located in Jiyang Industrial Park, Jinan, Shandong, China.

Q10: How can I evaluate your company’s capabilities?
We offer virtual video factory tours and warmly welcome on-site visits.

Q11: What does your company specialize in?
Jinan Constant Storage Machinery Manufacturing Co., Ltd. is a high-tech enterprise specializing in the R&D, production, sales, installation, and service of intelligent storage solutions. Our product range includes sheet material warehouses, drawer-style shelves, cantilever racks, servo manipulators, gantry loaders, and fully automated handling systems. Supported by a skilled technical team and advanced equipment, we are committed to delivering high-performance storage products and solutions to customers worldwide.
